Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

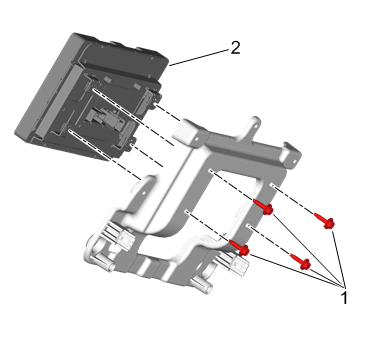

    Fig 1: Driver Information Display
    GM4632429Courtesy of GENERAL MOTORS COMPANY
  1. Driver Information Display - Install
    2. CAUTION:

    Fastener Caution

  2. Radio Control Bolt - Install and tighten 2.5 N.m (22 lb in)
    3. Fig 2: Radio Control Bracket
    GM4632422Courtesy of GENERAL MOTORS COMPANY
  3. Radio Control Bracket - Install
  4. Radio Bracket Bolt - Install and tighten 1.5 N.m (13 lb in)
  5. Connect the electrical connectors.
    6. Fig 3: Radio Control Bolts And Instrument Panel Accessory Bezel
    GM4632417Courtesy of GENERAL MOTORS COMPANY
  6. Instrument Panel Accessory Bezel - Install
  7. Radio Control Bolt - Install and tighten 2.5 N.m (22 lb in)
    8. Fig 4: Instrument Panel Accessory Bezel
    GM4632413Courtesy of GENERAL MOTORS COMPANY
  8. Instrument Panel Accessory Bezel - Install
