Disc Player Replacement (With IOB)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

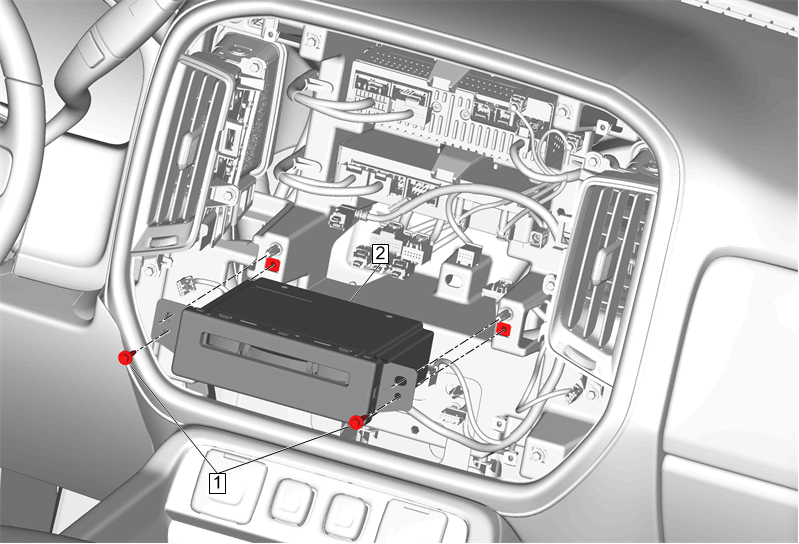

| Callout | Component Name |
|---|---|
| Preliminary Procedure Driver Information Display Replacement |
|
| 1 | Disc Player Bolt
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Disc Player Procedure Disconnect the electrical connectors. |
