Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

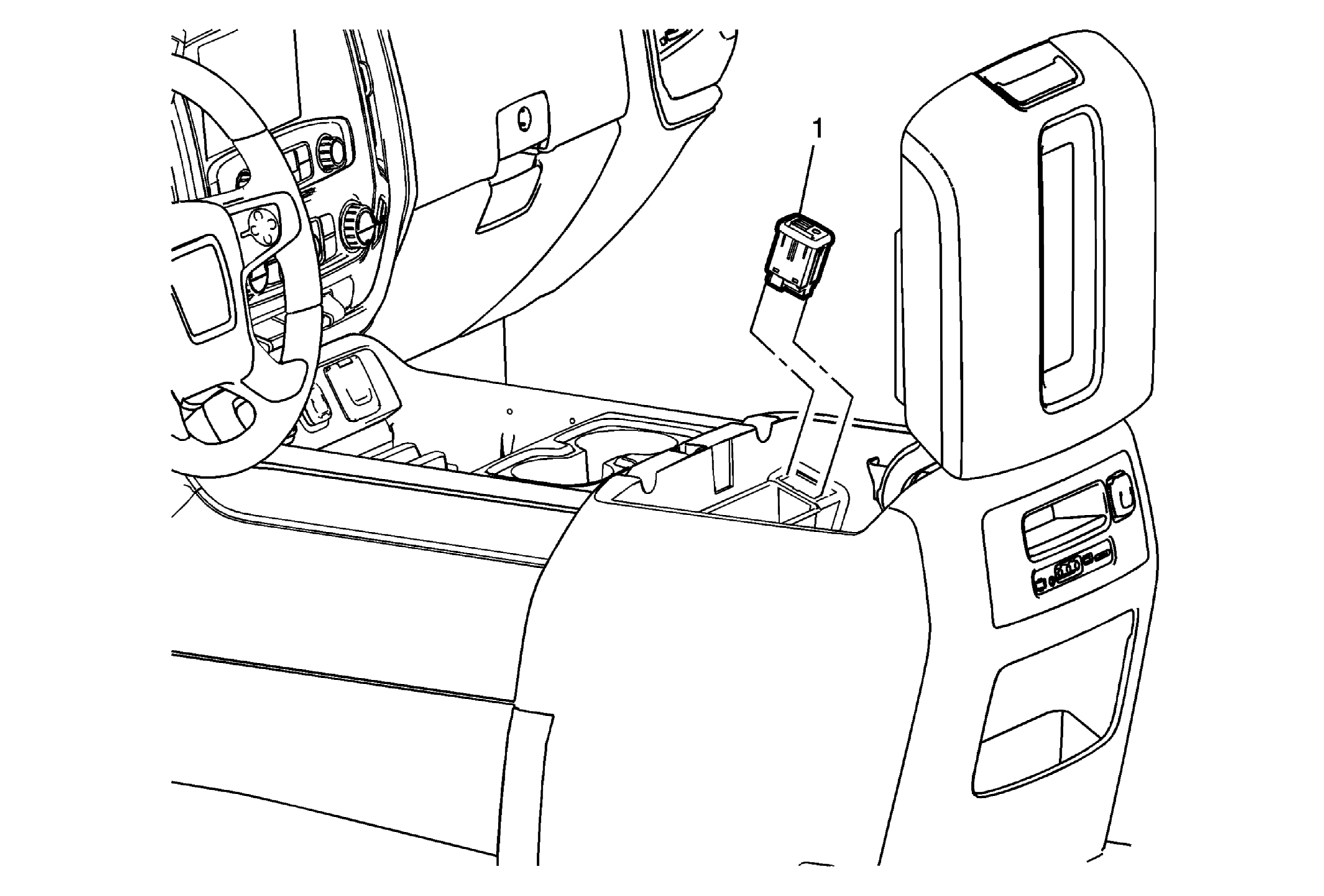

Fig 1: USB Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Audio Disc Player and USB and Auxiliary In and Memory card Receptacle Procedure Open the front floor console armrest and using a small flat bladed tool, release the receptacle. Disconnect electrical connector.
