Audio Disc Player and USB Receptacle Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

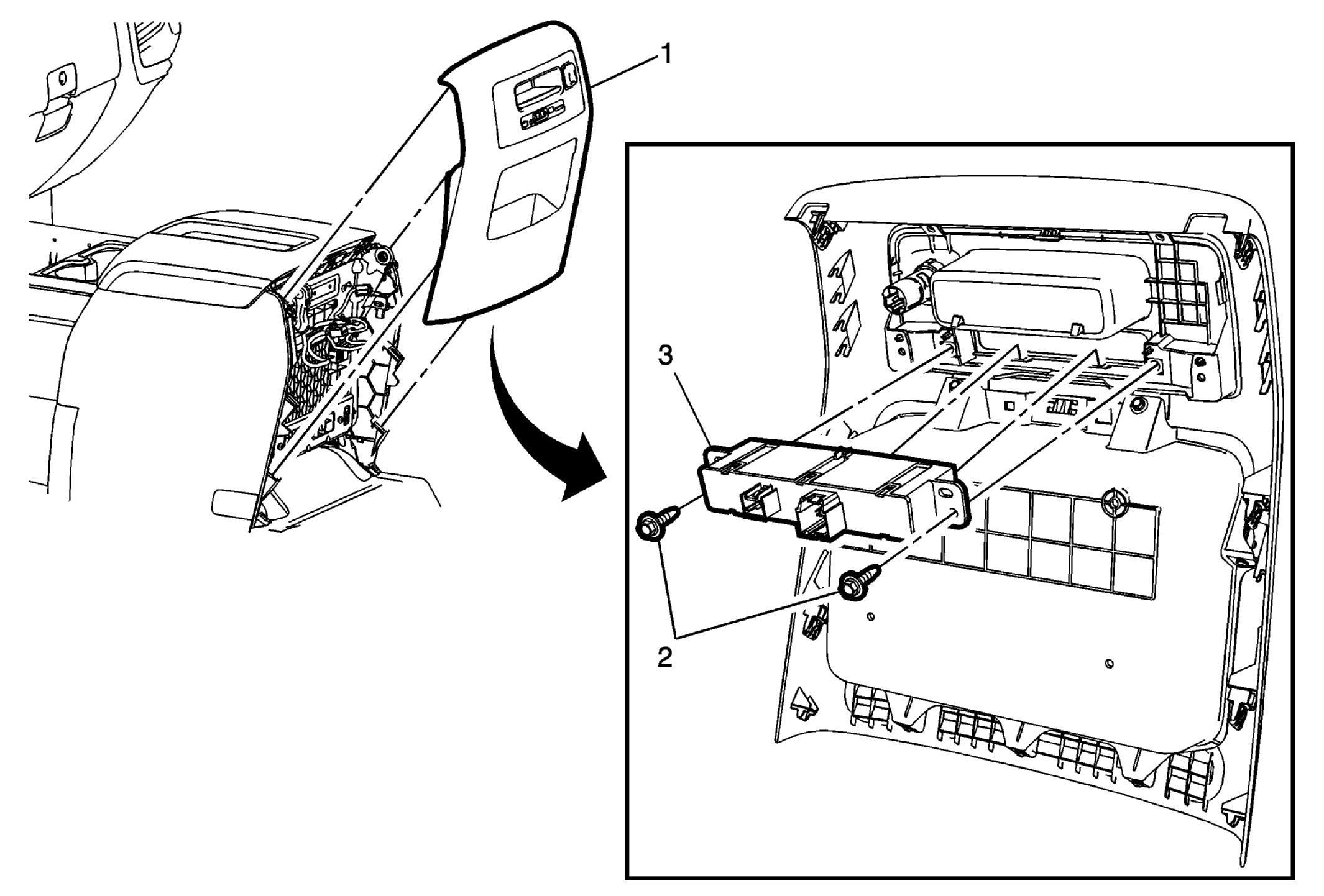

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Rear Trim Panel Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement . |
| 2 | Audio Disc Player and USB Receptacle Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 3 | Audio Disc Player and USB Receptacle |
