Rearview Driver Information Camera Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

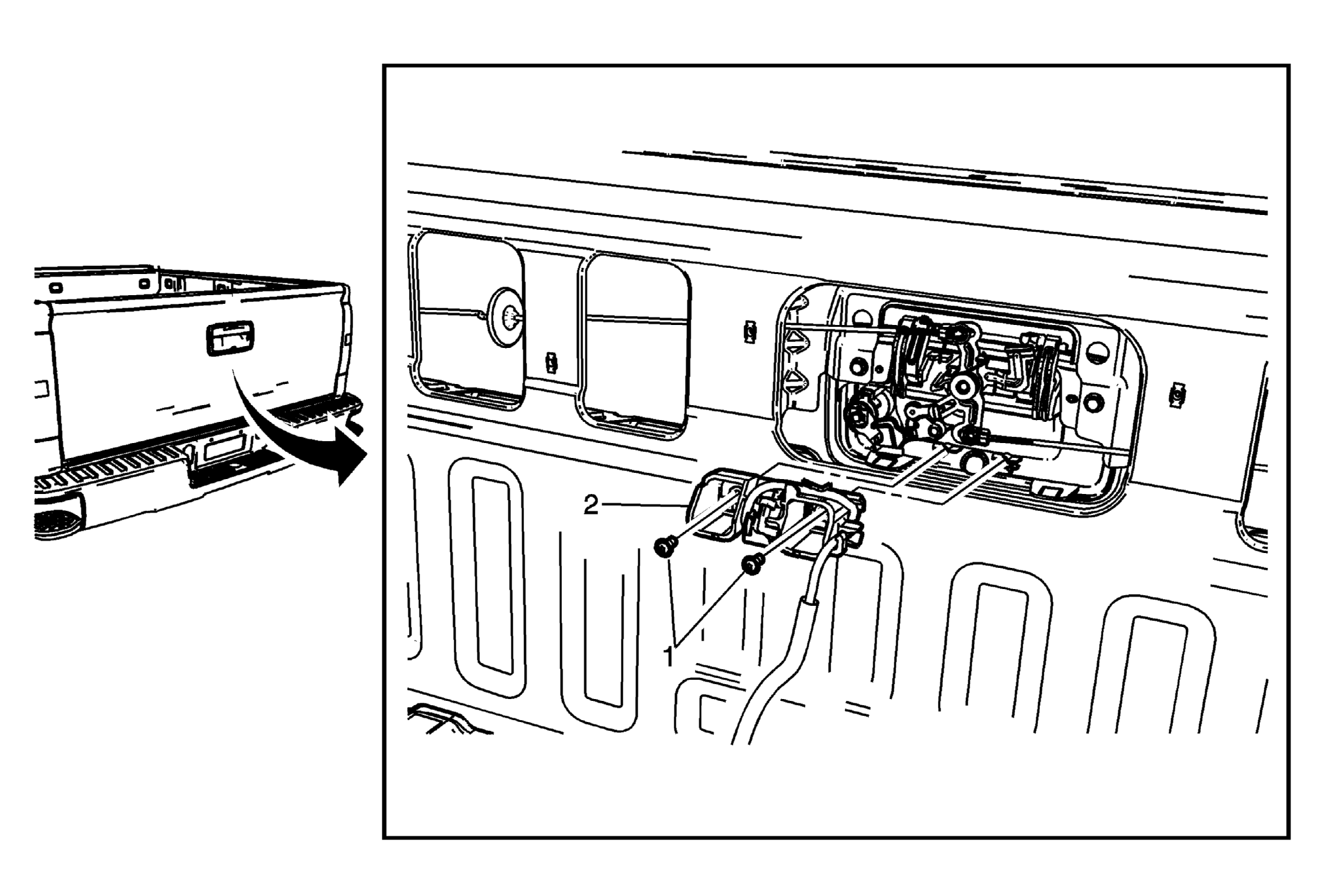

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the pickup box endgate access hole cover panel. Refer to Pickup Box Endgate Access Hole Cover Panel Replacement . |
|
| 1 | Rearview Driver Information Camera Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rearview Driver Information Camera Procedure Disconnect the electrical connector.
NOTE:
The connector is plugged into a junction center under the rear of the pickup box. Attach a leader wire or string to the old connector before removing the harness and use this to route the harness for the replacement camera. |
