Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Paint the front parking assist alarm sensor. Refer to Basecoat/Clearcoat Paint Systems .
- Ensure the paint does not exceed 6 mils. Use a paint thickness gauge suitable for non-ferrous metals. Refer to Paint Gauges .

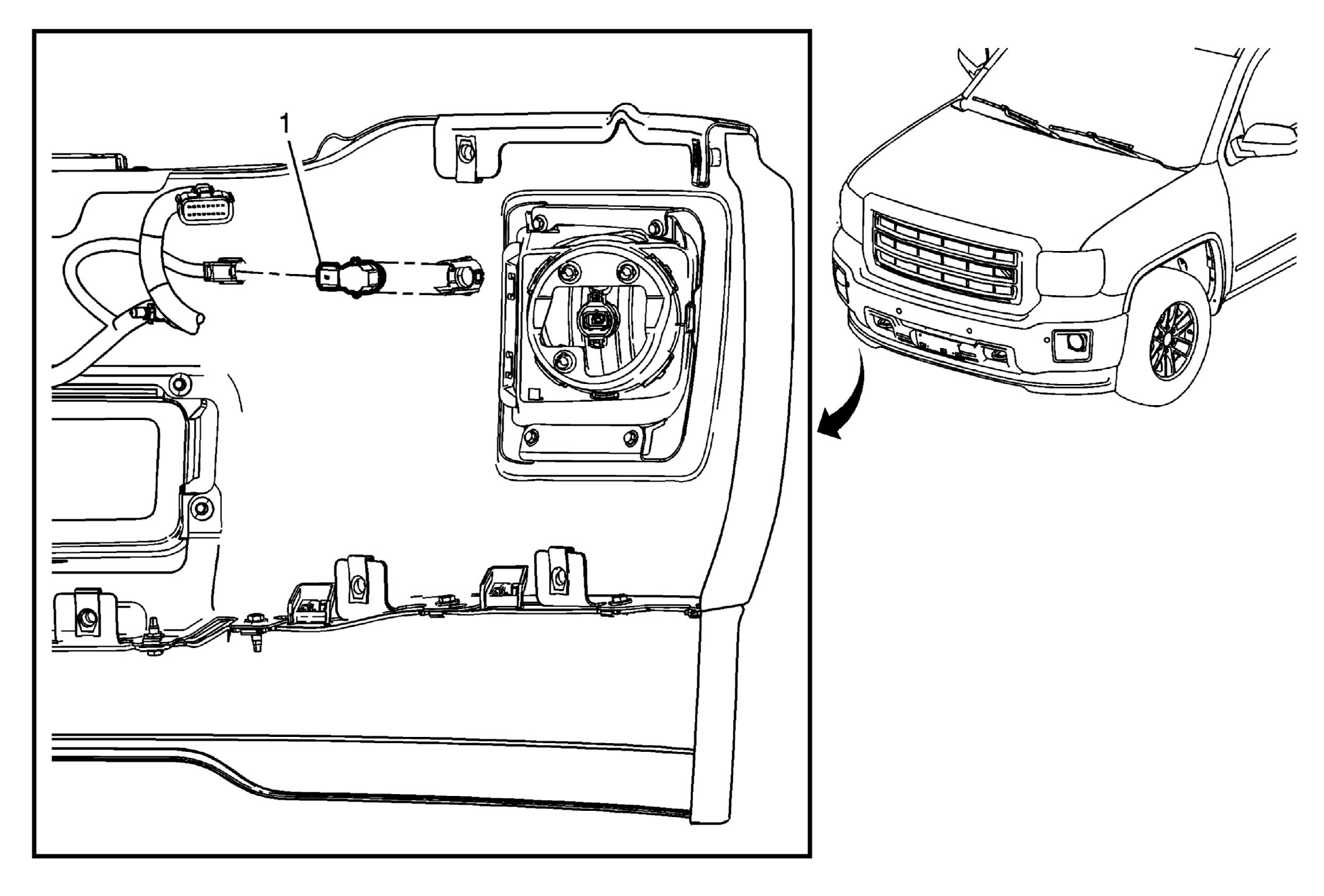

- Insert the front parking assist alarm sensor into the bracket (1).
- Connect the electrical connector to the front parking assist alarm sensor.
NOTE:
Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.
