K20 Engine Control Module X3 (LV1/LV3)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

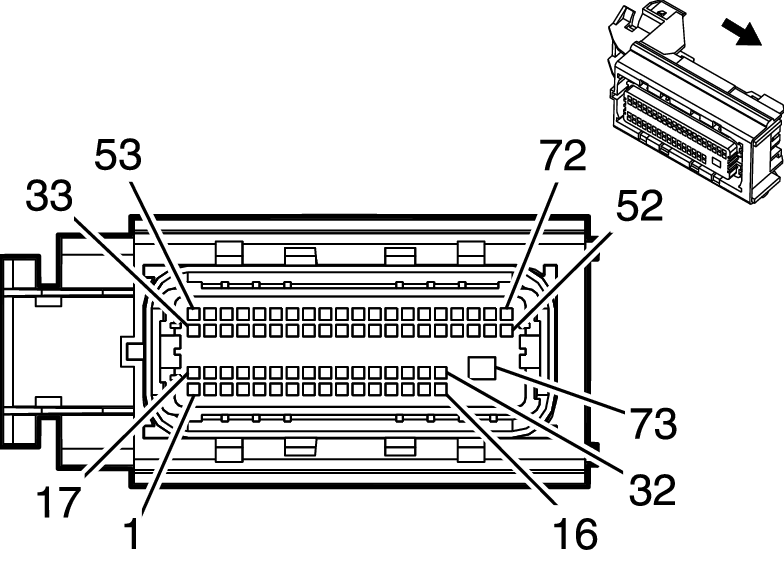

GM3240140
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 33157046
  • Service Connector: 19260918
  • Description: 73-Way F 0.64, 2.8 Series, Sealed (BK with GY Terminal Position Assurance)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575812 J-35616-64B (LT BU) J-38125-213 Not Available Not Available Not Available Not Available
II 13576392 J-35616-4A (PU) J-38125-11A 7116-4152-02 Yazaki 9 A 5
Pin Size Color Circuit Function Terminal Type ID Option
1 0.5 YE/BN 331 Oil Pressure Sensor Signal I -
2 0.5 WH/RD 2705 Oil Pressure Sensor 5V Reference I -
3 0.5 BN/YE 2161 Fuel Rail Pressure Sensor 2 Signal I -
4 - 7 - - - Not Occupied - -
8 0.5 BU 410 Engine Coolant Temperature Sensor Signal I -
9 - - - Not Occupied - -
10 0.5 VT/BU 6270 Crankshaft 60X Sensor 5V Reference I -
11 - 12 - - - Not Occupied - -
13 0.5 BU/WH 2122 Ignition Control 2 I -
14 0.5 GN/BU 2123 Ignition Control 3 I -
15 0.5 BK/GY 2130 Ignition Control Low Reference Bank 2 I -
16 0.75 YE 7301 High Pressure Fuel Pump Actuator High - Control I -
17 0.5 BK/VT 2755 Oil Pressure Sensor Low Reference I -
18 - 23 - - - Not Occupied - -
24 0.5 BK/BN 2761 Coolant Temperature Sensor Low Reference I -
25 0.5 BK/VT 6272 Crankshaft 60X Sensor Low Reference I -
26 0.5 GN 6271 Crankshaft 60X Sensor Signal I -
27 0.5 YE/BU 2124 Ignition Control 4 I -
28 0.5 BU/GY 2125 Ignition Control 5 I -
29 0.5 BN/BU 2126 Ignition Control 6 I -
30 0.5 BU/VT 2121 Ignition Control 1 I -
31 0.5 BK/BU 2129 Ignition Control Low Reference Bank 1 I -
32 0.75 VT/BK 7300 High Pressure Fuel Pump Actuator Low - Control I -
33 0.5 YE/VT 5275 Camshaft Position Intake Sensor 1 I -
34 0.5 GY/BU 5300 Camshaft Position Intake Sensor Control 1 I -
35 - 38 - - - Not Occupied - -
39 0.5 VT/BN 5284 Camshaft Phaser Intake Solenoid 1 I -
40 - 45 - - - Not Occupied - -
46 0.75 GY/BU 4804 Direct Fuel Injector (DFI) High Voltage Control Cylinder 4 I -
47 0.75 GN 4803 Direct Fuel Injector (DFI) High Voltage Control Cylinder 3 I -
48 0.75 GN/VT 4806 Direct Fuel Injector (DFI) High Voltage Control Cylinder 6 I -
49 - - - Not Occupied - -
50 0.75 WH/GN 4805 Direct Fuel Injector (DFI) High Voltage Control Cylinder 5 I -
51 0.75 BU 4802 Direct Fuel Injector (DFI) High Voltage Control Cylinder 2 I -
52 0.75 BN 4801 Direct Fuel Injector (DFI) High Voltage Control Cylinder 1 I -
53 0.5 BK/GN 5301 Camshaft Position Intake Sensor Low Reference 1 I -
54 - 58 - - - Not Occupied - -
59 0.5 BK/BN 6753 Cam Phaser W Low Reference I -
60 - 62 - - - Not Occupied - -
63 0.5 BU 5491 Cylinder Shutoff Solenoid Control 1 I -
64 0.5 GN 5492 Cylinder Shutoff Solenoid Control 2 I -
65 - - - Not Occupied - -
66 0.75 BU/WH 4904 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4 I -
67 0.75 GN/BK 4903 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3 I -
68 0.75 VT 4906 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 6 I -
69 - - - Not Occupied - -
70 0.75 GN/WH 4905 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 5 I -
71 0.75 BN/GN 4902 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2 I -
72 0.75 BN/WH 4901 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1 I -
73 2.5 BK/WH 451 Signal Ground II -
