Rearview Camera (UVC with IO4, IO5 or IO6)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

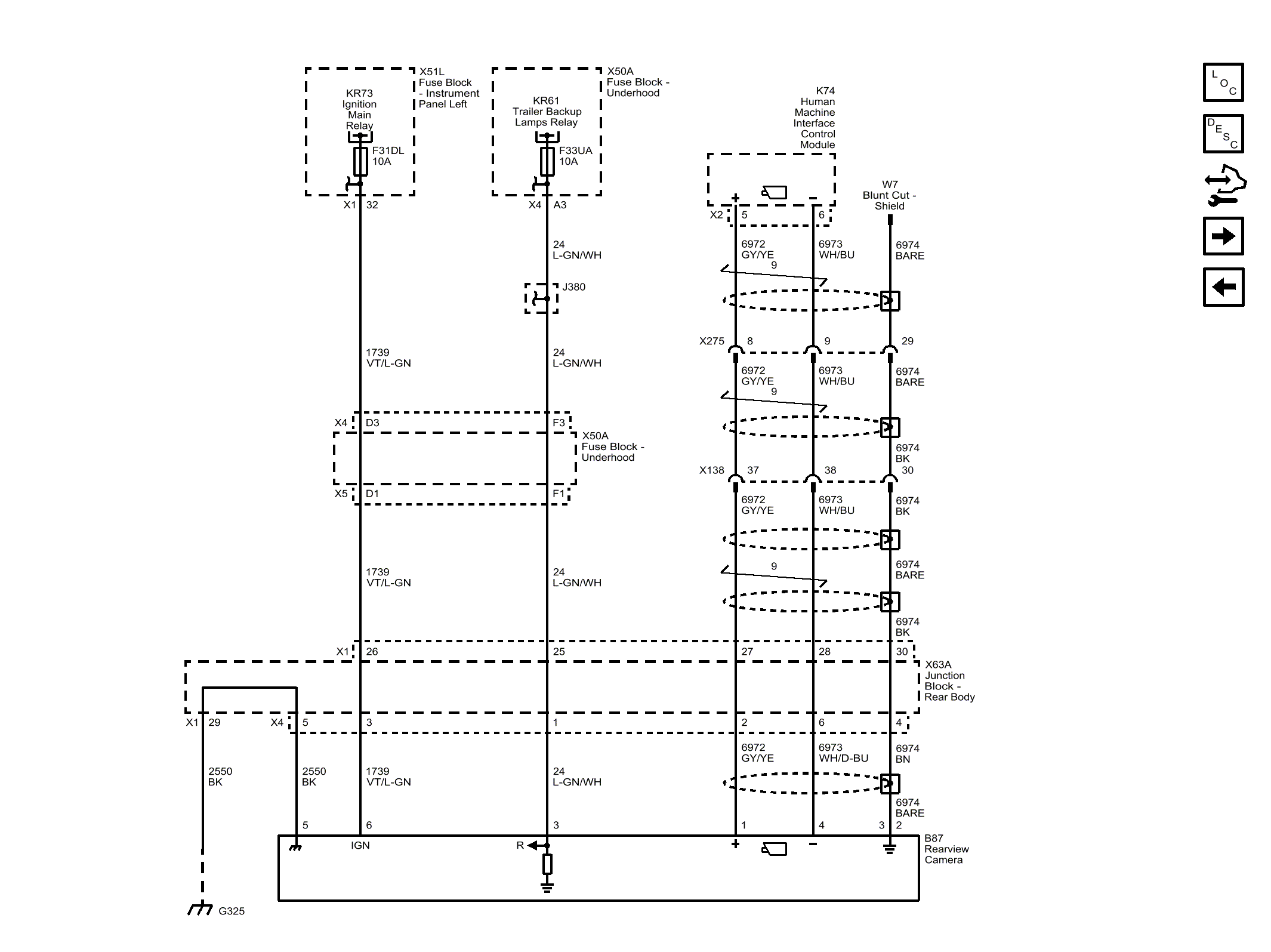

Fig 1: Rearview Camera (UVC with IO4, IO5 or IO6)
GM3619493Courtesy of GENERAL MOTORS COMPANY
