Radio Front Floor Console Speaker Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

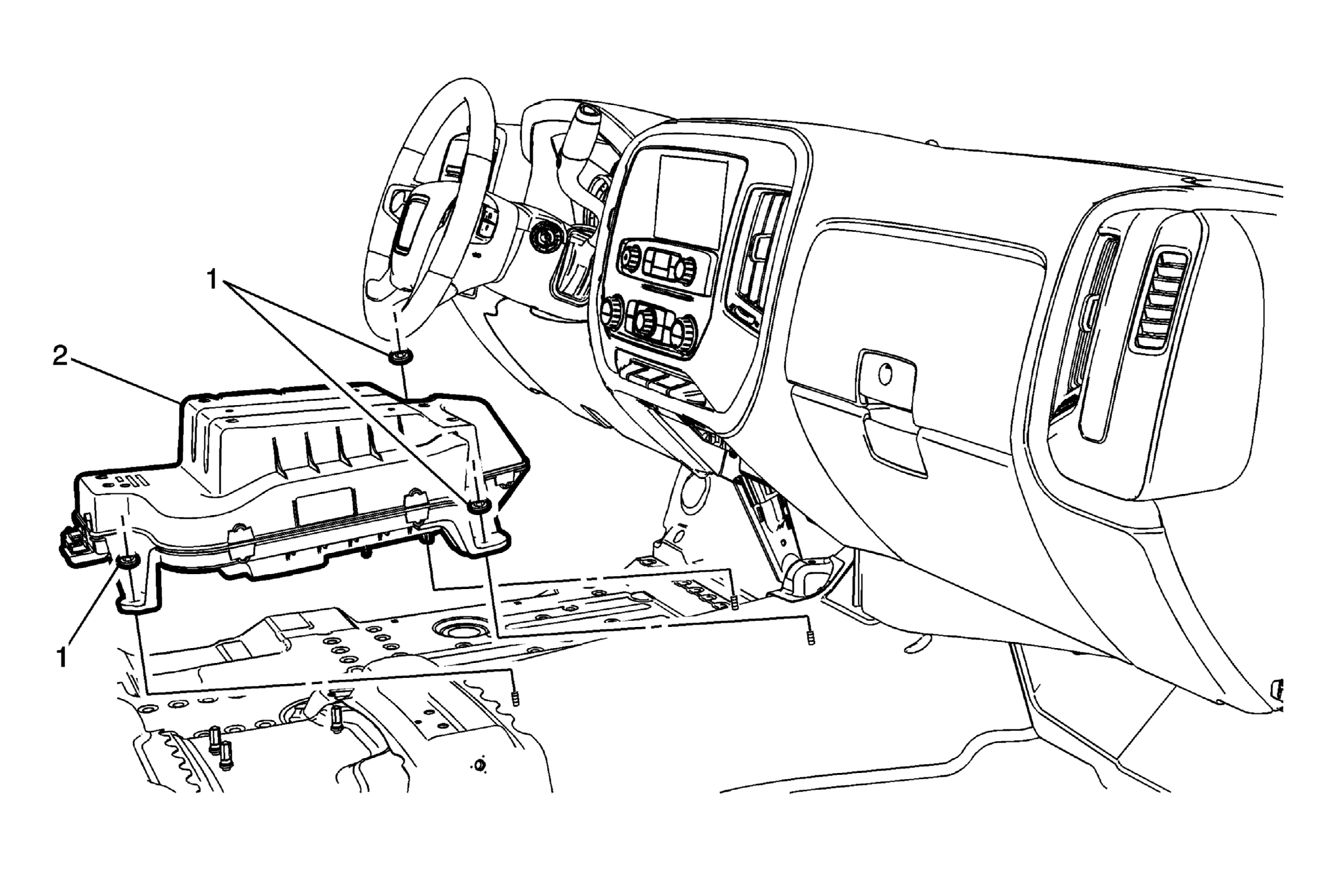

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the floor console assembly. Refer to Front Floor Console Assembly Replacement . |
|
| 1 | Radio Front Floor Console Speaker Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Front Floor Console Speaker Procedure Disconnect the electrical connectors. |
