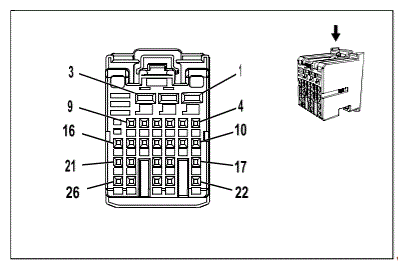

K9 Body Control Module X7
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575871 | J-35616-35 (VT) | J-38125-12A | Not Required | Not Required | Not Required | Not Required |
| I | 13575871 | J-35616-35 (VT) | J-38125-12A | Not Required | Not Required | Not Required | Not Required |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | GY | 157 | Interior Lamp Control | I | - |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.5 | WH/BN | 6815 | Inadvertent Power Control | I | - |
| 4 - 5 | - | - | - | Not Occupied | - | - |
| 6 | 0.5 | YE/WH | 816 | Brake Transmission Shift Interlock Solenoid Control | II | - |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.5 0.5 |
GY GY/L-GN |
5996 5996 |
Driver Outside Rear View Mirror Puddle Lamp Control | II | - - |
| 9 | 0.5 | YE | 6817 | LED Backlight Dimming Control | II | - |
| 10 - 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.35 | BN/WH | 3269 | Child Security Lock Motor Status Signal Left Rear | II | - |
| 13 | - | - | - | Not Occupied | - | - |
| 14 | 0.35 | GY | 746 | Right Front Door Ajar Switch Signal | II | - |
| 15 | 0.35 | YE/BN | 3265 | Child Security Lock Switch Signal | II | - |
| 16 | 0.5 0.5 |
WH WH/D-BU |
3691 3691 |
Trailer Brake Apply Signal | II | - - |
| 17 | - | - | - | Not Occupied | - | - |
| 18 | 0.35 | GY/BK | 3268 | Child Security Lock Motor Status Signal Right Rear | II | - |
| 19 | 0.35 | GY | 156 | Courtesy Lamp Switch Signal | II | - |
| 20 | - | - | - | Not Occupied | - | - |
| 21 | 0.35 | YE/VT | 244 | Passenger Door Lock Switch Lock Control | II | - |
| 22 | 0.35 | WH/YE | 7557 | LED Ambient Lighting Control 1 | II | - |
| 23 | 0.5 0.5 |
L-GN - |
5060 5060 |
Low Speed GMLAN Serial Data | II | - - |
| 24 | 0.35 | BN/VT | 245 | Passenger Door Lock Switch Unlock Control | II | - |
| 25 | 0.35 | GY | 745 | Left Front Door Ajar Switch Signal | II | - |
| 26 | - | - | - | Not Occupied | - | - |
