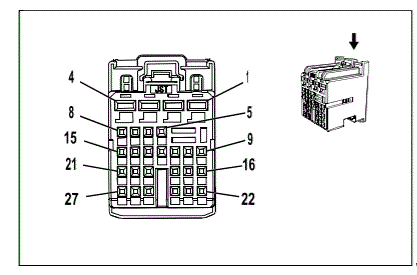

K9 Body Control Module X6
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575871 | J-35616-35 (VT) | J-38125-12A | Not Required | Not Required | Not Required | Not Required |
| I | 13575871 | J-35616-35 (VT) | J-38125-12A | Not Required | Not Required | Not Required | Not Required |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1.5 1.5 |
- D-BU/WH |
195 195 |
Door Lock Control | I | - - |
| 2 | 1.5 1.5 |
GY/L-GN GY |
3271 3271 |
Door Lock Control (2) | I | - - |
| 3 | 1.5 | BK | 1850 | Ground | I | - |
| 4 | 0.75 1.5 |
BN/YE BN/YE |
294 294 |
Door Lock Actuator Unlock Control | I | - - |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | 0.35 0.35 |
D-BU/VT - |
1124 1124 |
Door Lock Key Switch Unlock Signal | II | - - |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.35 | VT/WH | 5908 | Passenger Seat Vent Motor Control (1) | II | - |
| 9 | 0.5 0.5 |
L-GN/D-BU - |
6133 6133 |
Local Interconnect Network Serial Data Bus 2 | II | - - |
| 10 | 0.5 0.5 |
L-GN/YE - |
6134 6134 |
Local Interconnect Network Serial Data Bus 3 | II | - - |
| 11 - 16 | - | - | - | Not Occupied | - | - |
| 17 | 0.35 0.35 |
- L-GN/VT |
5906 5906 |
Driver Seat Vent Motor Control (1) | II | - - |
| 18 - 20 | - | - | - | Not Occupied | - | - |
| 21 | 0.35 | WH/VT | 3270 | Driver Door Lock Motor Status Signal | II | - |
| 22 - 23 | - | - | - | Not Occupied | - | - |
| 24 | 0.5 0.5 |
D-BU - |
2500 2500 |
High Speed GMLAN Serial Data (+) (1) | II | - - |
| 25 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | II | - |
| 26 | 0.5 | BN/WH | 1429 | Standing Lamp Relay Control | II | - |
| 27 | - | - | - | Not Occupied | - | - |
