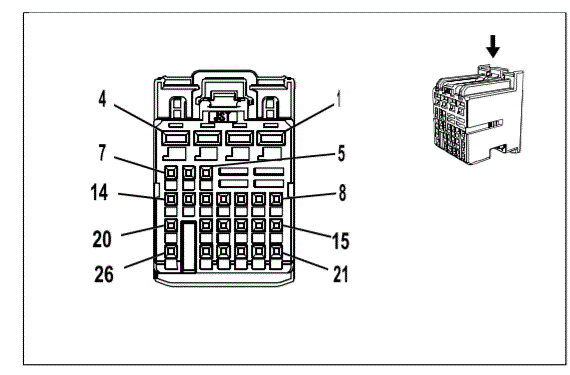

K9 Body Control Module X4
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575871 | J-35616-35 (VT) | J-38125-12A | Not Required | Not Required | Not Required | Not Required |
| I | 13575871 | J-35616-35 (VT) | J-38125-12A | Not Required | Not Required | Not Required | Not Required |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| III | 13582298 | J-35616-64B (LT BU) | J-38125-22 | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | YE | 712 | Left Headlamp Low Beam Control | I | - |
| 2 | 0.75 | YE | 312 | Right Headlamp Low Beam Control | I | - |
| 3 | 0.75 0.75 |
L-GN/VT - |
1315 1315 |
Right Front Turn Signal Lamp Control | I | - - |
| 4 | 0.5 0.5 |
BN BN/L-GN |
19 19 |
Right Rear Stop/Turn Lamp Control | I | - - |
| 5 - 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.75 0.75 |
GY/D-BU GY |
7538 7538 |
Left Front DRL Control | II III |
- - |
| 8 - 10 | - | - | - | Not Occupied | - | - |
| 11 | 0.5 | VT/WH | 5065 | Stop Lamp Relay Coil Control | II | - |
| 12 | 0.35 | GY/VT | 755 | RAP Relay Coil Control | II | - |
| 13 | 0.5 0.5 |
L-GN/YE - |
6846 6846 |
Rear License Lamp Control | II | - - |
| 14 | 0.35 | BN/GY | 2268 | Windshield Washer Relay Control | II | - |
| 15 | 0.35 0.35 |
- L-GN/VT |
5199 5199 |
Run/Crank Relay Coil Control | II | - - |
| 16 | 0.35 | GY | 91 | Windshield Wiper Motor Relay Coil Control | II | - |
| 17 | 0.5 0.5 |
BN/L-GN BN |
196 196 |
Windshield Wiper Motor Park Switch Signal | II | - - |
| 18 | 0.35 | WH/YE | 5075 | Current Sensor Signal | II | - |
| 19 | 0.35 0.35 |
- D-BU/YE |
6844 6844 |
ABS/TCS Hill Descent Control Switch Signal | II | - - |
| 20 | 0.75 0.75 |
RD/YE RD/YE |
2340 2340 |
Battery Positive Voltage | III II |
- - |
| 21 | 0.35 0.35 |
D-BU/VT - |
5076 5076 |
Current Sensor Control | II | - - |
| 22 | 0.35 | VT/YE | 5985 | Accessory Wakeup Serial Data | II | - |
| 23 | 0.5 0.5 |
WH/D-BU WH |
5986 5986 |
Serial Data Communication Enable | II | - - |
| 24 | 0.5 0.5 |
BN/L-GN BN |
109 109 |
Hood Ajar Switch Signal | II | - - |
| 25 | 0.5 0.5 |
L-GN/YE - |
2081 2081 |
Exhaust Brake Switch Control | II | - - |
| 26 | 0.75 0.75 |
BK/WH BK/WH |
451 451 |
Signal Ground | III II |
- - |
