K20 Engine Control Module X1 (L96/LC8)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

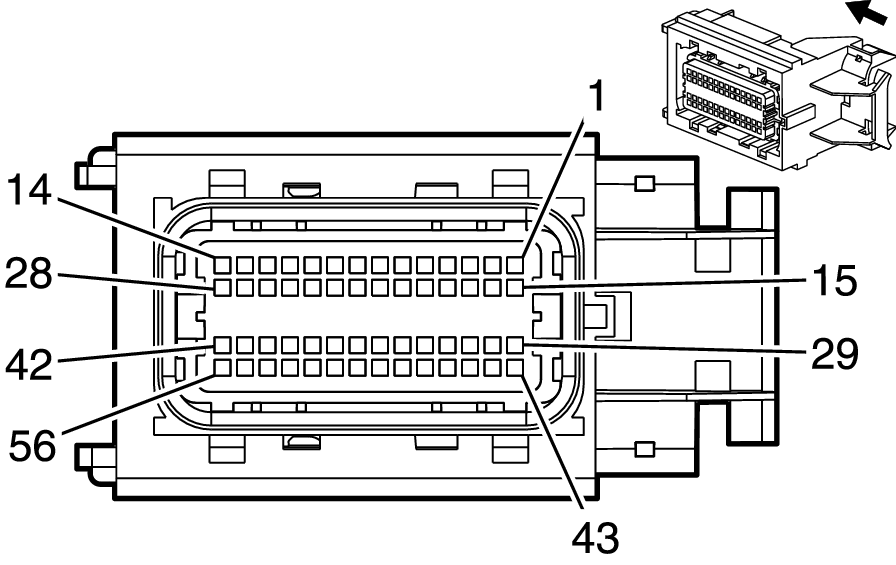

GM4068000
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13820449
  • Service Connector: 19329930
  • Description: 56-Way F 0.64 I Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13575812 J-35616-64B (LT BU) J-38125-213 Not Required Not Required Not Required Not Required
Pin Size Color Circuit Function Terminal Type ID Option
1 - - - Not Occupied - -
2 0.5 L-GN/WH 1162 Accelerator Pedal Position Signal (2) I -
3 0.5 L-GN/WH 492 Mass Air Flow Sensor Signal I -
4 0.5 GY/BK 1694 Four Wheel Drive Low Signal I -
5 0.5 YE/WH 1695 Four Wheel Drive Wheel Lock Indicator Control I -
6 - 9 - - - Not Occupied - -
10 0.5 YE/WH 1161 Accelerator Pedal Position Signal (1) I -
11 0.5 YE/WH 3200 Throttle Inlet Absolute Pressure Sensor Signal I -
12 0.5 L-GN 380 A/C Refrigerant Pressure Sensor Signal I -
13 0.5 BK/BN 5514 A/C Refrigerant Pressure Sensor Low Reference I -
14 0.5 YE/D-BU 1465 Secondary Fuel Pump Relay Control I -
15 - - - Not Occupied - -
16 0.5 BN/RD 1274 Accelerator Pedal Position 5 Volt Reference (2) I -
17 - - - Not Occupied - -
18 0.5 VT/YE 5985 Accessory Wakeup Serial Data I -
19 0.5 VT/L-GN 439 Run/Crank Ignition 1 Voltage I -
20 0.5 RD/BN 440 Battery Positive Voltage I -
21 - 23 - - - Not Occupied - -
24 0.5 WH/RD 1164 Accelerator Pedal Position 5 Volt Reference (1) I -
25 0.5 WH/RD 3201 Throttle Inlet Absolute Pressure Sensor 5 Volt Reference I -
26 0.5 BN/RD 2700 A/C Pressure Sensor 5 Volt Reference I -
27 0.5 YE/BK 625 Starter Enable Relay Control I -
28 0.5 L-GN/GY 465 Fuel Pump Primary Relay Control I -
29 0.5 D-BU 2500 High Speed GMLAN Serial Data (+) (1) I -
30 0.5 BK/PU 1272 Accelerator Pedal Position Low Reference (2) I -
31 0.5 BK/PU 2760 Intake Air Temperature Sensor Low Reference I -
32 - - - Not Occupied - -
33 0.5 WH/D-BU 6311 Cruise/ETC/TCC Brake Signal I -
34 0.5 WH/GY 1786 Transmission Park/Neutral Signal (1) I -
35 - 37 - - - Not Occupied - -
38 0.5 BK/D-BU 1271 Accelerator Pedal Position Low Reference (1) I -
39 0.5 WH/YE 3202 Throttle Inlet Absolute Pressure Sensor Low Reference I -
40 0.5 YE 5991 Powertrain Relay Coil Control I -
41 - 42 - - - Not Occupied - -
43 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) I -
44 - - - Not Occupied - -
45 0.5 WH/D-BU 6289 Induction Air Temperature Sensor Signal I -
46 - - - Not Occupied - -
47 0.5 BN 25 Charge Indicator Control I -
48 - 51 - - - Not Occupied - -
52 0.5 BN/WH 419 Check Engine Indicator Control I -
53 0.5 WH/GY 459 A/C Compressor Clutch Relay Control I -
54 - 55 - - - Not Occupied - -
56 0.5 WH 1310 EVAP Canister Vent Solenoid Control I -
