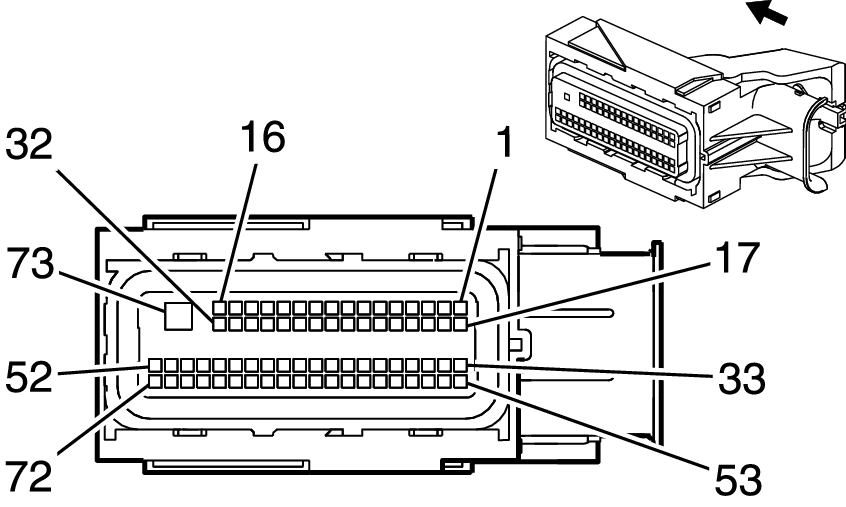

K20 Engine Control Module X1 (1500)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Engine
OEM Connector: 13820453
Service Connector: 19260919
Description: 73-Way F 0.64, 2.8 Series, Sealed (BK with BU Terminal Position Assurance)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575812	J-35616-64B	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	13579770	J-35616-35 (VT)	J-38125-11A	7116-4152-02	9	A	5

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	D-BU/WH	7446	Fuel Line Pressure Sensor Signal	I	-
3	-	-	-	Not Occupied	-	-
4	0.5	YE/WH	3200	Throttle Inlet Absolute Pressure Sensor Signal	I	-
5	0.5	WH/RD	3201	Throttle Inlet Absolute Pressure Sensor 5V Reference	I	-
6	0.5	L-GN	380	A/C Refrigerant Pressure Sensor Signal	I	-
7	-	-	-	Not Occupied	-	-
8	0.5	BK/YE	7447	Fuel Line Pressure Sensor Low Reference	I	-
9	0.5	D-BU/WH	890	Fuel Tank Pressure Sensor Signal	I	-
10	0.5	YE/RD	2709	Fuel Tank Pressure Sensor 5 Volt Reference	I	-
11-12	-	-	-	Not Occupied	-	-
13	0.5	D-BU/GY	636	Outside Ambient Air Temperature Sensor Signal	I	-
14	0.5	WH/RD	1164	Accelerator Pedal Position 5 Volt Reference (1)	I	-
15	0.5	YE/WH	1161	Accelerator Pedal Position Signal (1)	I	-
16-20	-	-	-	Not Occupied	-	-
21	0.5	BN/RD	2700	A/C Pressure Sensor 5 Volt Reference	I	-
22	0.5	BK/BN	5514	A/C Refrigerant Pressure Sensor Low Reference	I	-
23	-	-	-	Not Occupied	-	-
24	0.5	BN/RD	7445	Fuel Line Pressure Sensor 5V Reference	I	-
25	0.5	D-BU/VT	1589	Primary Fuel Level Sensor Signal	I	-
26	0.5	BK/L-GN	6281	Fuel Level Sensor Low Reference	I	-
27-29	-	-	-	Not Occupied	-	-
30	0.5	BK/D-BU	1271	Accelerator Pedal Position Low Reference (1)	I	-
31	-	-	-	Not Occupied	-	-
32	0.5	WH/GY	459	A/C Compressor Clutch Relay Control	I	-
33	0.5	BN/RD	1274	Accelerator Pedal Position 5 Volt Reference (2)	I	-
34	0.5	L-GN/WH	1162	Accelerator Pedal Position Signal (2)	I	-
35	-	-	-	Not Occupied	-	-
36	0.5	D-BU/BK	7493	High Speed GMLAN Serial Data (+)(3)	I	-
37	0.5	WH	7494	High Speed GMLAN Serial Data (-)(3)	I	-
38	0.5	WH	1579	Fuel Temperature/Composition Signal	I	-
39	0.5	D-BU	2500	High Speed GMLAN Serial Data (+) (1)	I	-
40	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	-
41-43	-	-	-	Not Occupied	-	-
44	0.5	GY	5660	Fuel Pump Controller Data Out Signal	I	-
45	-	-	-	Not Occupied	-	-
46	0.5	BN/WH	419	Check Engine Indicator Control	I	-
47	0.5 0.5	WH GY/RD	5359 6109	Brake Apply Sensor Supply Voltage Clutch Apply Sensor Voltage Reference	I	MYC M2P or MXW
48	0.5 0.5	YE D-BU/YE	6111 5361	Clutch Apply Sensor Signal Brake Apply Sensor Signal	I	M2P or MXW MYC
49-50	-	-	-	Not Occupied	-	-
51	0.5	VT/L-GN	439	Run/Crank Ignition 1 Voltage	I	-
52	0.5	RD/BN	440	Battery Positive Voltage	I	-
53	0.5	BK/PU	1272	Accelerator Pedal Position Low Reference (2)	I	-
54-56	-	-	-	Not Occupied	-	-
57	0.5	WH/D-BU	6311	Cruise/ETC/TCC Brake Signal	I	-
58	-	-	-	Not Occupied	-	-
59	0.5	BN/YE	473	High Speed Cooling Fan Relay Control	I	-
60-61	-	-	-	Not Occupied	-	-
62	0.5	VT/D-BU	5291	Powertrain Main Relay Fused Supply (2)	I	-
63	0.5	YE/BK	625	Starter Enable Relay Control	I	-
64-65	-	-	-	Not Occupied	-	-
66	0.5	WH	1310	EVAP Canister Vent Solenoid Control	I	-
67	0.5	VT/D-BU	5292	Powertrain Main Relay Fused Supply (3)	I	-
68	0.5 0.5	BK/GY BK/BN	6110 5360	Clutch Apply Sensor Low Reference Brake Apply Sensor Low Reference	I	M2P or MXW MYC
69	-	-	-	Not Occupied	-	-
70	0.5	VT/YE	5985	Accessory Wakeup Serial Data	I	-
71	-	-	-	Not Occupied	-	-
72	0.5	YE	5991	Powertrain Relay Coil Control	I	-
73	2.5	VT/D-BU	5290	Powertrain Main Relay Fused Supply (1)	II	-
