F106P Inflatable Restraint Side Impact Module - Passenger
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Sierra 3500 HD, 2015 GMC Sierra 2500 HD, 2015 GMC Sierra 1500, 2015 Chevrolet Silverado 3500 HD, and 2015 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
|
|

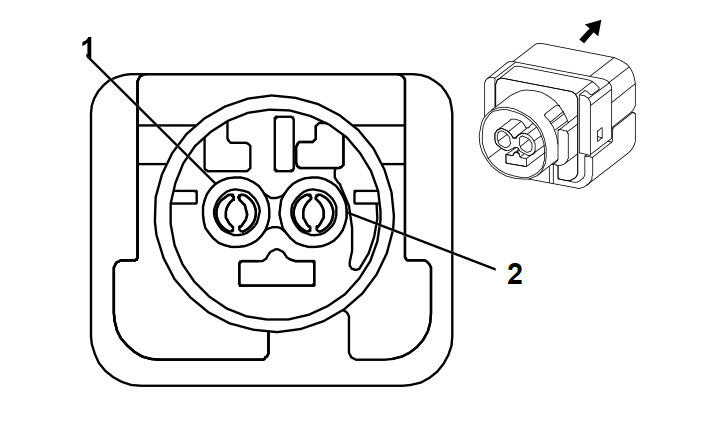

Connector Part Information
- Harness Type: Passenger Seat Back
- OEM Connector: PPI0001142
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F FPB 180-1 Series (BK with YE cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Pending |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/GY |
3066 |
Passenger Side Impact Module High Control |
I |
- |
| 2 |
0.5 |
BN/OG |
3067 |
Passenger Side Impact Module Low Control |
I |
- |
