Windshield Washer Solvent Heater X2 (XA7) Connector End View

WARNING: This page is about a different car, the 2011 GMC Sierra, 2011 GMC Cab & Chassis Sierra, 2011 Chevrolet Silverado, and 2011 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

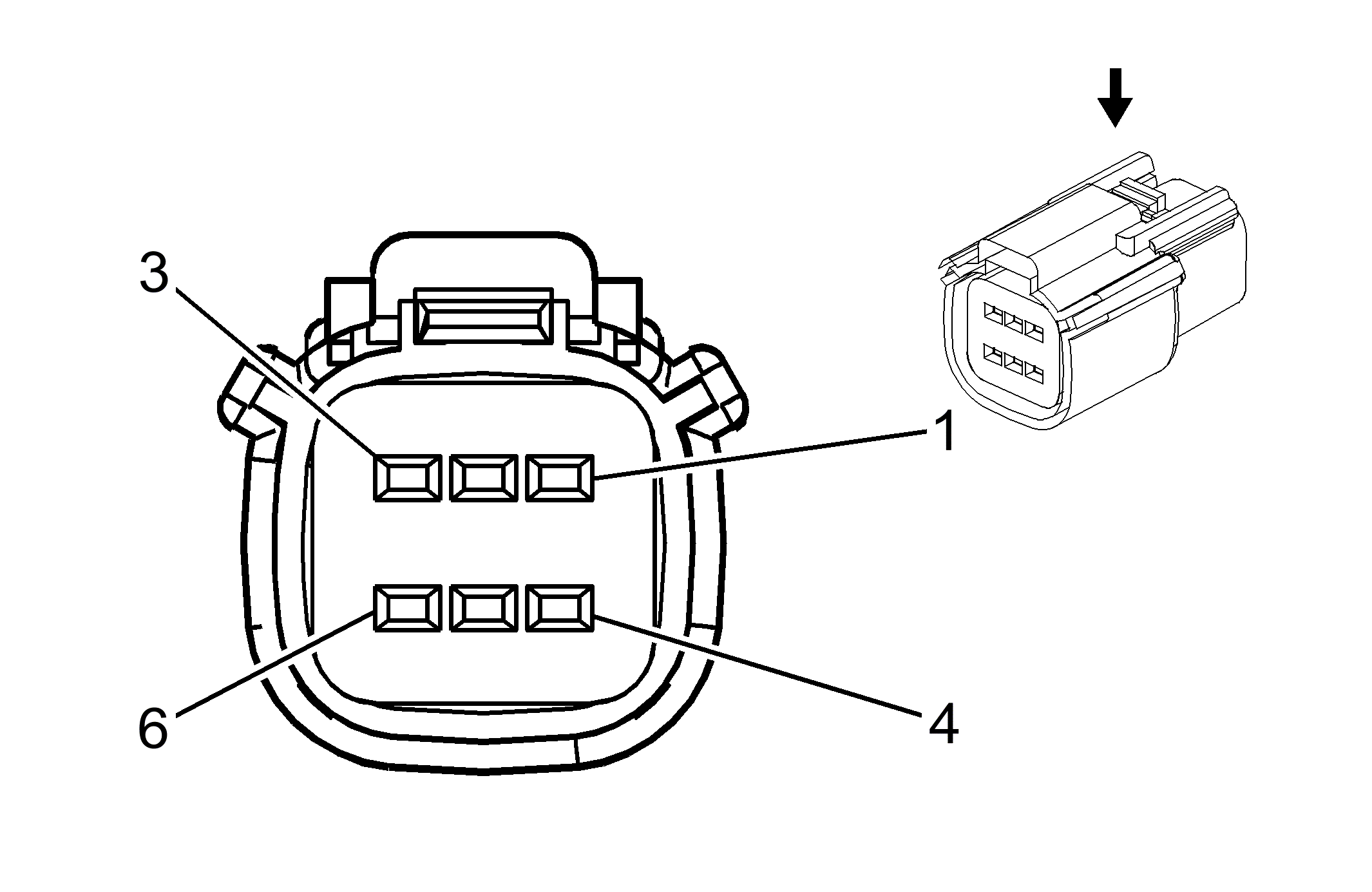

Fig 1: Windshield Washer Solvent Heater X2 (XA7) Connector End View
GM1725819Courtesy of GENERAL MOTORS CORP.
Windshield Washer Solvent Heater X2 (XA7)

Pin Wire Circuit Function
1 0.35 L-GN 6096 Washer Fluid Heated Control Switch Signal
2 0.35 D-BU/WH 5970 Washer Fluid Heated Control Switch LED Supply Voltage
3 - - Not Used
4 0.35 BK/WH 1851 Ground
5 0.35 PK 94 Windshield Washer Switch Signal
6 0.35 OG 300 Ignition 3 Voltage
Connector Part Information
  • Harness: Instrument Panel
  • OEM: 15423411
  • Service: 19178087
  • Description: 6-Way F 1.5 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 33012-1003/23
  • Core/Insulation Crimp: 2/E/2
  • Release Tool/Test Probe: J-38125-217/J-35616-2A (GY)
