Windshield Washer Solvent Heater X1 (XA7) Connector End View

WARNING: This page is about a different car, the 2011 GMC Sierra, 2011 GMC Cab & Chassis Sierra, 2011 Chevrolet Silverado, and 2011 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

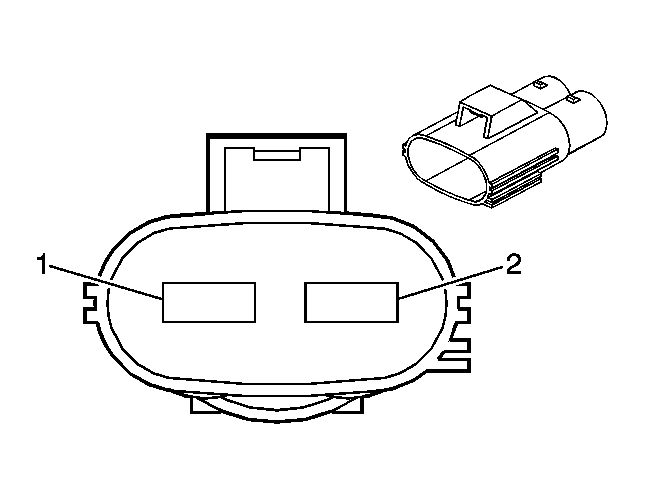

Fig 1: Windshield Washer Solvent Heater X1 (XA7) Connector End View
GM1715214Courtesy of GENERAL MOTORS CORP.
Windshield Washer Solvent Heater X1 (XA7)

Pin Wire Circuit Function
1 5 RD/BK 1642 Battery Positive Voltage
2 0.5 BK 1350 Ground
Connector Part Information
  • Harness: Instrument Panel
  • OEM: 15489811
  • Service: 19115654
  • Description: 2-Way M Y-Type 9.5 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7114-3250/14
  • Core/Insulation Crimp: G/3
  • Release Tool/Test Probe: 12094430/J-35616-21 (RD)
