Turbocharger Vane Position Control Solenoid Valve (Diesel) Connector End View

WARNING: This page is about a different car, the 2011 GMC Sierra, 2011 GMC Cab & Chassis Sierra, 2011 Chevrolet Silverado, and 2011 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

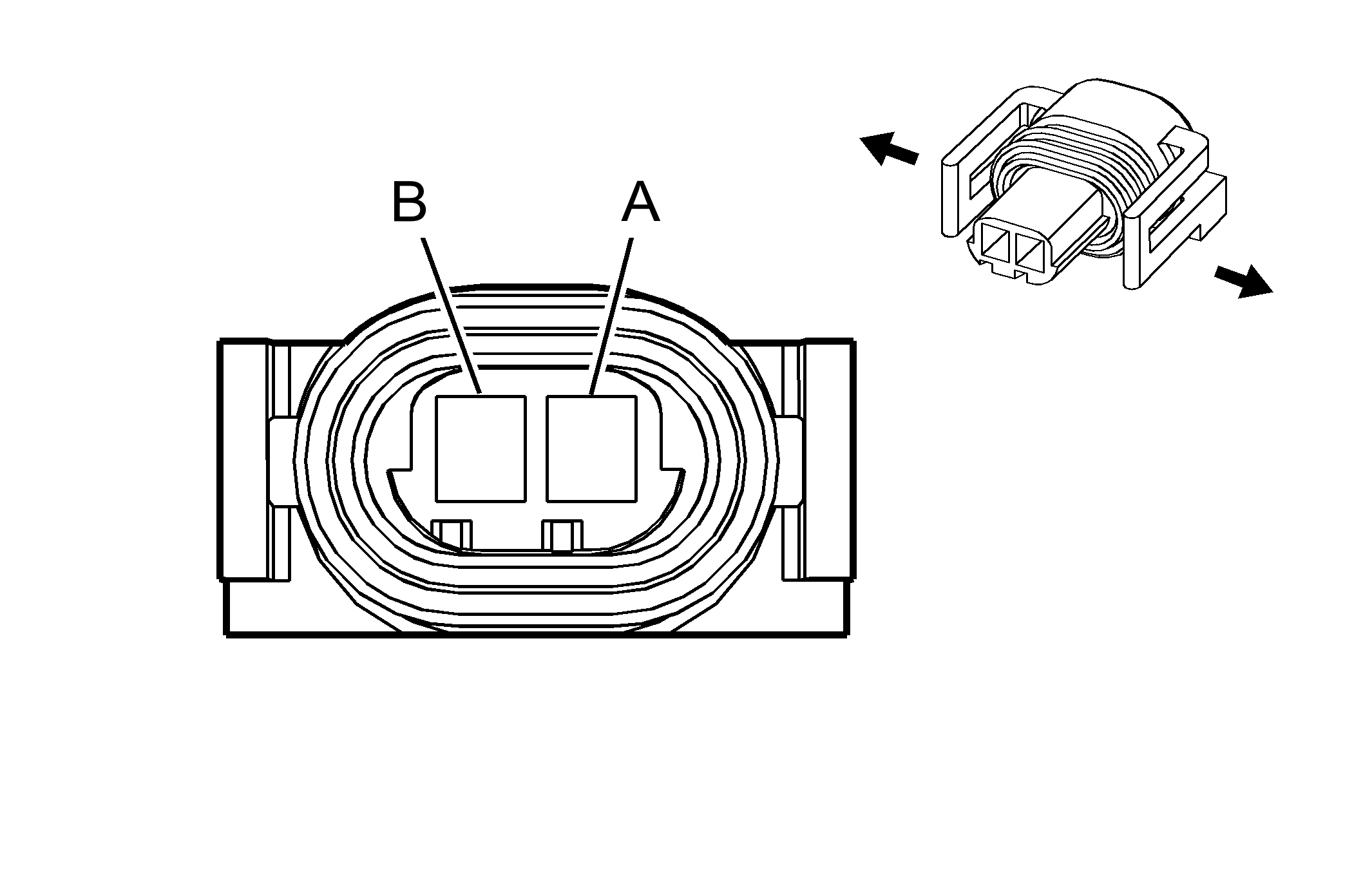

Fig 1: Turbocharger Vane Position Control Solenoid Valve (Diesel) Connector End View
GM2424958Courtesy of GENERAL MOTORS CORP.
Turbocharger Vane Position Control Solenoid Valve (Diesel)

Pin Wire Circuit Function
A 0.5 D-BU 5930 Turbocharger Vane Position Control Solenoid Valve Control
B 0.5 WH 5931 Low Reference
Connector Part Information
  • Harness: Engine
  • OEM: 12162215
  • Service: Pending
  • Description: 2-Way F MP 150.2 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 12124075/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: J-38125-559/J-35616-14 (GN)
