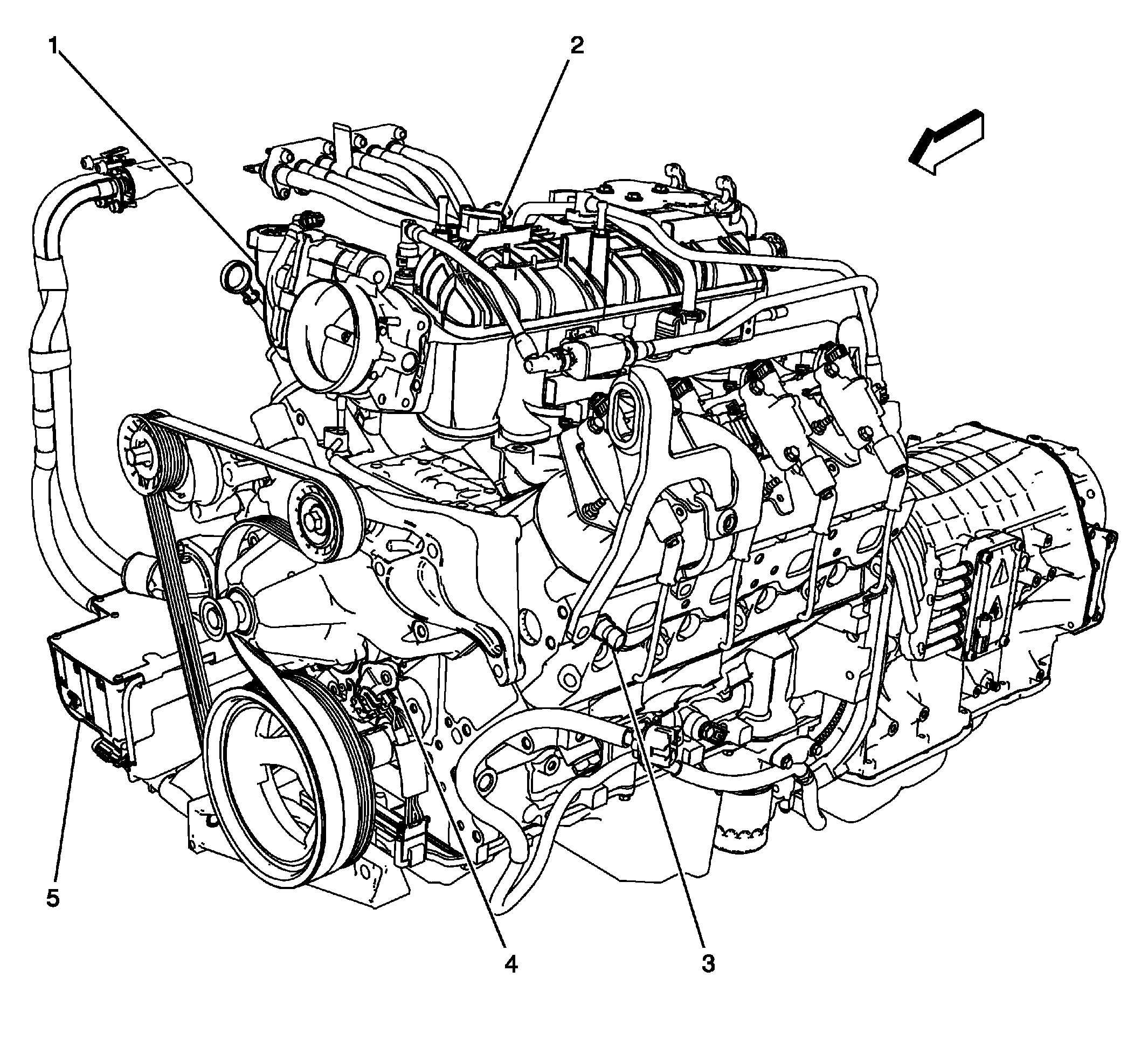

Right Side of the Engine Components (LFA/HP2)
Right Side of the Engine Components (LFA/HP2)
| Component Name | Callout |
|---|---|
| Valve Lifter Oil Manifold (VLOM) Assembly | 1 |
| Fuel Injector 8 | 2 |
| Fuel Injector 6 | 3 |
| Fuel Injector 4 | 4 |
| Fuel Injector 2 | 5 |
| Ignition Coil 2 | 6 |
| Ignition Coil 4 | 7 |
| Ignition Coil 6 | 8 |
| Knock Sensor (KS) 2 | 9 |
| Ignition Coil 8 | 10 |
| Crankshaft Position (CKP) Sensor | 11 |
