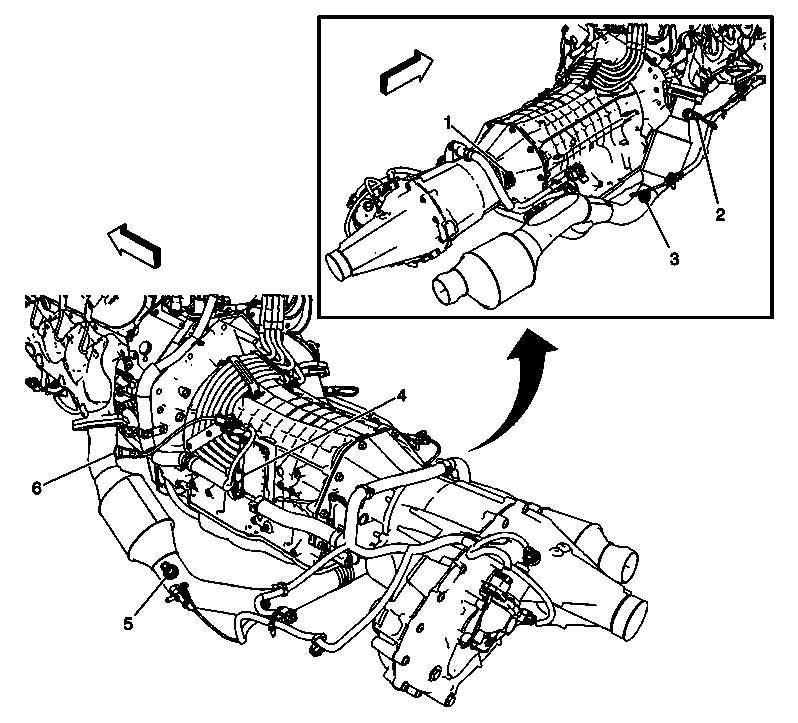

Rear of the Engine Components (LFA/HP2)
Rear of the Engine Components (LFA/HP2)
| Component Name | Callout |
|---|---|
| Output Speed Sensor (OSS) (M99) | 1 |
| Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 | 2 |
| Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 | 3 |
| Transmission Power Inverter Module (3 Phase) Cable Cover | 4 |
| Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 | 5 |
| Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 | 6 |
