Humidity Sensor With Intake Air Temperature Sensor 1 Replacement
NOTE:
8-pin Humidity Sensor is placed in the air stream ahead of the (5 Pin) Mass Air Flow/Intake Air Temperature (IAT sensor 2). IAT sensor 1 is integrated within the humidity sensor.

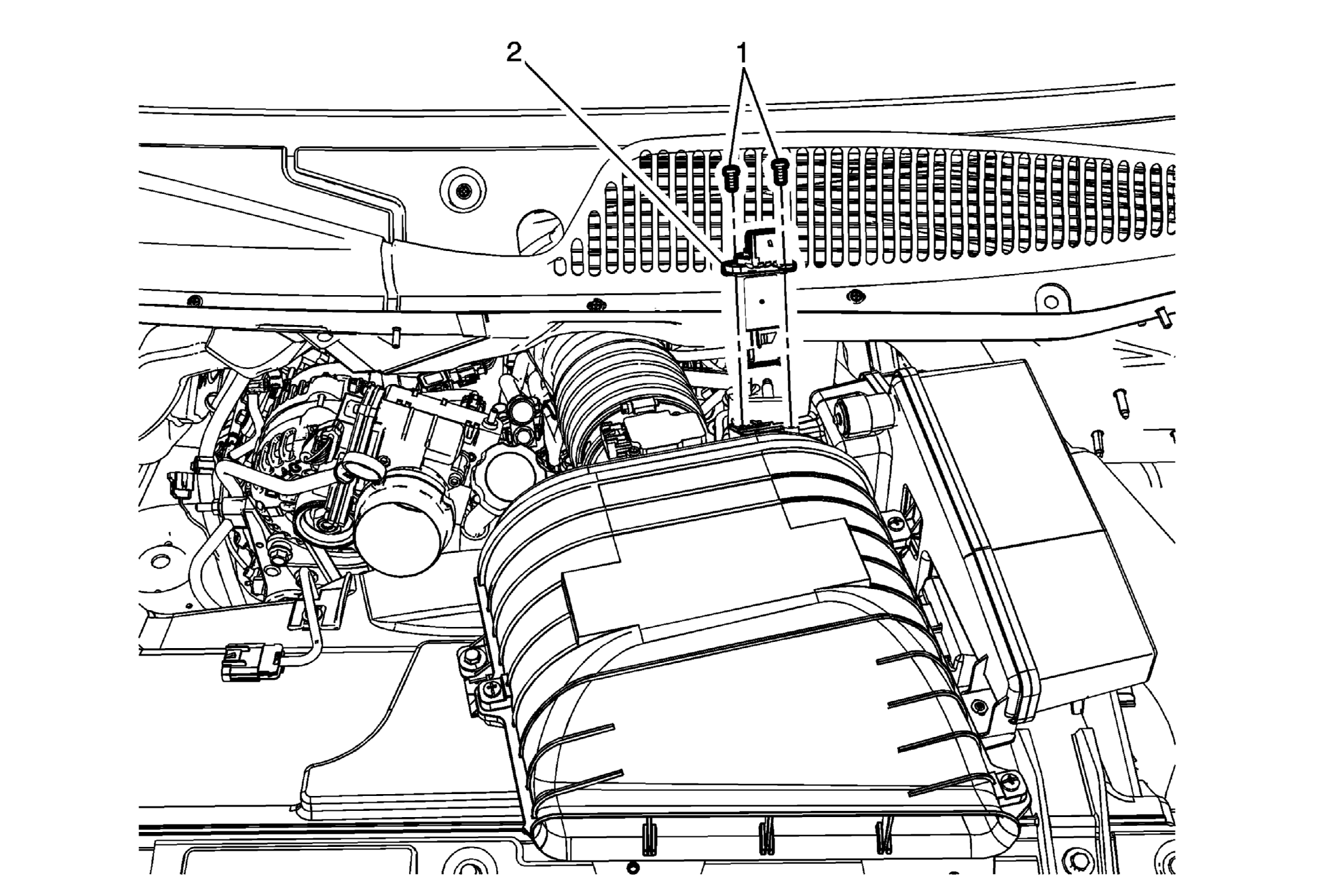

Humidity Sensor Replacement
| Callout | Component Name |
|---|---|
| 1 | Humidity Sensor with Intake Air Temperature Sensor 1 Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the harness connector from the sensor. Tighten 8 N.m (71 lb in) |
| 2 | Humidity Sensor with Intake Air Temperature Sensor 1 Procedure Disconnect the electrical connector. |
