High Speed Bus- HP2 (1 of 2) Wiring Schematics

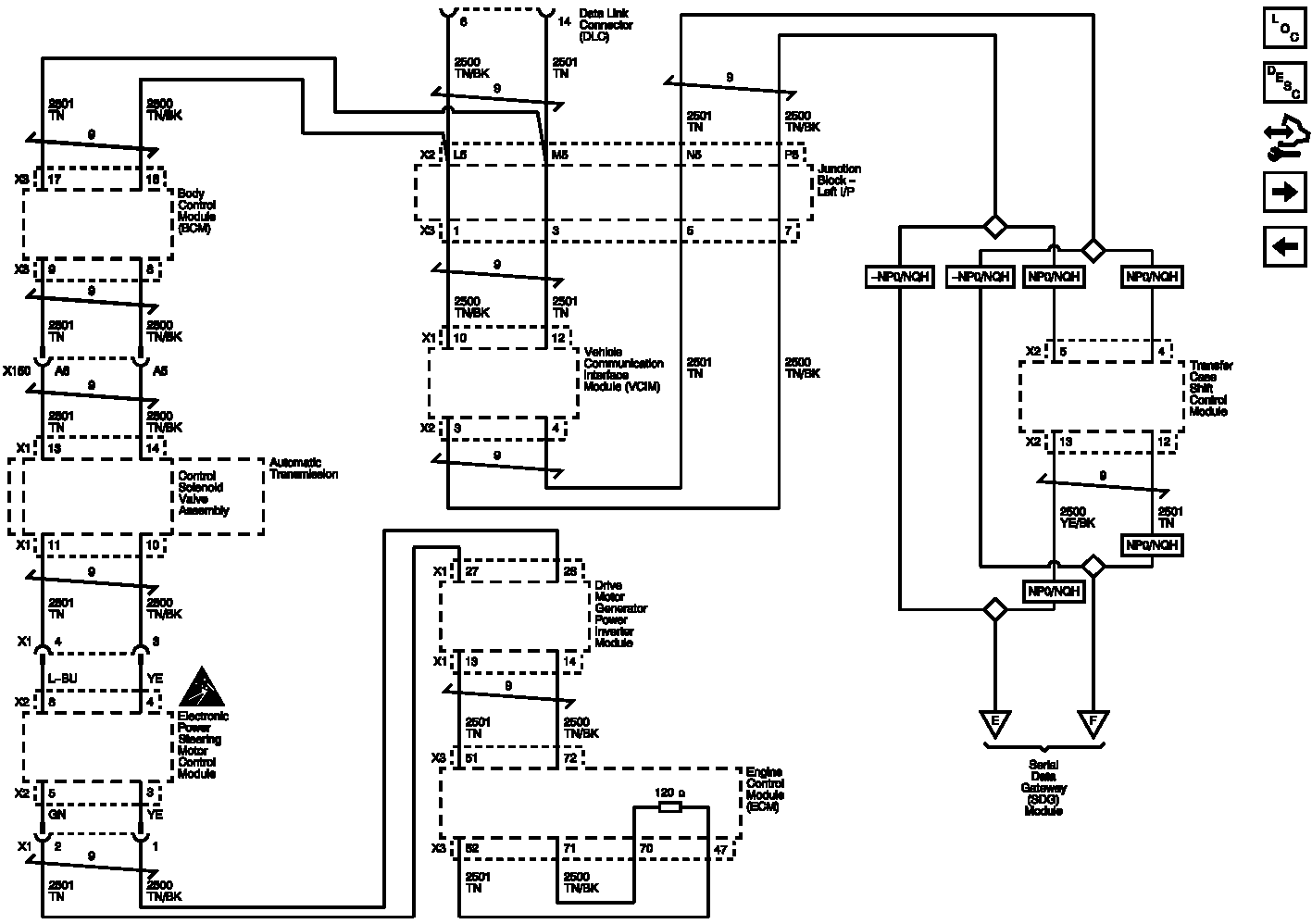

Fig 1: High Speed Bus- HP2 (1 of 2) Wiring Schematics

GM2635362

Courtesy of GENERAL MOTORS COMPANY
