Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 GMC Savana, 2013 GMC RV Cutaway, 2013 GMC Cutaway, 2013 Chevrolet RV Cutaway, and 2013 Chevrolet Express. However, it is still accessible from the selected car via links, so may be relevant.

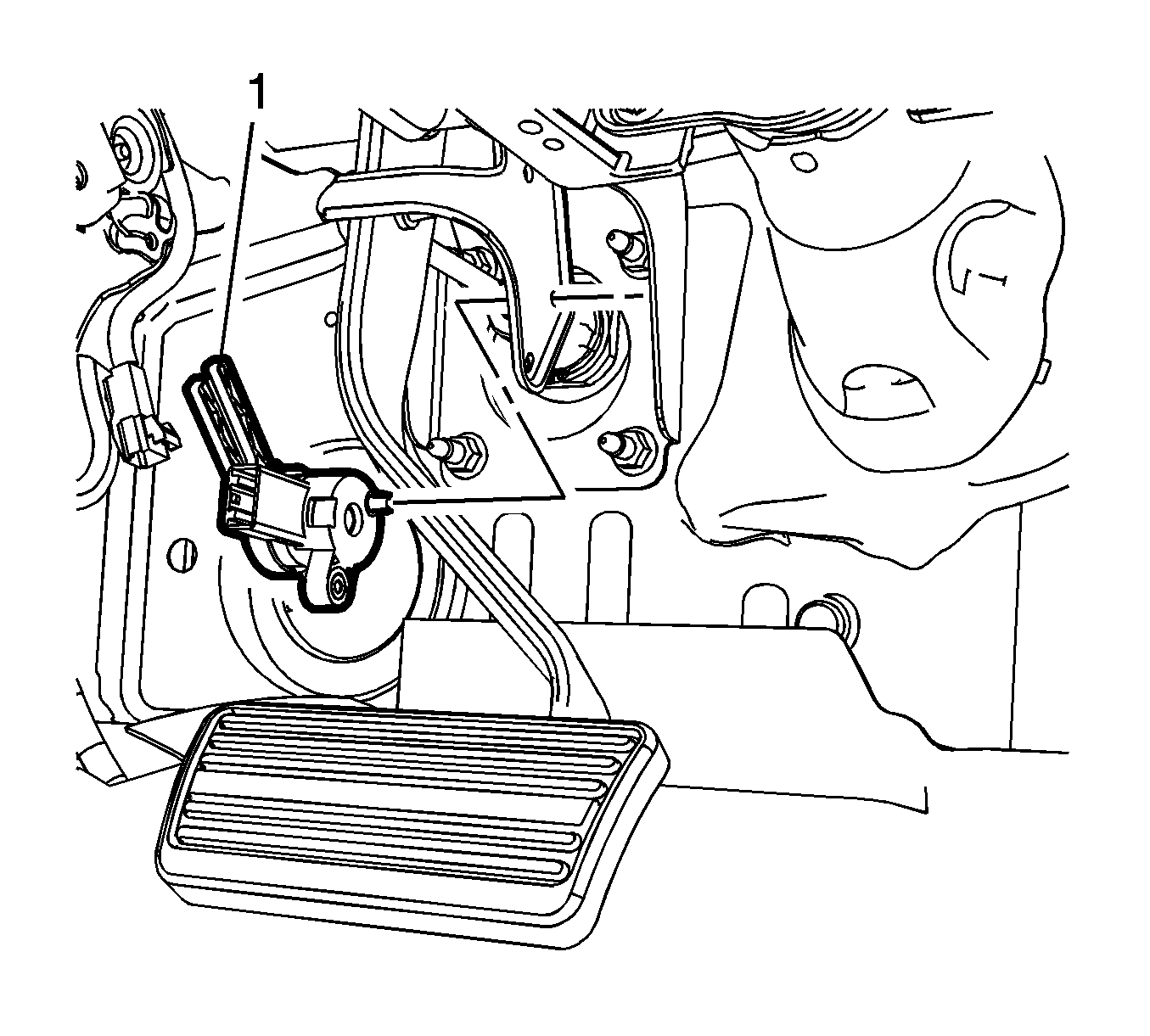

- Install the brake pedal position sensor (1.

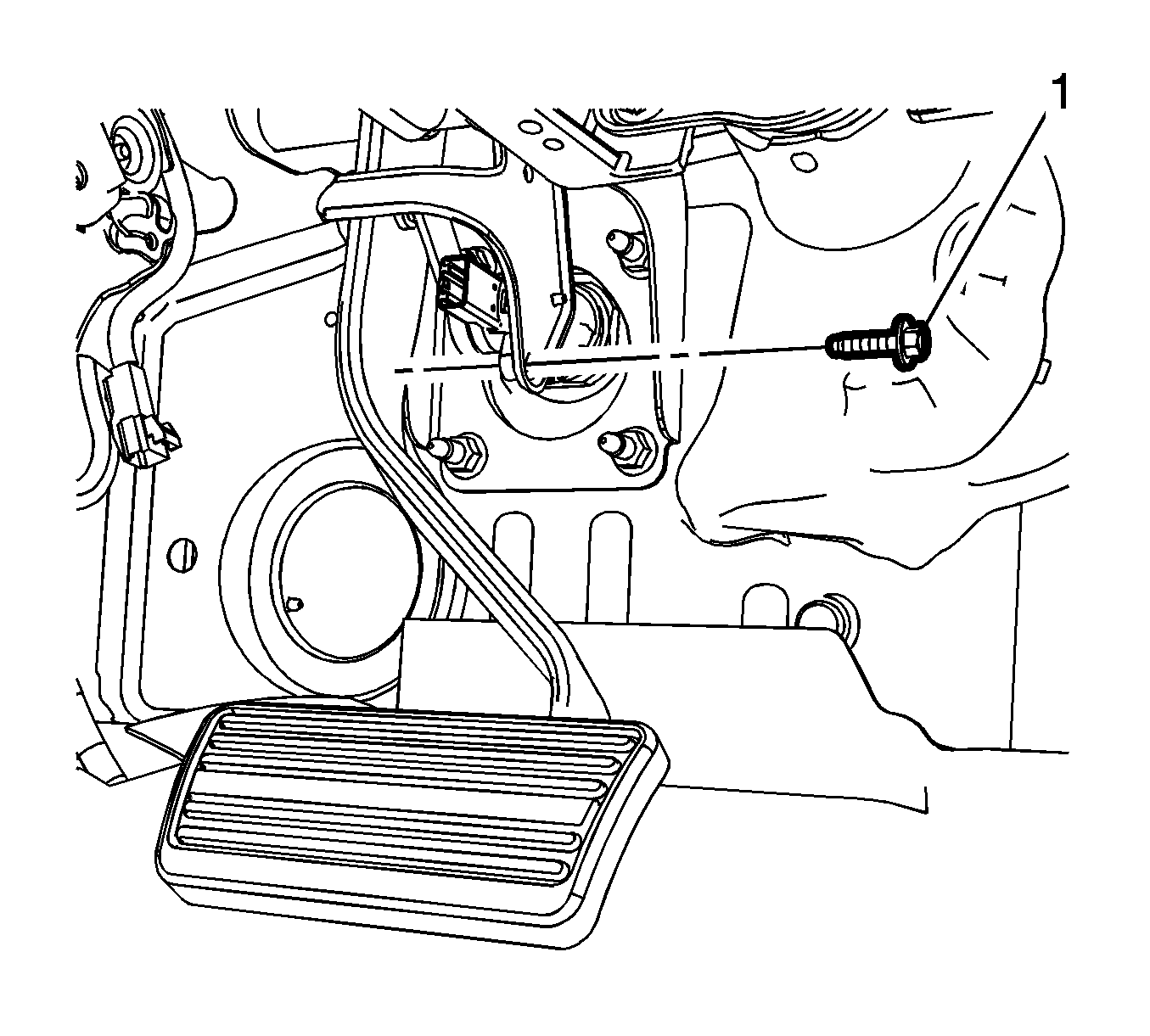

- Install the brake pedal position sensor bolt (1).
- Connect the brake pedal position sensor electrical connector.
- Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
CAUTION:
Refer to Fastener Caution .
