Defogger Wiring Schematics: Defogger

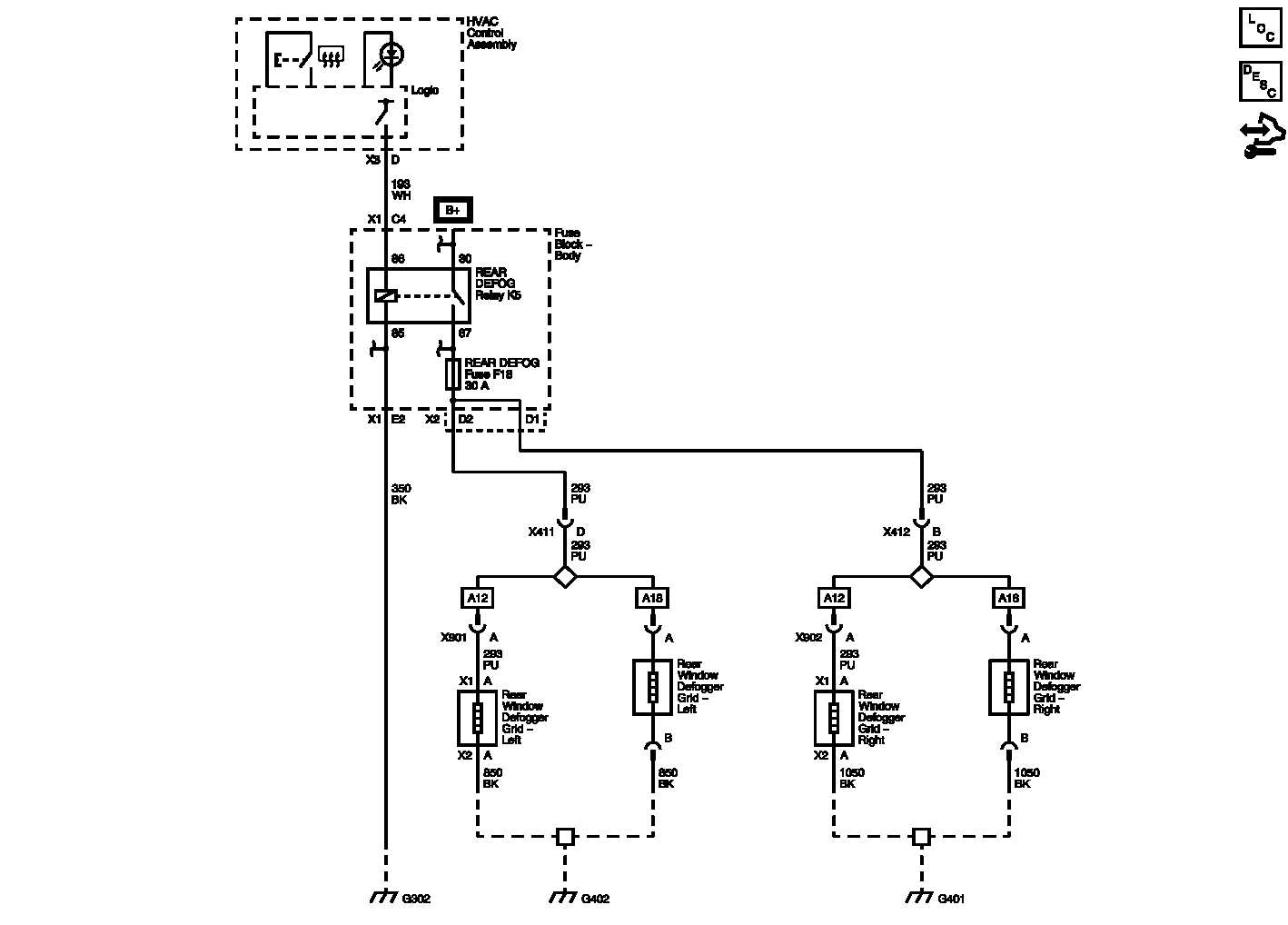

Fig 1: Defogger Wiring Schematic

GM2633042

Courtesy of GENERAL MOTORS COMPANY
