Access Panel Relay Control
Access Panel Relay Control

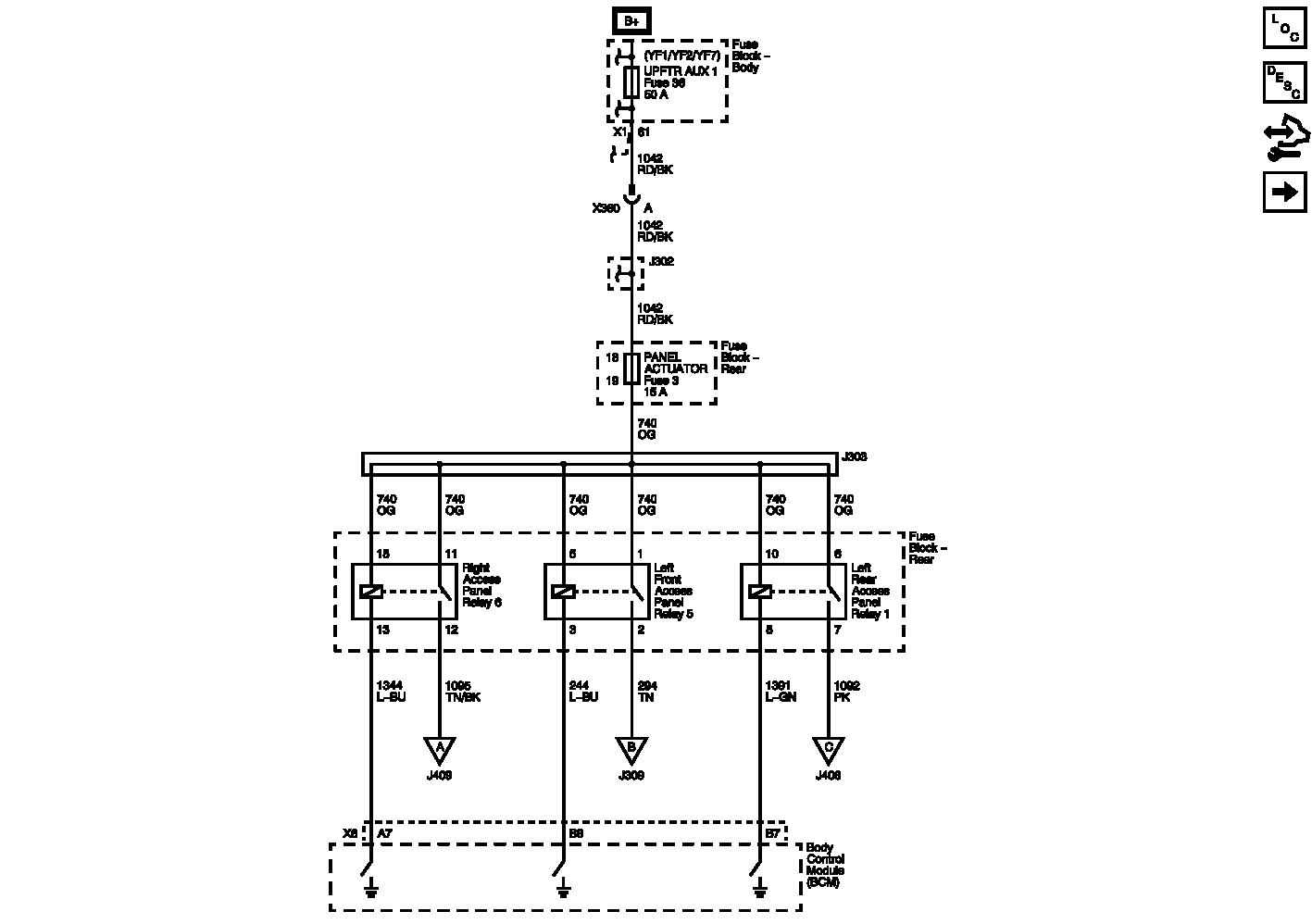

Fig 1: Access Panel Relay Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
