Seat Belt System Wiring Schematics
Seat Belt System Wiring Schematics

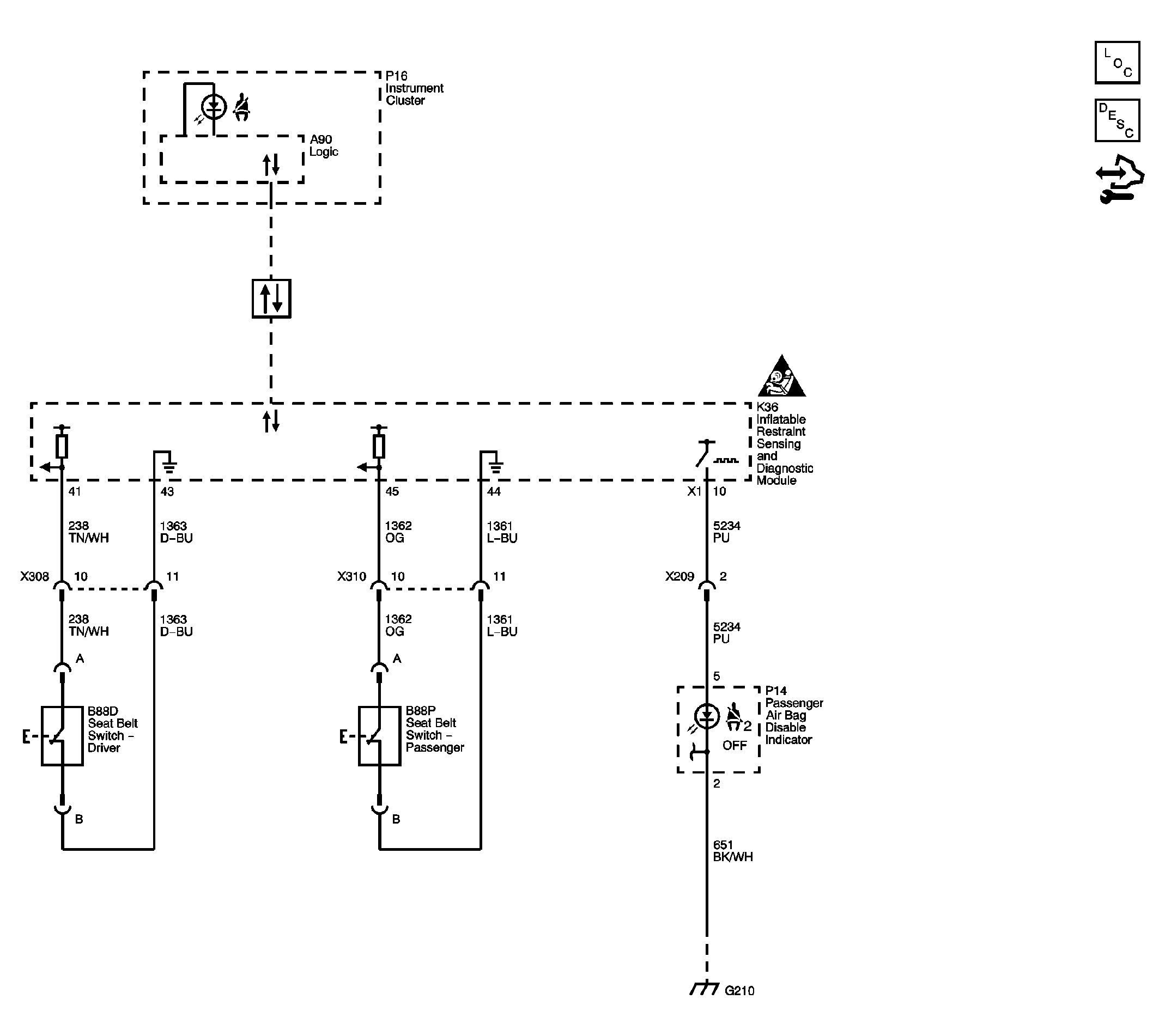

Fig 1: Seat Belt System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
