Outside Remote Control Rearview Mirror Switch Replacement

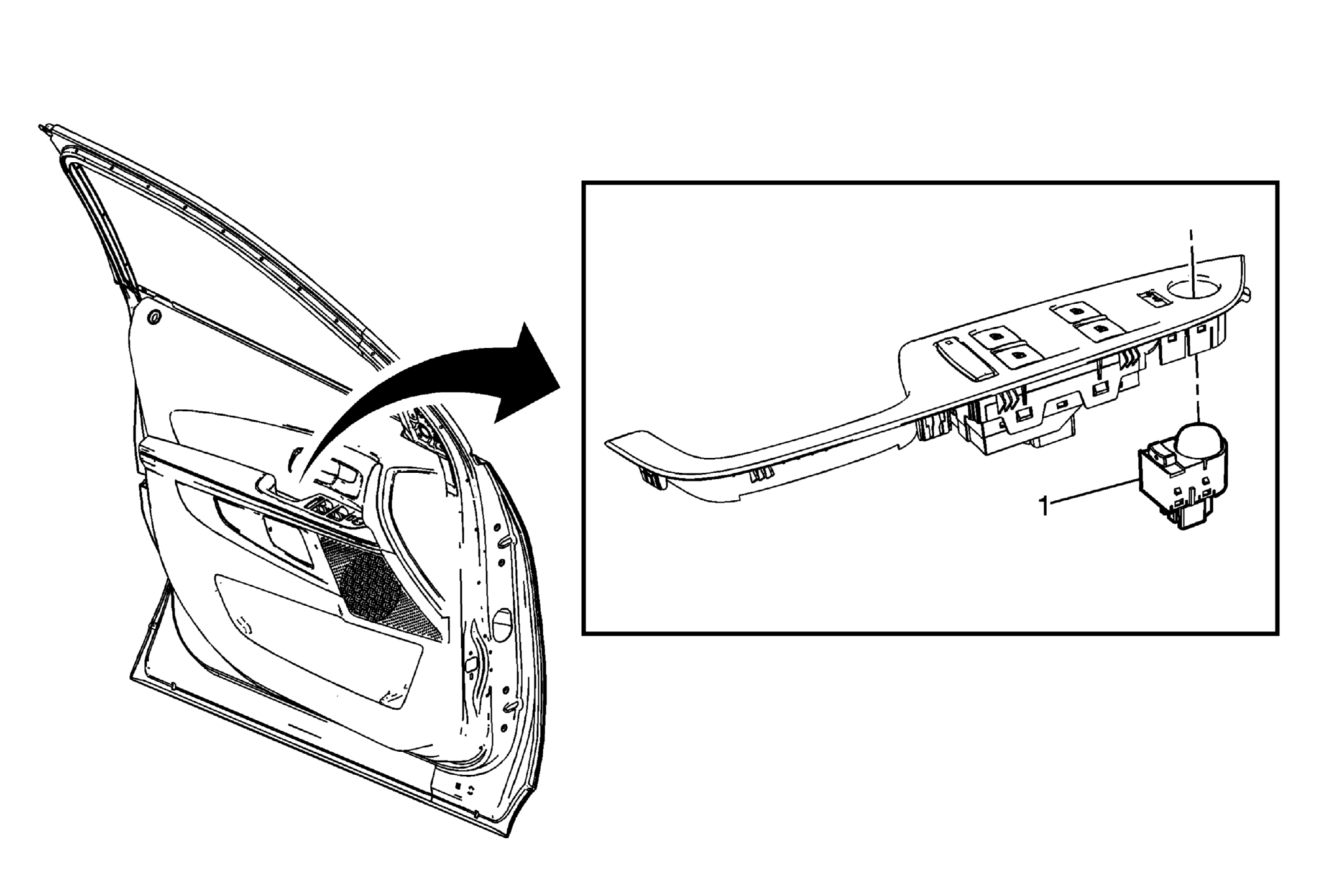

Fig 1: Outside Remote Control Rearview Mirror Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .
1	Outside Remote Control Rearview Mirror Switch Assembly Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure:
Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .

Outside Remote Control Rearview Mirror Switch Assembly

Procedure
