Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

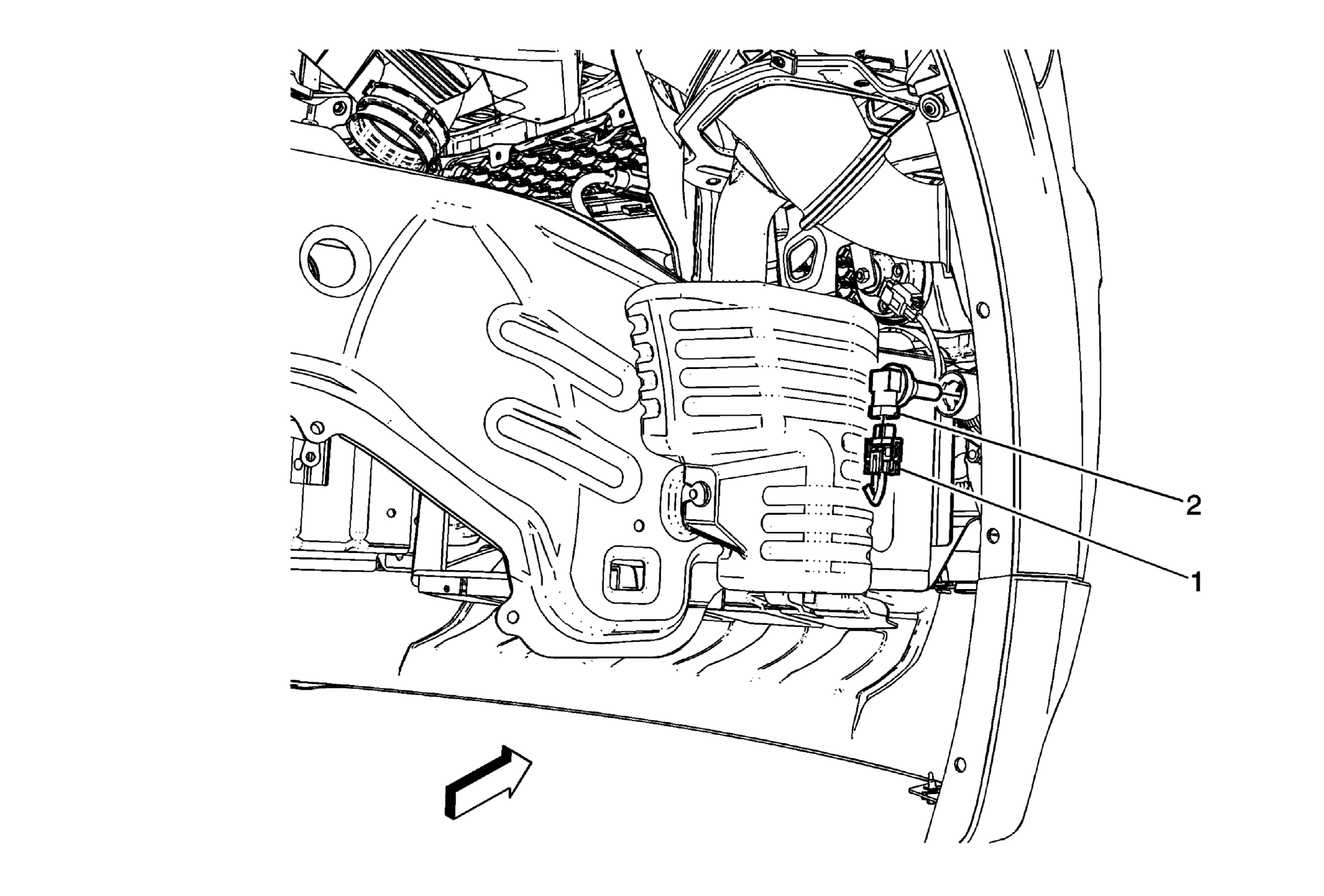

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Equinox) or Front Wheelhouse Liner Replacement (Terrain) . Disconnect the fog lamp bulb electrical connector.
1	Fog Lamp Bulb Electrical Connector
2	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure: Rotate the fog lamp bulb socket counter-clockwise and remove from the fog lamp projector.

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Equinox) or Front Wheelhouse Liner Replacement (Terrain) .
Disconnect the fog lamp bulb electrical connector.

Fog Lamp Bulb Electrical Connector

Front Fog Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure:
Rotate the fog lamp bulb socket counter-clockwise and remove from the fog lamp projector.
