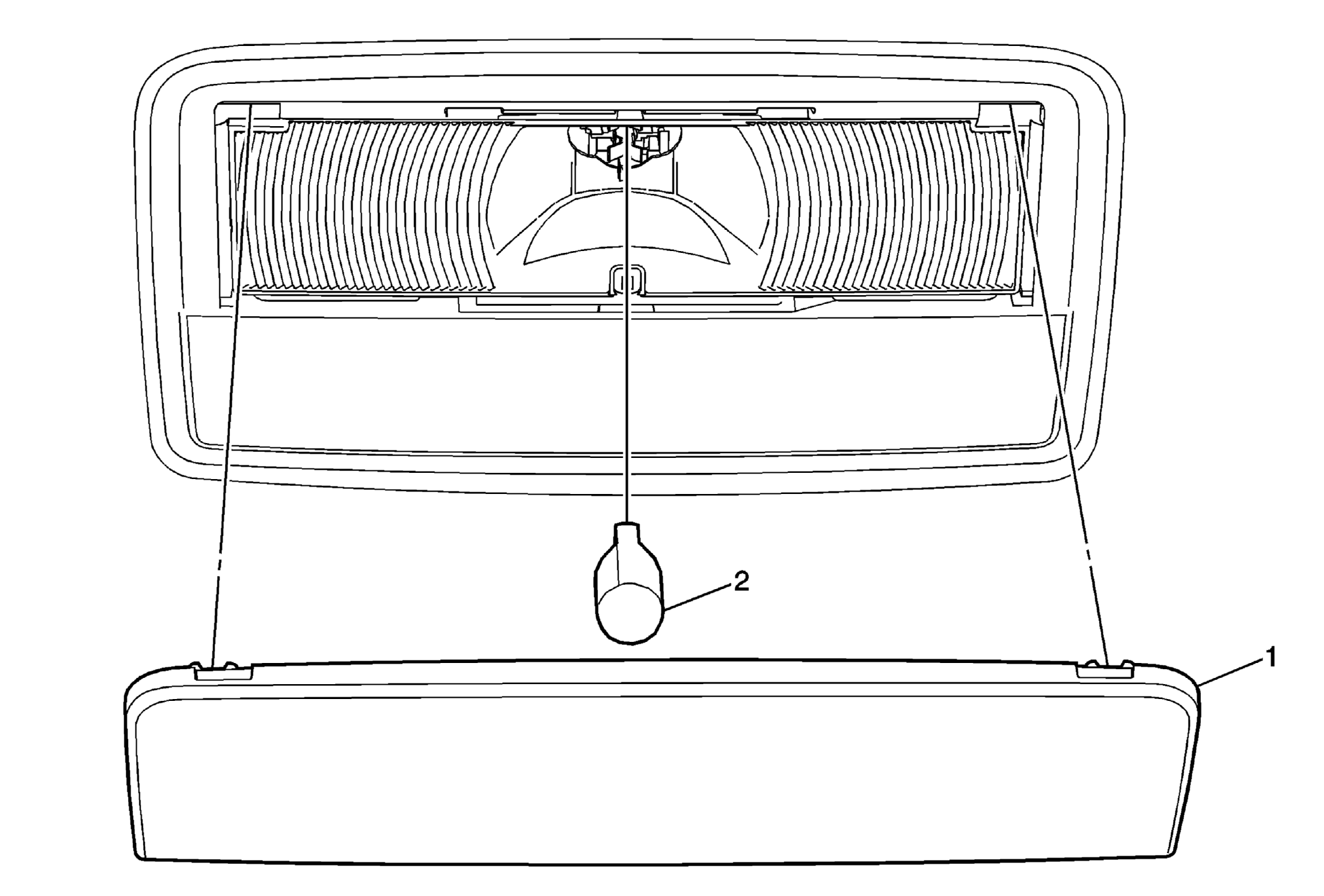

Fig 1: Courtesy Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Courtesy Lamp Lens Procedure: Using a nylon flat bladed tool release the lens to gain access to the bulb.
