Starting System and Charging System Wiring Schematics

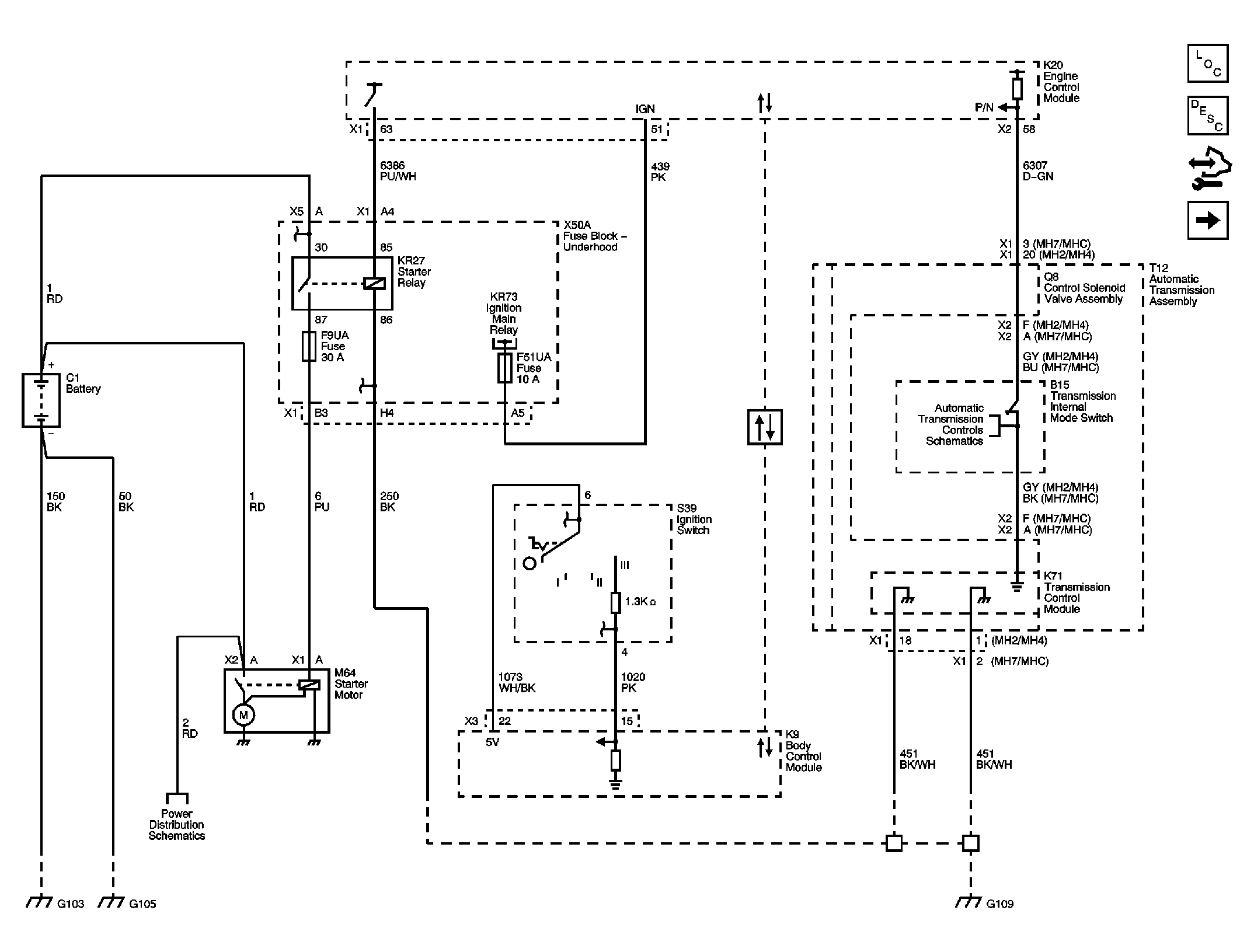

Fig 1: Starting System Wiring Schematic

GM2409743

Courtesy of GENERAL MOTORS CORP.

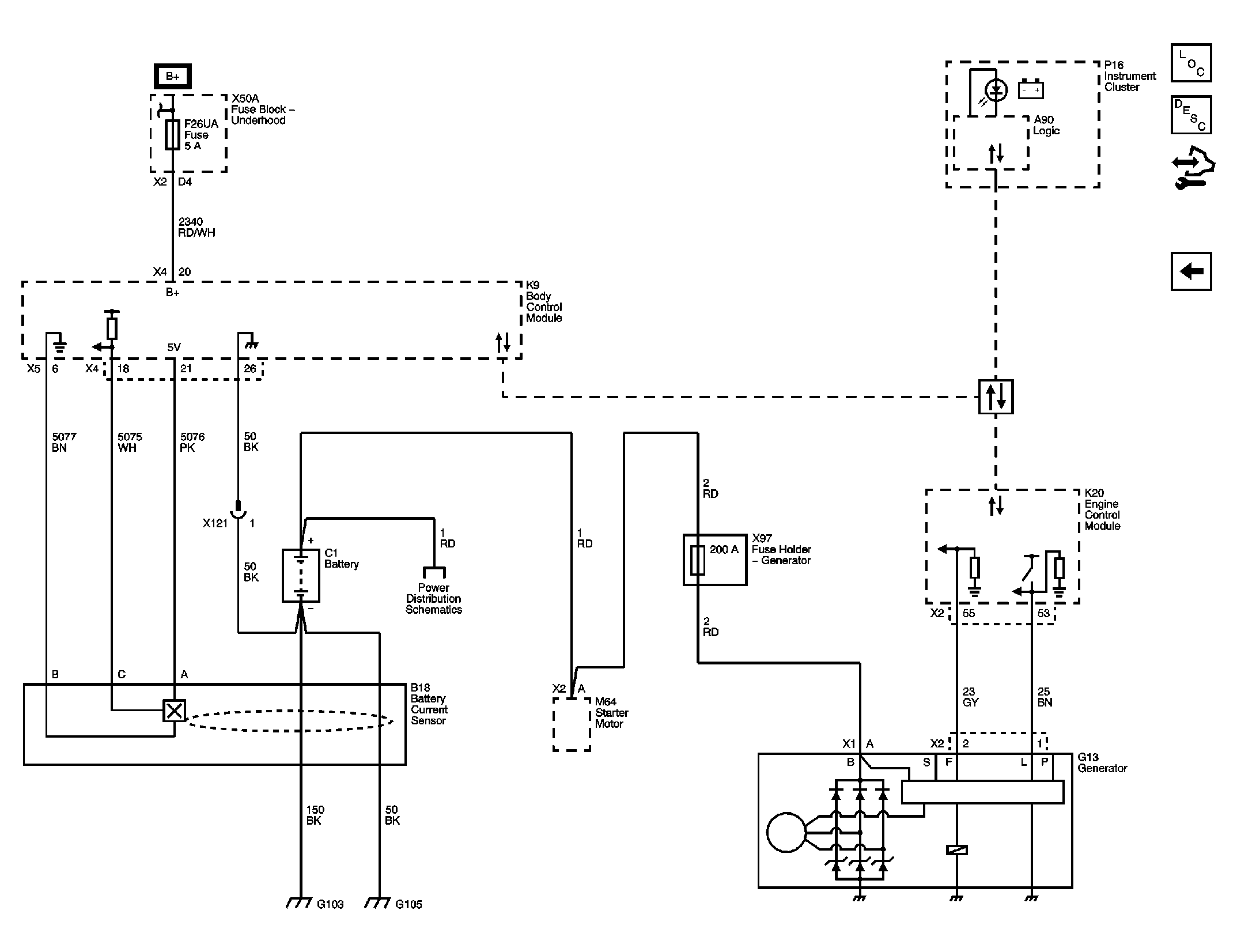

Fig 2: Charging System Wiring Schematic

GM2409748

Courtesy of GENERAL MOTORS CORP.
