Outside Rearview Mirror Glass Replacement

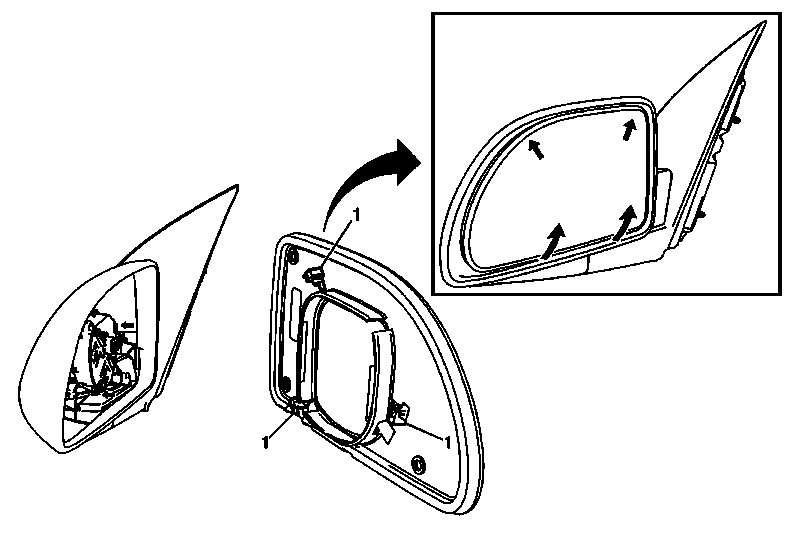

Fig 1: Outside Rearview Mirror Glass

GM2276048

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Outside Rearview Mirror Glass

WARNING: Refer to Glass and Sheet Metal Handling Warning .

Procedures

Push the top center of the mirror inward, grasp the bottom center of mirror pulling rearward until the mirror releases from the motor.
Disconnect the electrical connectors from the back of the mirror, if equipped.
When installing, align the retainers on the mirror glass with the motor retainers.
With the palm of your hand push inward until the glass lock in place.
Inspect the mirror for proper operation before installing the door trim panel.
