Remote Keyless Entry System Wiring Schematics

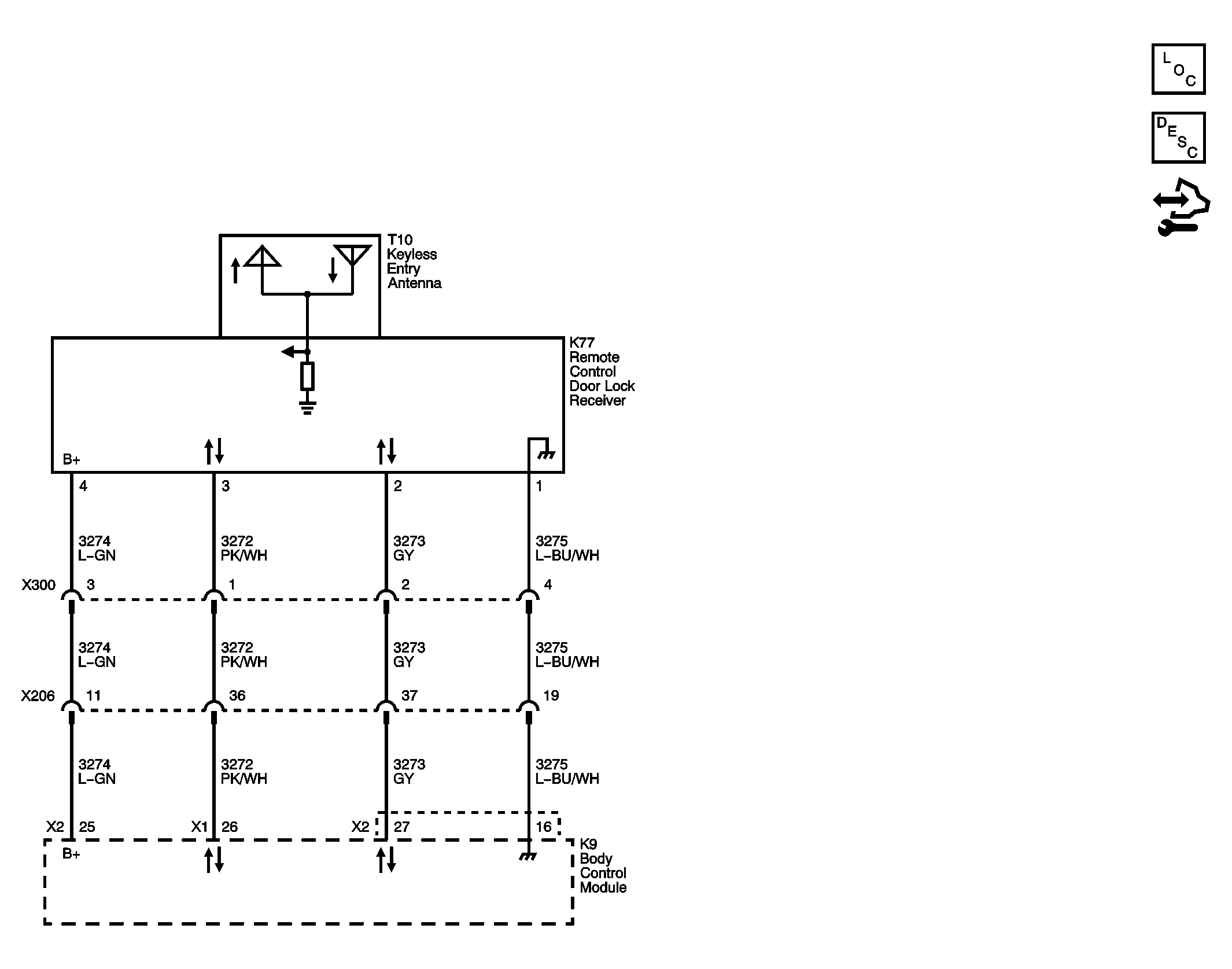

Fig 1: Remote Keyless Entry System Wiring Schematic

GM2409996

Courtesy of GENERAL MOTORS CORP.
