OnStar Wiring Schematics

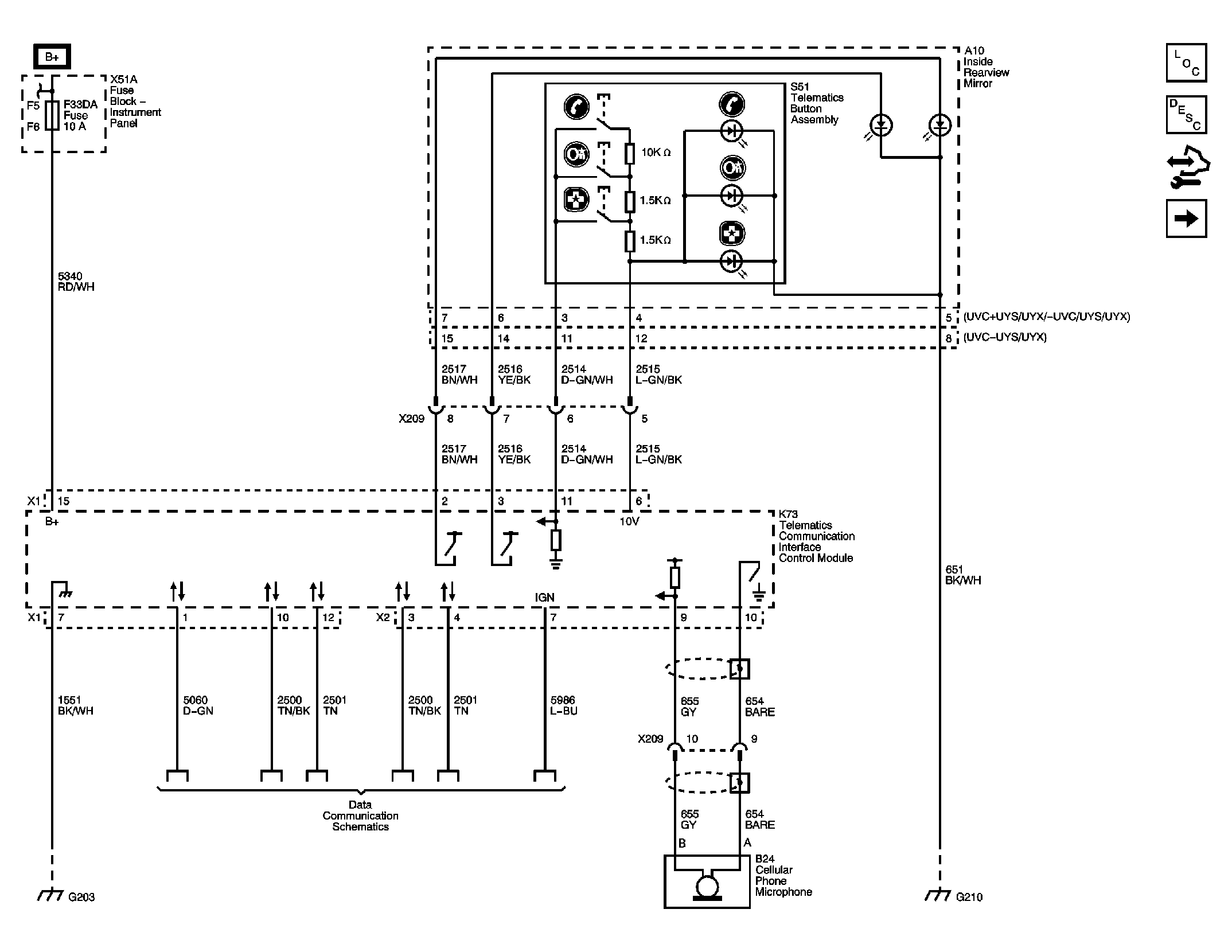

Fig 1: Power, Ground, Serial Data, Microphone, and Display (UE1) Wiring Schematic
GM2409422Courtesy of GENERAL MOTORS CORP.

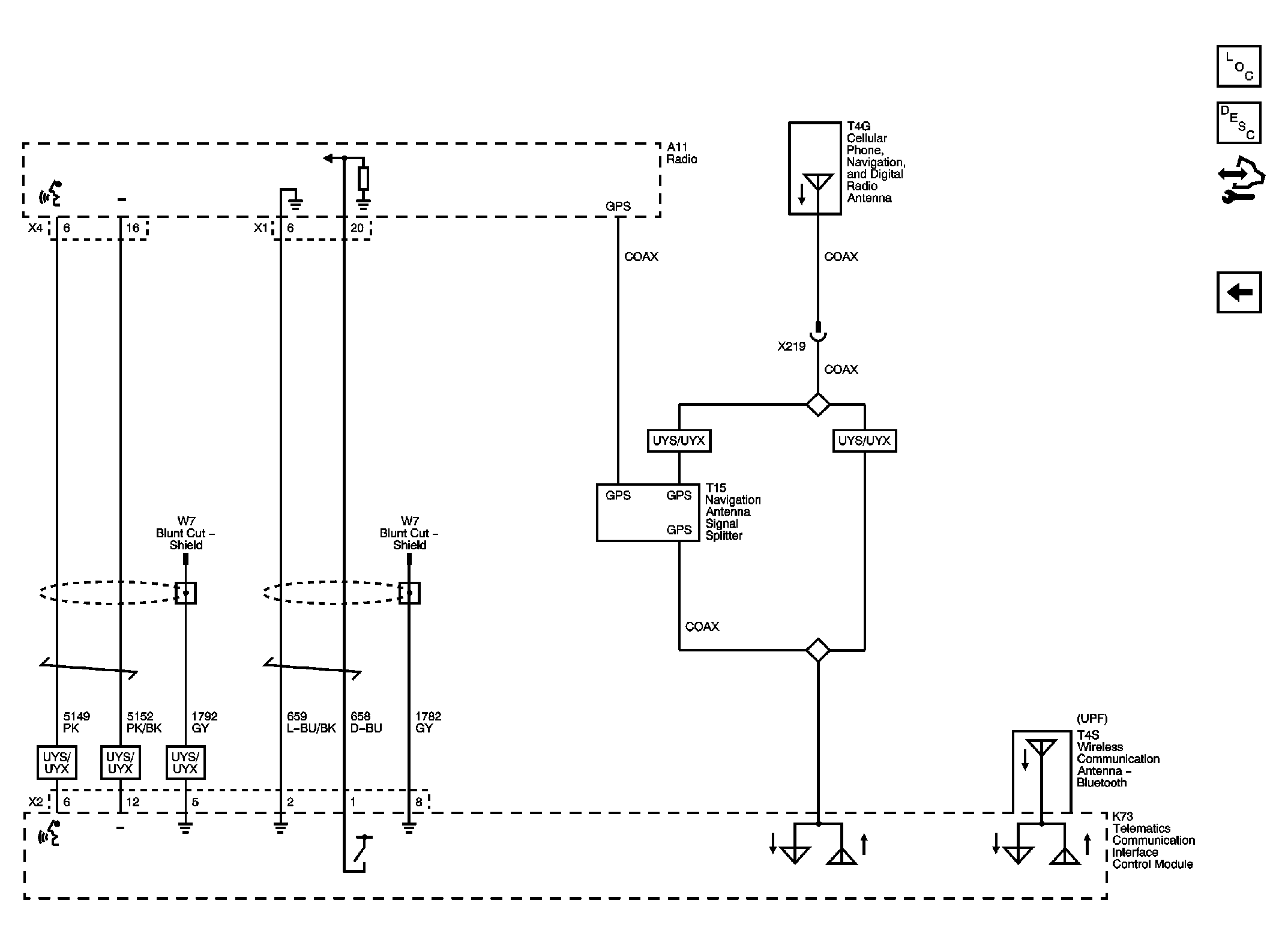

Fig 2: Antennas (UE1) Wiring Schematic
GM2409426Courtesy of GENERAL MOTORS CORP.
