Outside Rearview Mirror Folding Control Module Replacement

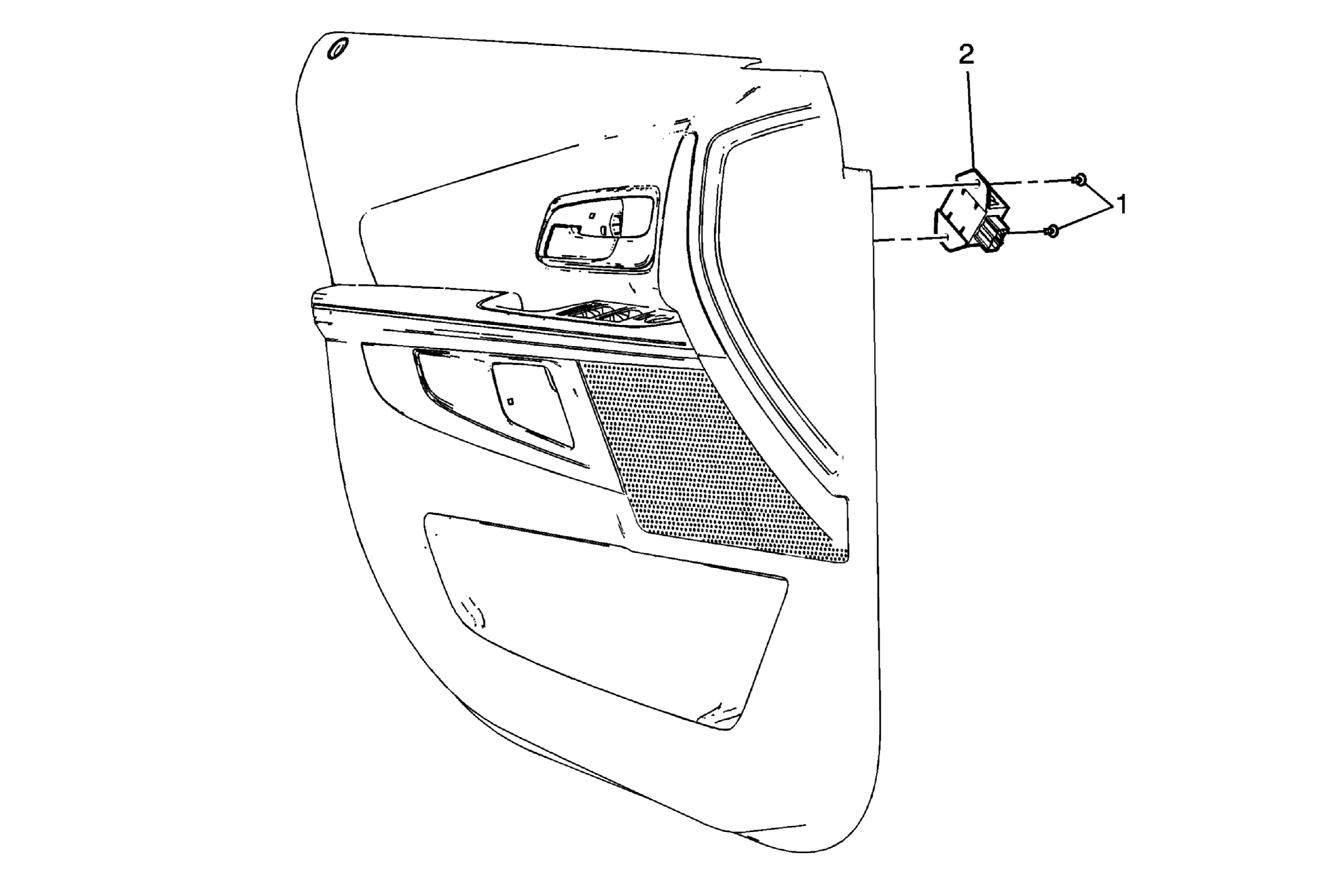

Fig 1: Outside Rearview Mirror Folding Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Outside Rearview Mirror Folding Control Module Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  2.5 N.m (22 lb ft)
2	Outside Rearview Mirror Folding Control Module Procedure:  Disconnect electrical connector.
