Theft Deterrent Module Replacement

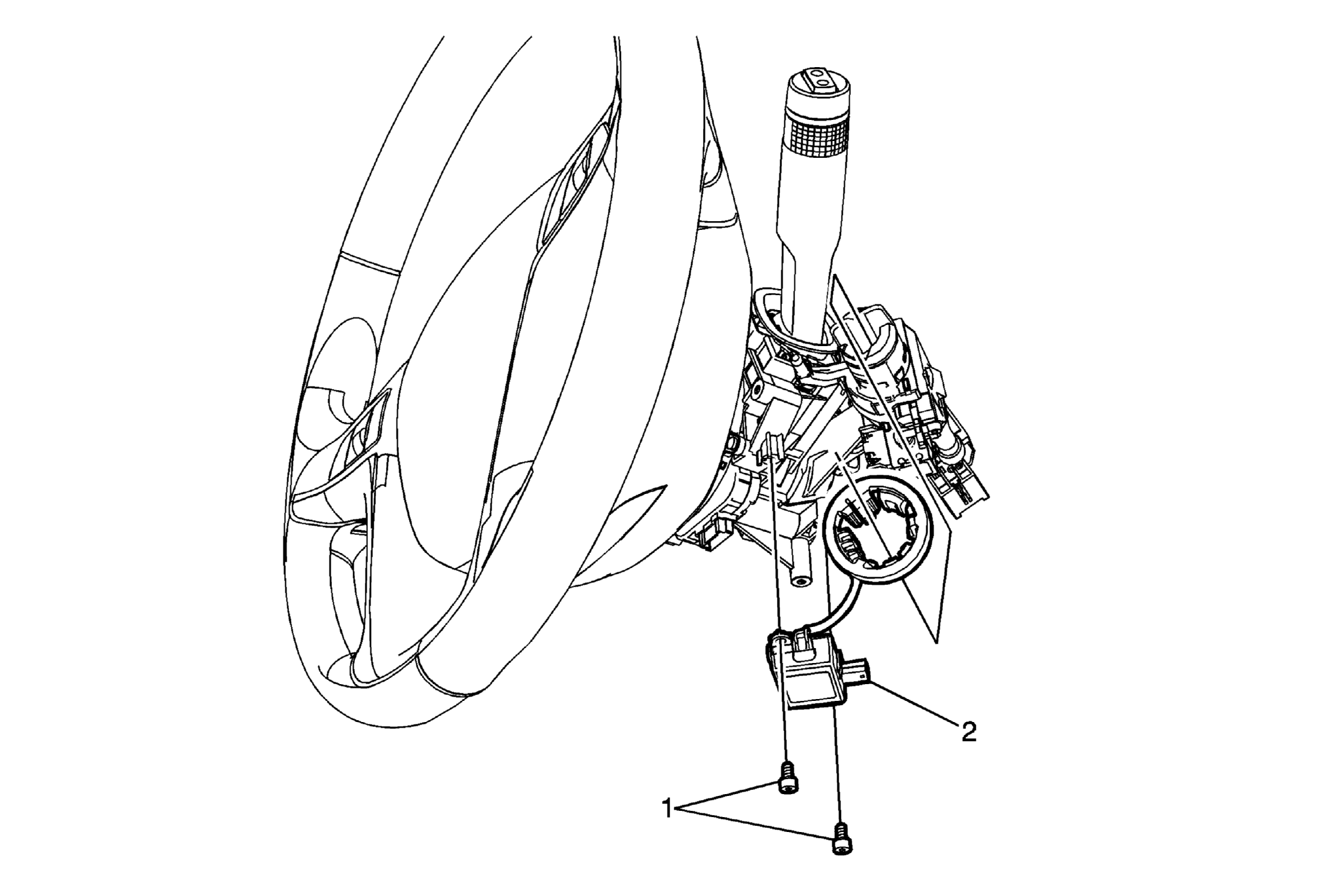

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering column shrouds. Refer to Steering Column Shroud Replacement .
1	Theft Deterrent Module Bolt/Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the steering column shrouds. Refer to Steering Column Shroud Replacement .

Theft Deterrent Module Bolt/Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Theft Deterrent Module

Procedure
