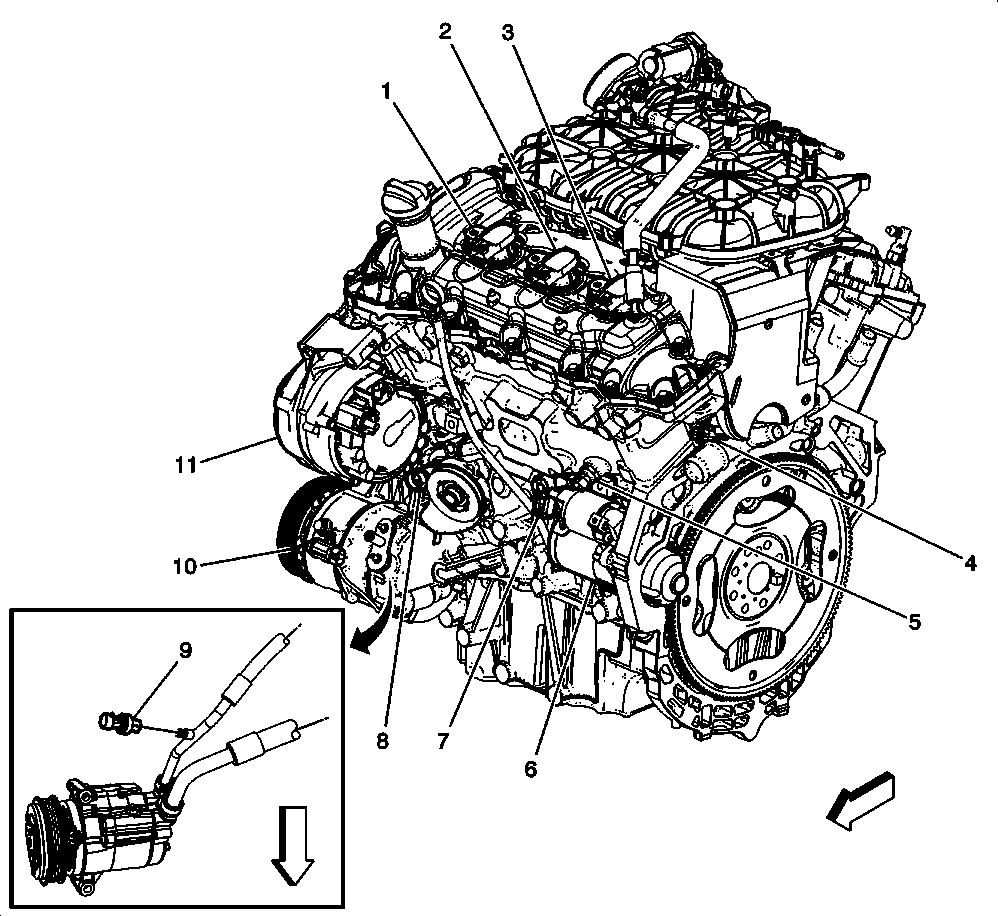

Left Front of the Engine Components (LFW)
Left Front of the Engine Components (LFW)
| Component Name | Callout |
|---|---|
| T8B Ignition Coil 2 | 1 |
| T8D Ignition Coil 4 | 2 |
| T8F Ignition Coil 6 | 3 |
| G18 High Pressure Fuel Pump | 4 |
| B34 Engine Coolant Temperature Sensor | 5 |
| M64 Starter Motor | 6 |
| B68B Knock Sensor 2 | 7 |
| B37 Engine Oil Pressure Switch | 8 |
| B1 A/C Refrigerant Pressure Sensor | 9 |
| Q2 A/C Compressor Clutch | 10 |
| G13 Generator | 11 |
