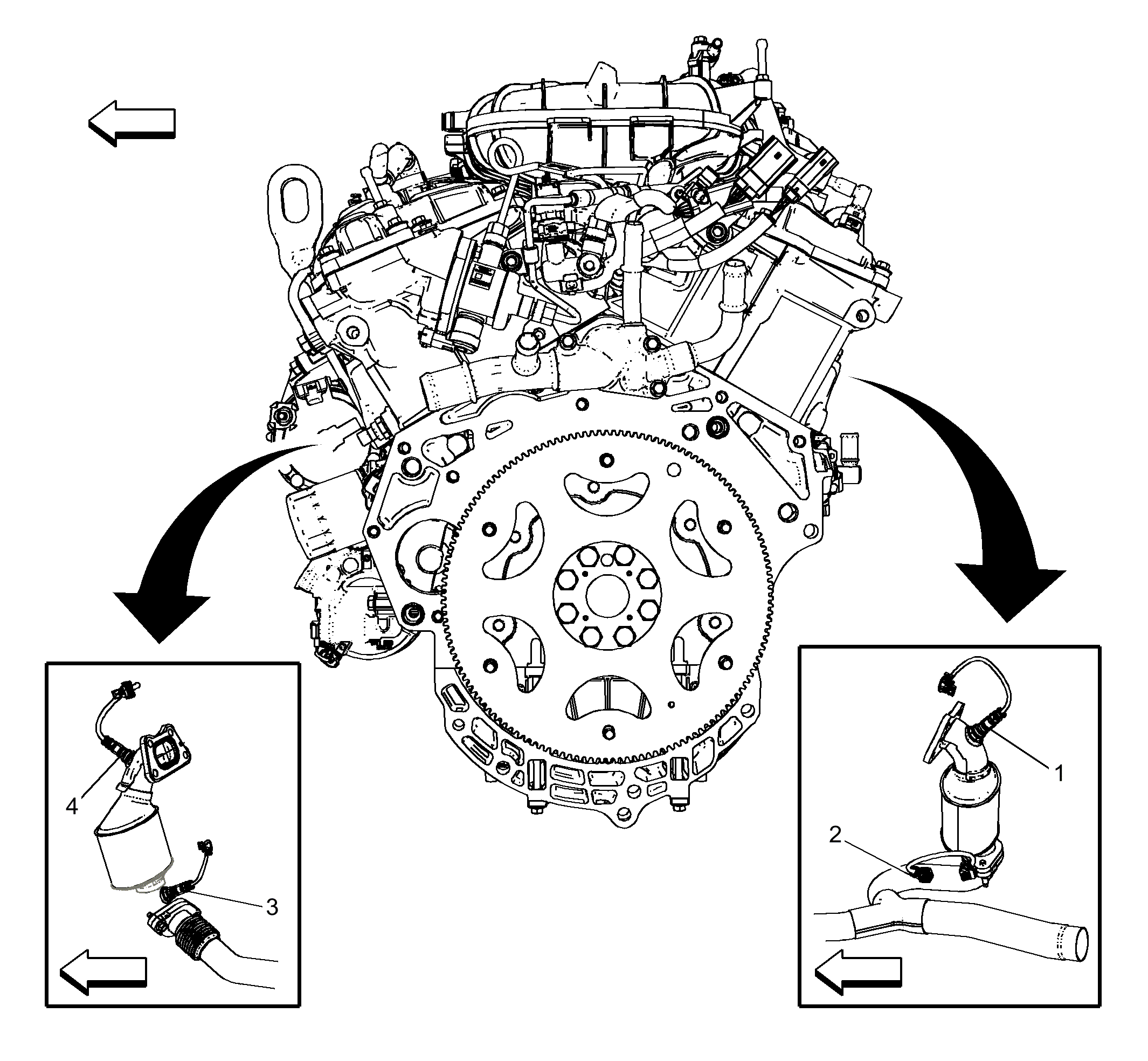

Front of the Exhaust System Components (LFW)
Front of the Exhaust System Components (LFW)
| Component Name |
Callout |
| B52C Heated Oxygen Sensor - Bank 1 Sensor 1 |
1 |
| B52D Heated Oxygen Sensor - Bank 1 Sensor 2 |
2 |
| B52F Heated Oxygen Sensor - Bank 2 Sensor 2 |
3 |
| B52E Heated Oxygen Sensor - Bank 2 Sensor 1 |
4 |
Courtesy of GENERAL MOTORS CORP.
