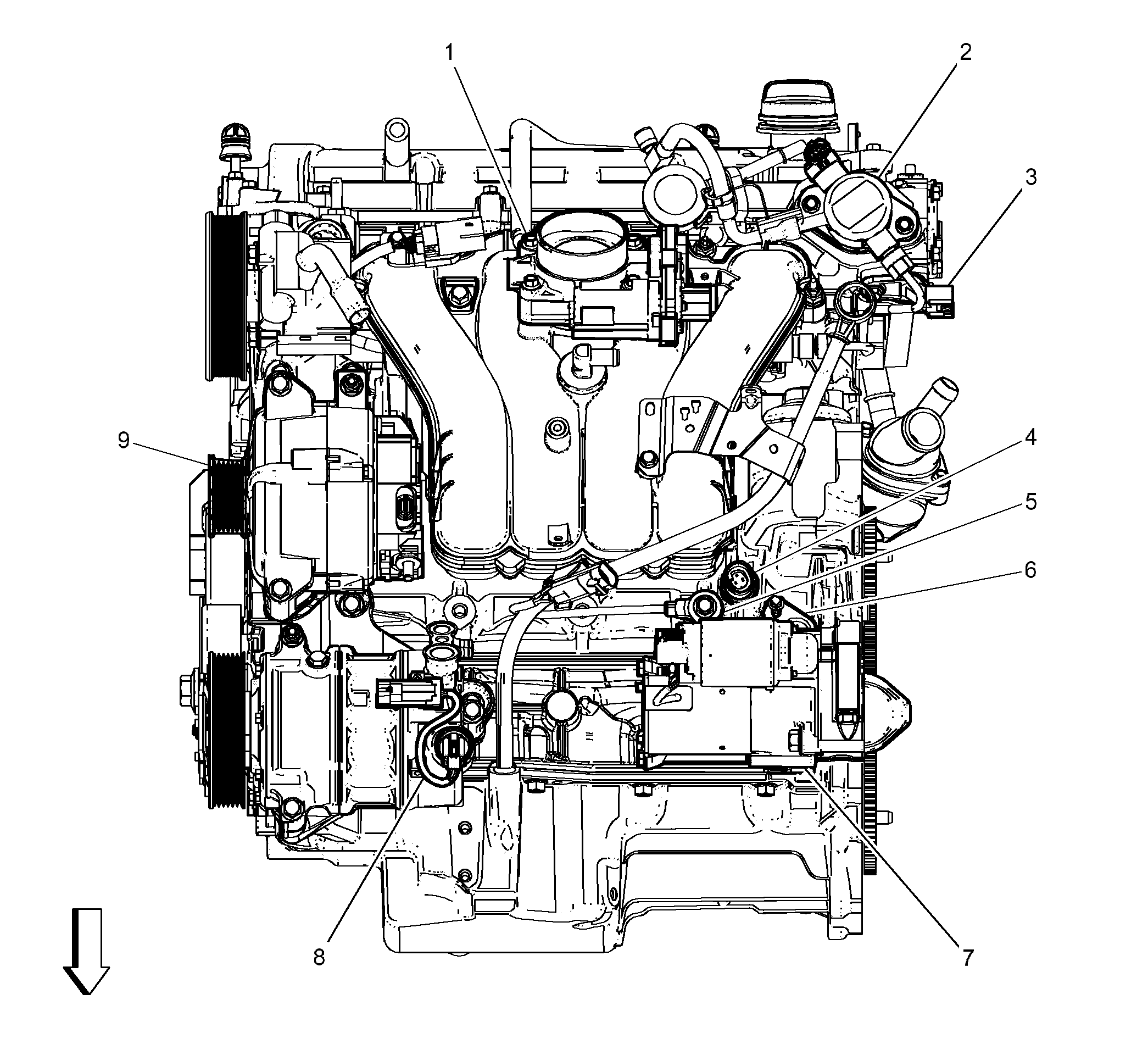

Front Engine Components (LAF 1 of 2)
Front Engine Components (LAF 1 of 2)
| Component Name |
Callout |
| Q38 Throttle Body |
1 |
| G18 High Pressure Fuel Pump |
2 |
| B23F Camshaft Position Sensor - Intake |
3 |
| B37 Engine Oil Pressure Switch |
4 |
| B68 Knock Sensor |
5 |
| B26 Crankshaft Position Sensor |
6 |
| M64 Starter Motor |
7 |
| Q2 A/C Compressor Clutch |
8 |
| G13 Generator |
9 |
Courtesy of GENERAL MOTORS CORP.
