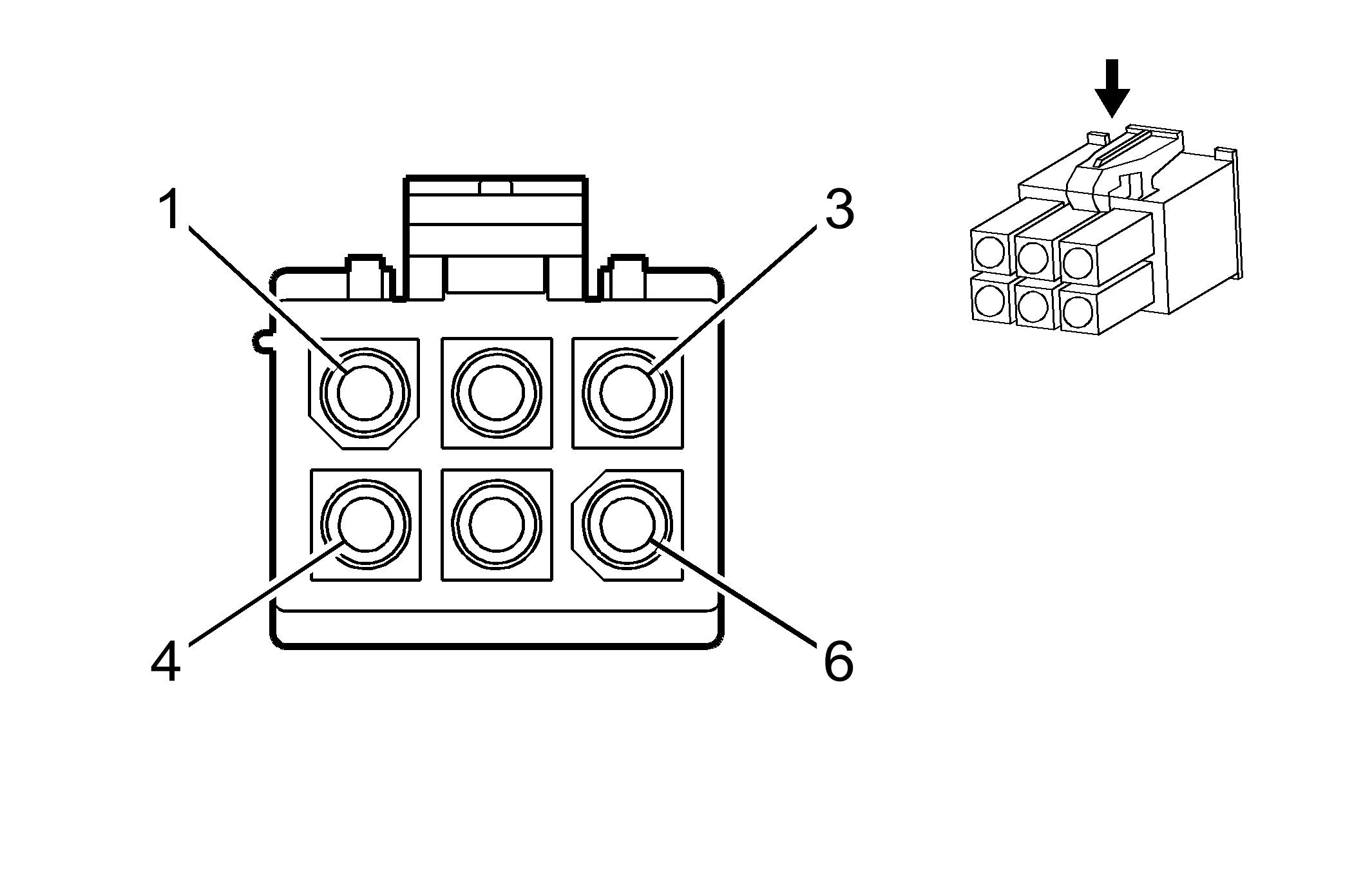

K29 Seat Heating Control Module X4 (SPO Accessory) Connector End View
Courtesy of GENERAL MOTORS CORP. K29 Seat Heating Control Module X4 (SPO Accessory)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.8 OG |
- |
Retained Accessory Power Fuse Supply Voltage |
| 3 |
0.8 RD |
- |
Retained Accessory Power Fuse Supply Voltage |
| 4 |
0.8 BK |
- |
Ground |
| 5 |
0.8 BK |
- |
Ground |
| 6 |
0.8 RD |
- |
Retained Accessory Power Fuse Supply Voltage |
Connector Part Information
- Harness Type: SPO Seat Heating Power Extension
- OEM Connector: 172339-1
- Service Connector: Pending
- Description: 6-Way F Mini-Universal MATE-N-LOK (NA)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 172339-1
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
