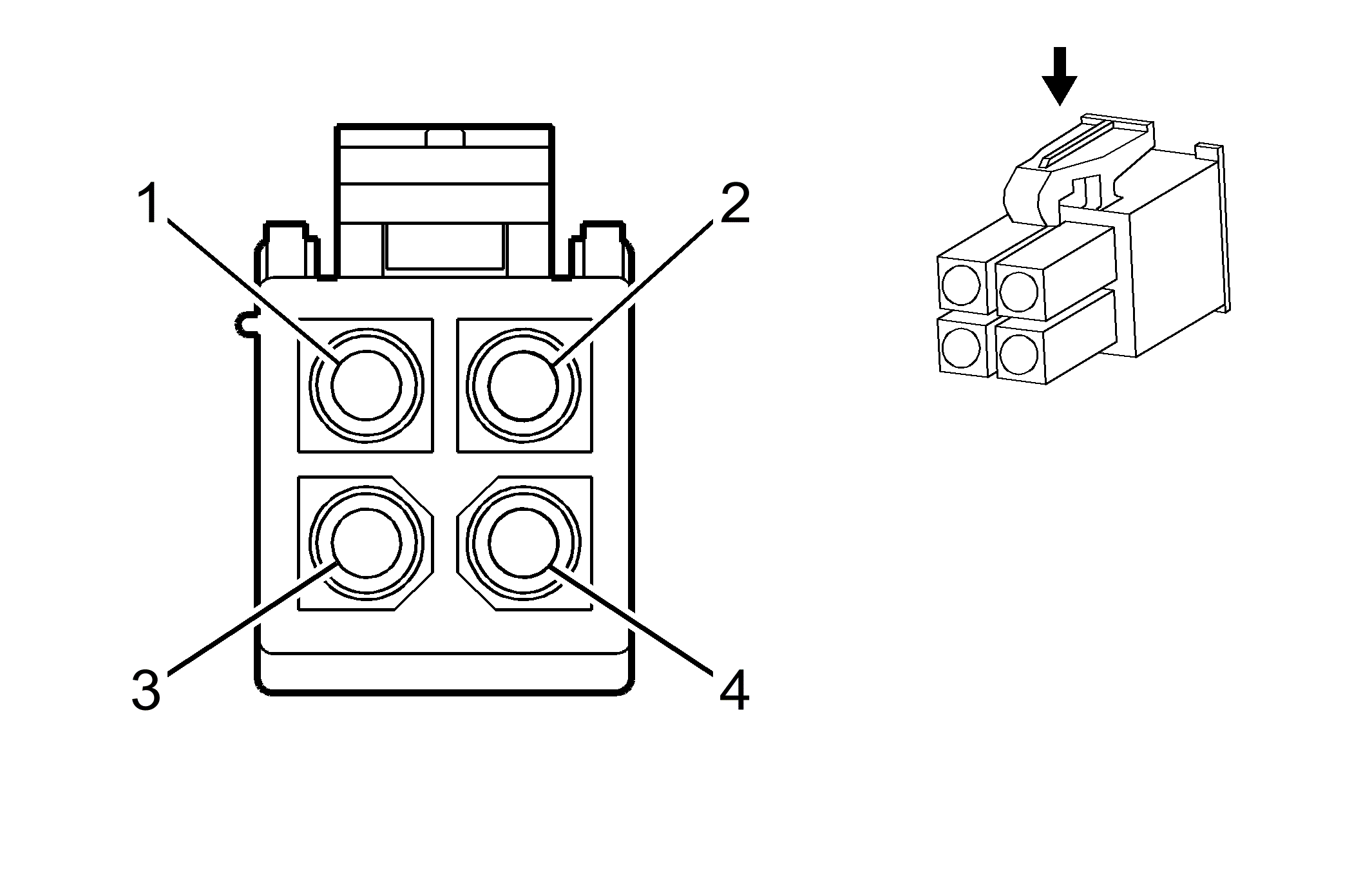

K29 Seat Heating Control Module X1 (SPO Accessory) Connector End View
Courtesy of GENERAL MOTORS CORP. K29 Seat Heating Control Module X1 (SPO Accessory)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 RD |
- |
Driver Heated Seat Cushion Element Supply Voltage |
| 2 |
0.8 D-BU |
- |
Driver Heated Seat Back Element Control |
| 3 |
0.8 GY |
- |
Driver Heated Seat Cushion Temperature Sensor Signal |
| 4 |
0.8 GY |
- |
Driver Heated Seat Cushion Temperature Sensor Low Reference |
Connector Part Information
- Harness Type: SPO Seat Heating Extension
- OEM Connector: 172338-1
- Service Connector: Pending
- Description: 4-Way F Mini-Universal MATE-N-LOK (NA)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 172338-1
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
