Steering Wheel Secondary/Configurable Control Wiring Schematics

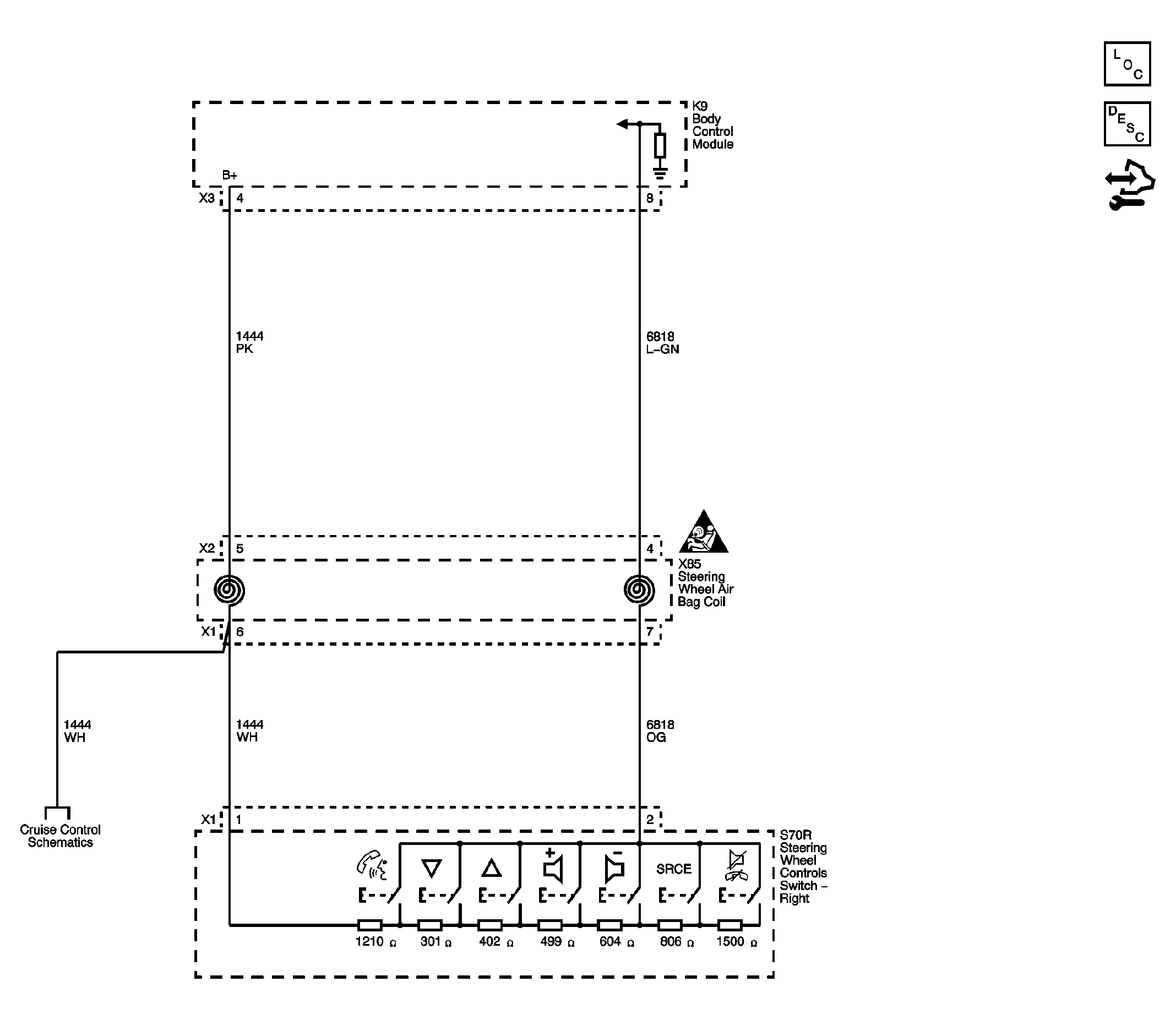

Fig 1: UK3 Wiring Schematic

GM2409455

Courtesy of GENERAL MOTORS CORP.
