Digital Video Antenna Cable Replacement

Preliminary Procedures

1. Remove the radio. Refer to Radio Replacement .
2. Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox) or Driver Knee Bolster Reinforcement Replacement (Terrain) .
3. Remove the instrument panel compartment door. Refer to Instrument Panel Compartment Door Replacement (Equinox) or Instrument Panel Compartment Door Replacement (Terrain)
4. Remove the windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement

Procedure

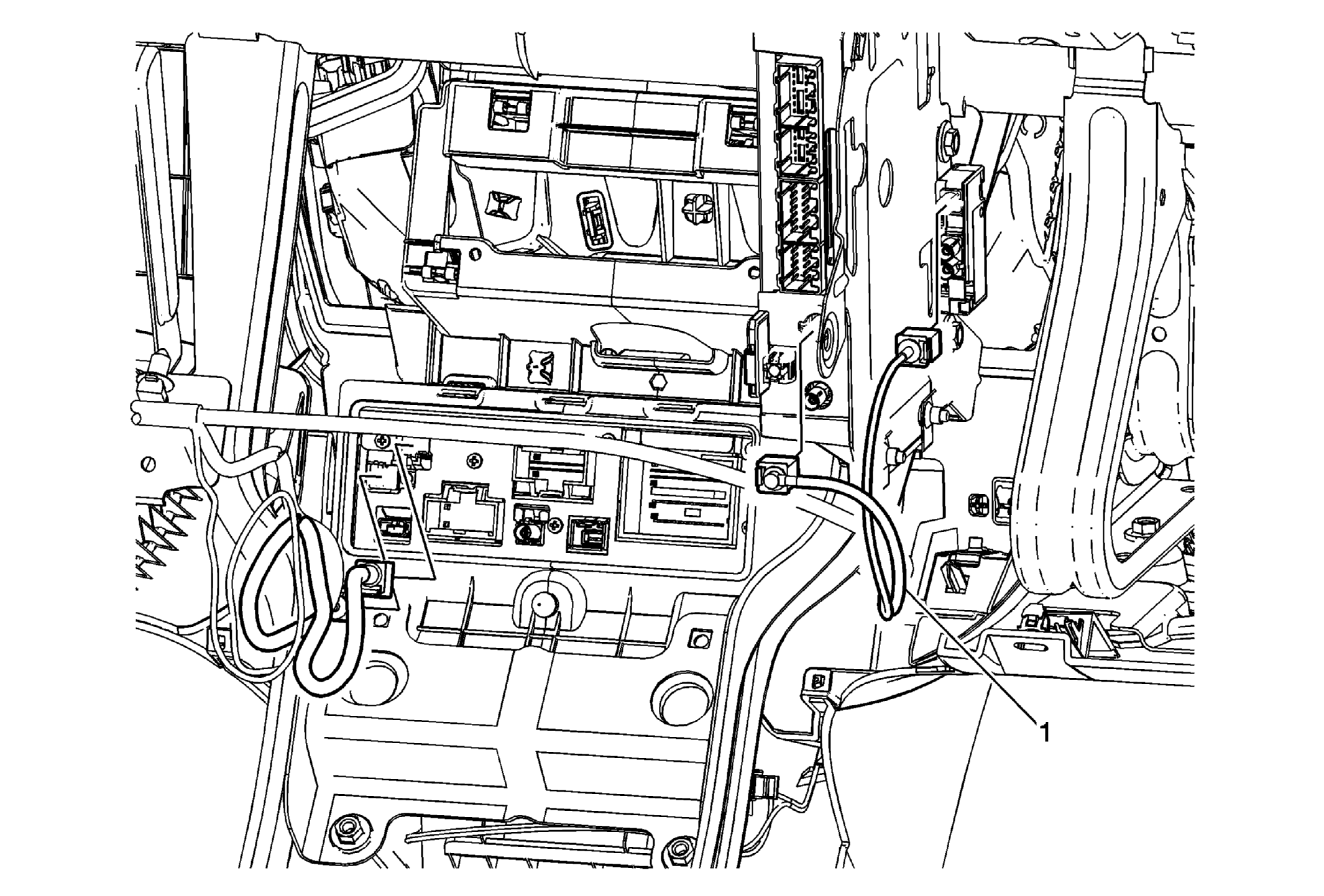

1. Disconnect all of the electrical connectors. Cable connects to the radio, communication interface module, and the navigation signal splitter.
2. Note the cable routing prior to removal for installation purposes.
