Trailer Brake Control Wiring Schematics
Trailer Brake Control Wiring Schematics

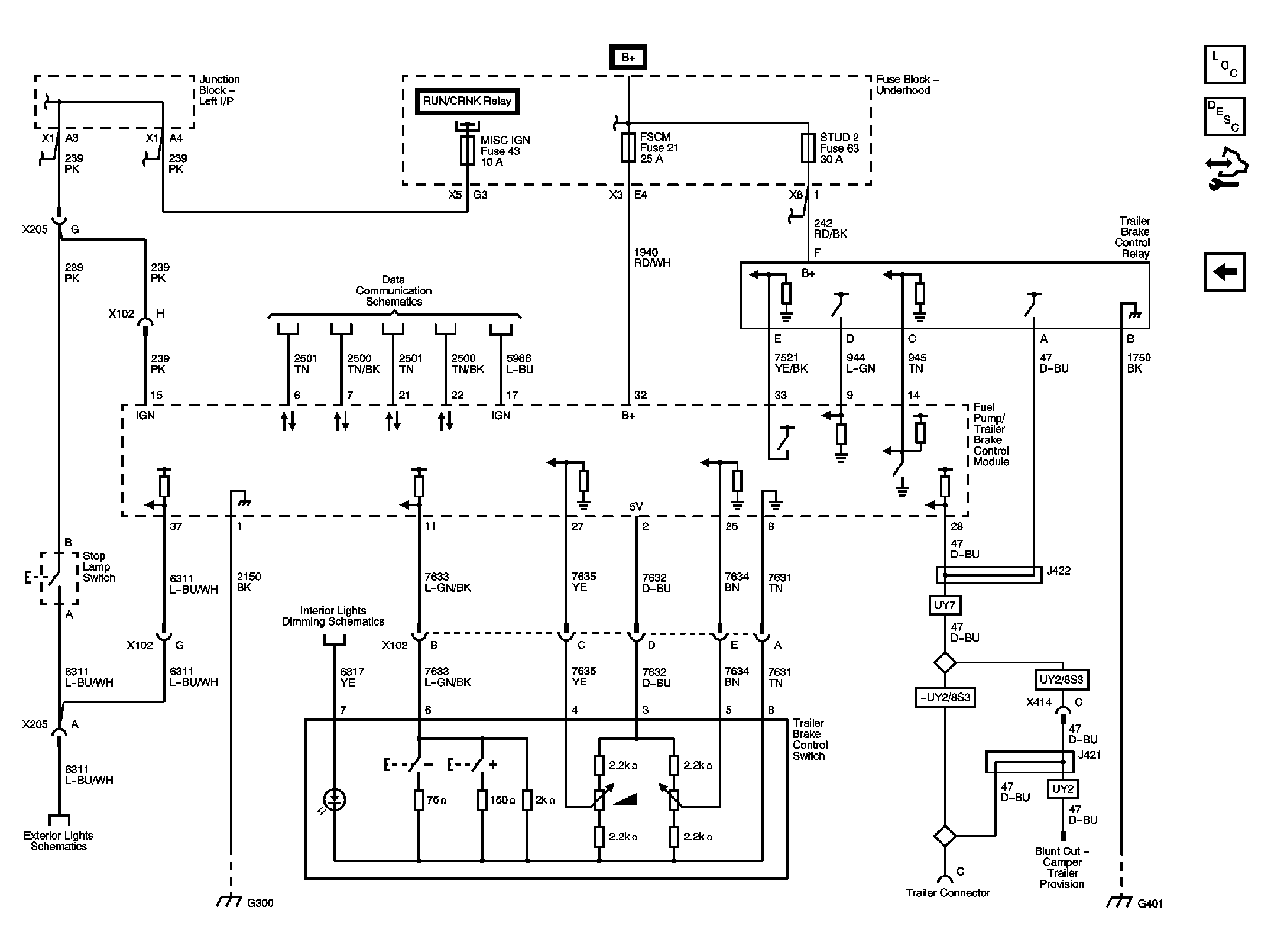

Fig 1: Trailer Brake Control Wiring Schematic (JL1 Except 10 Series)
Courtesy of GENERAL MOTORS CORP.

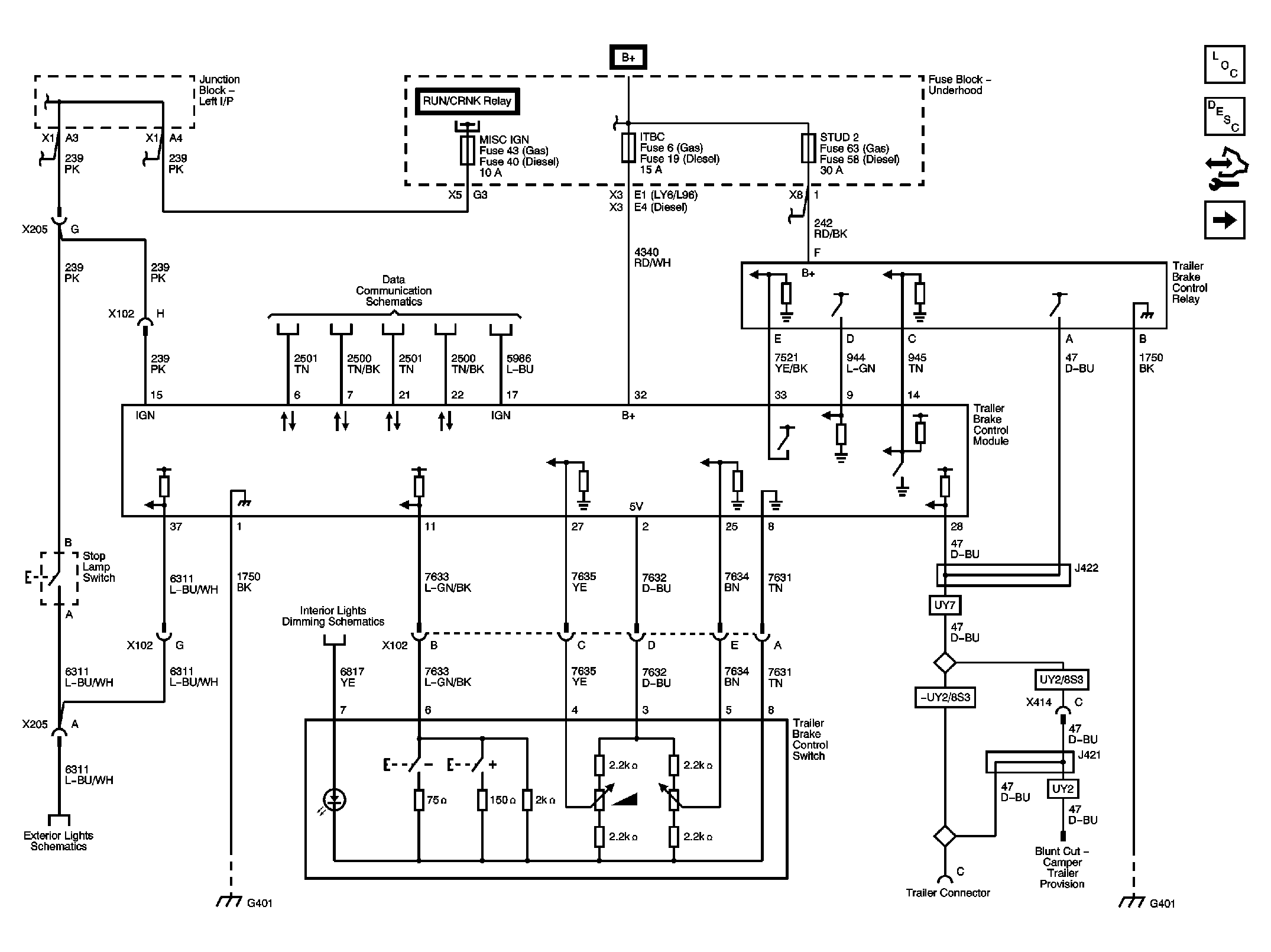

Fig 2: Trailer Brake Control Wiring Schematic (JL1 Except 10 Series)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
