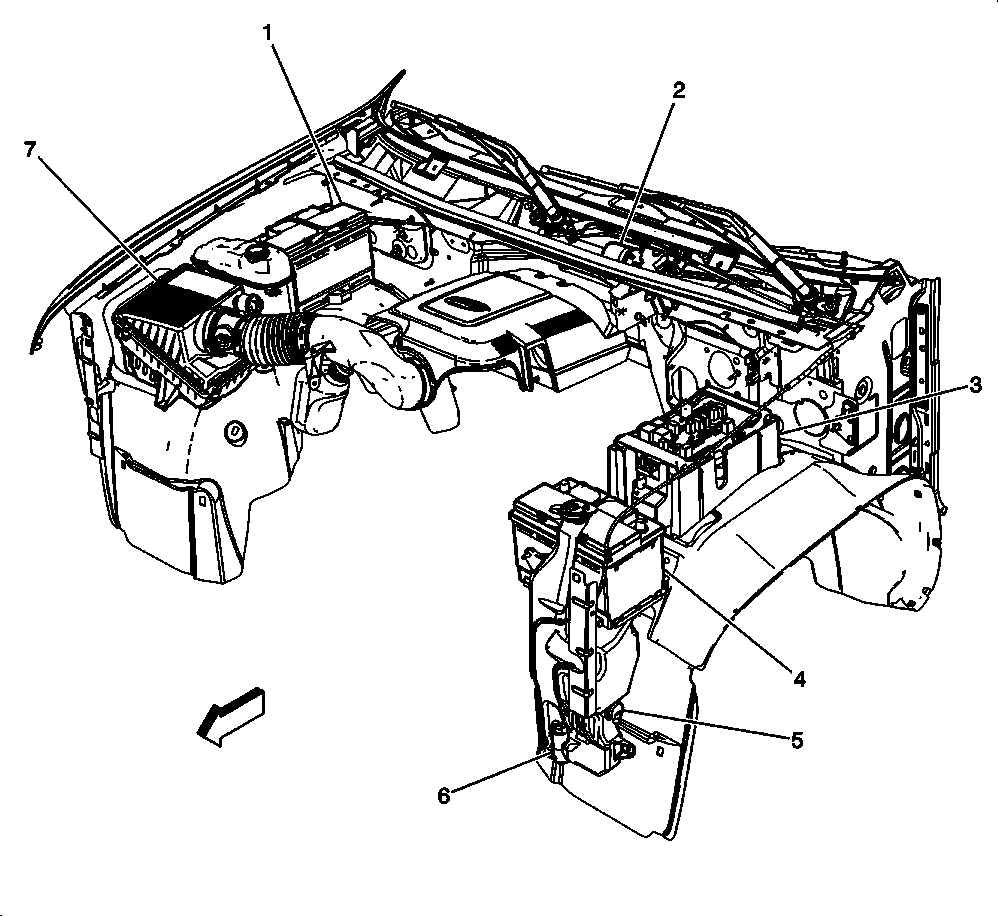

Identifying Engine Compartment Components (Right Rear)
Identifying Engine Compartment Components (Right Rear)
| Component Name |
Callout |
| Battery - Right |
1 |
| Windshield Wiper Motor |
2 |
| Fuse Block - Underhood |
3 |
| Battery - Left (Diesel, 6A6 or T92) |
4 |
| Windshield Washer Fluid Level Switch |
5 |
| Windshield Washer Fluid Pump |
6 |
| Air Cleaner Box |
7 |
Courtesy of GENERAL MOTORS CORP.
