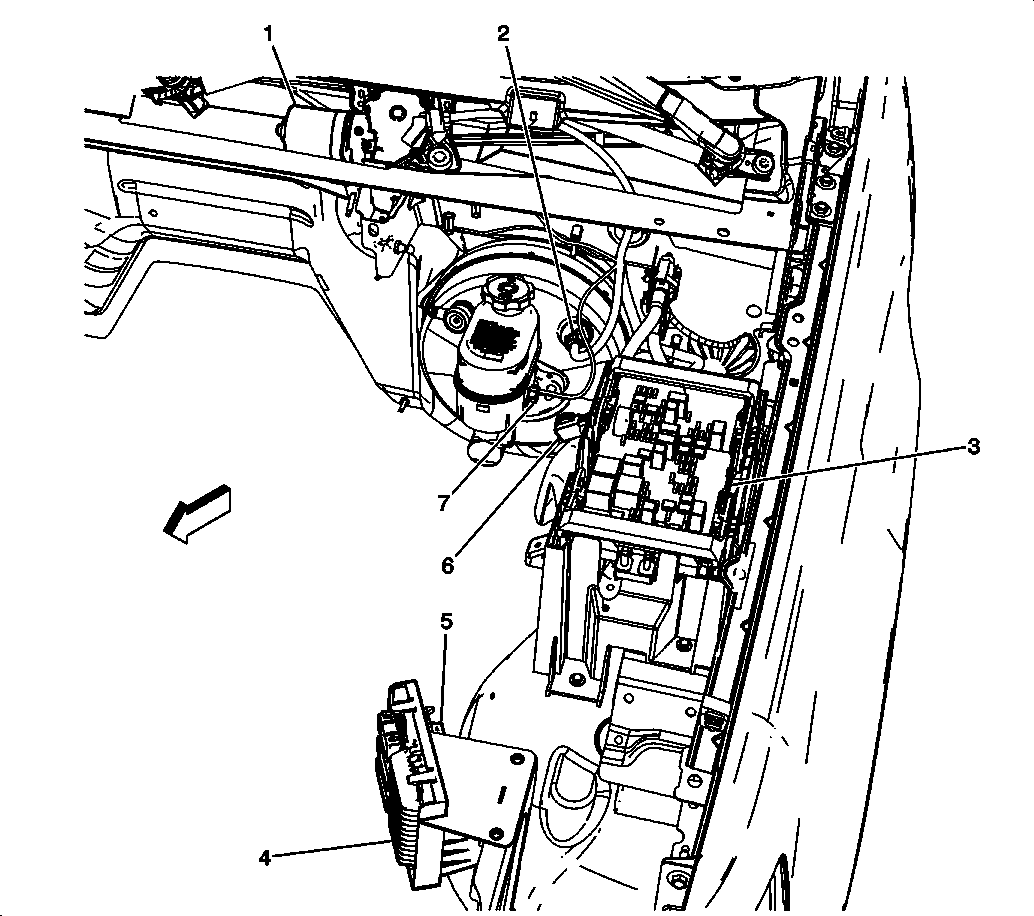

Identifying Engine Compartment Components (Left Rear)
Identifying Engine Compartment Components (Left Rear)
| Component Name | Callout |
|---|---|
| Windshield Wiper Motor | 1 |
| Power Brake Booster (JL4) | 2 |
| Fuse Block - Underhood | 3 |
| Engine Control Module (ECM) | 4 |
| Transmission Control Module (TCM) (M30, M70 or MW7) | 5 |
| Brake Booster Vacuum Sensor (JL4)/Brake Master Cylinder Pressure Sensor (JL1) | 6 |
| Brake Fluid Level Switch | 7 |
