Data Communication Wiring Schematics

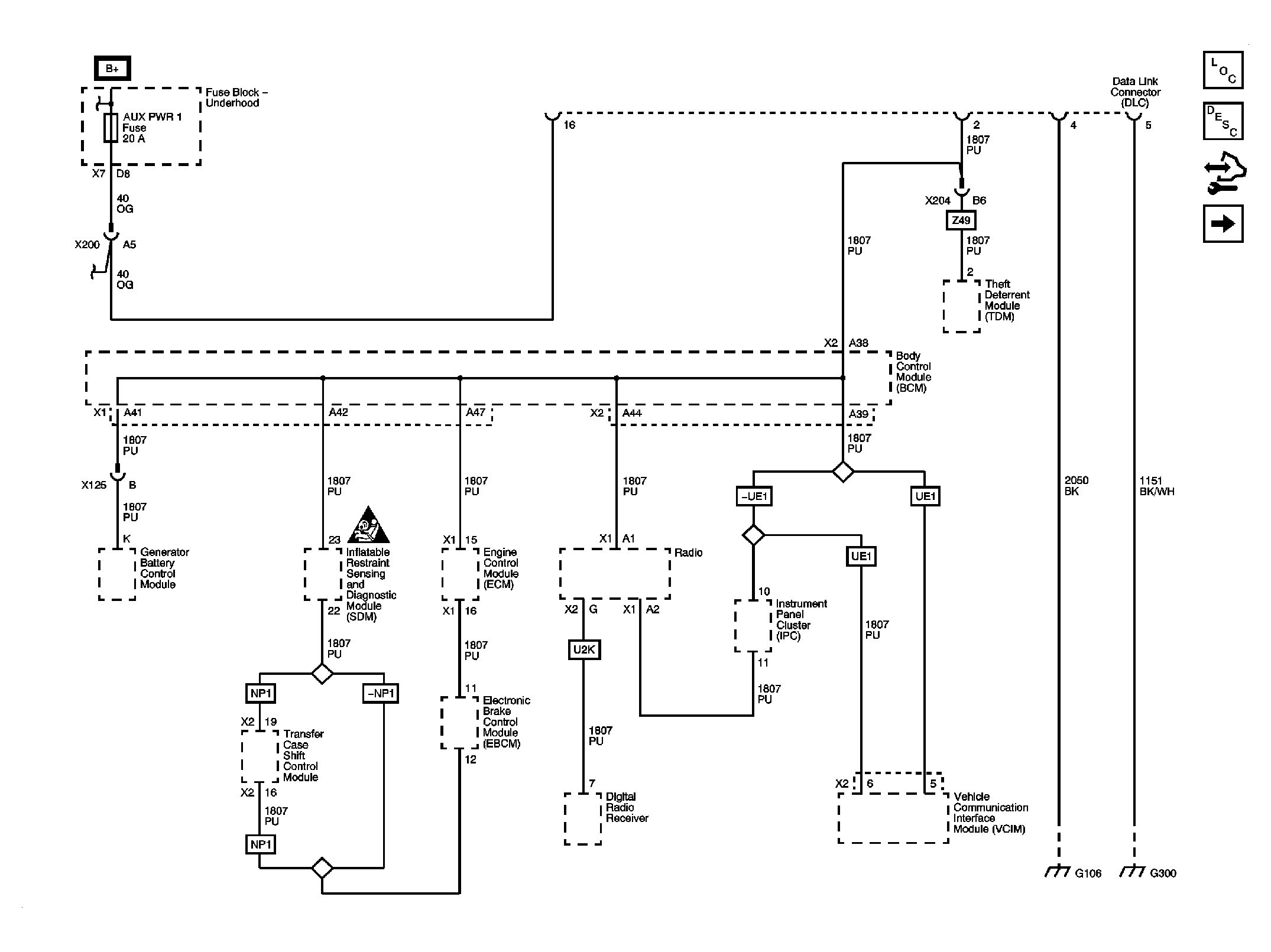

Fig 1: Class 2 Serial Data Wiring Schematic

GM2396626

Courtesy of GENERAL MOTORS CORP.

Fig 2: High Speed GMLAN Serial Data Wiring Schematic

GM2396630

Courtesy of GENERAL MOTORS CORP.
