Home >> GMC >> 2011 >> Acadia SLE, FWD >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Wiring Schematics >> Immobilizer Wiring Schematics >> Immobilizer

Immobilizer Wiring Schematics: Immobilizer

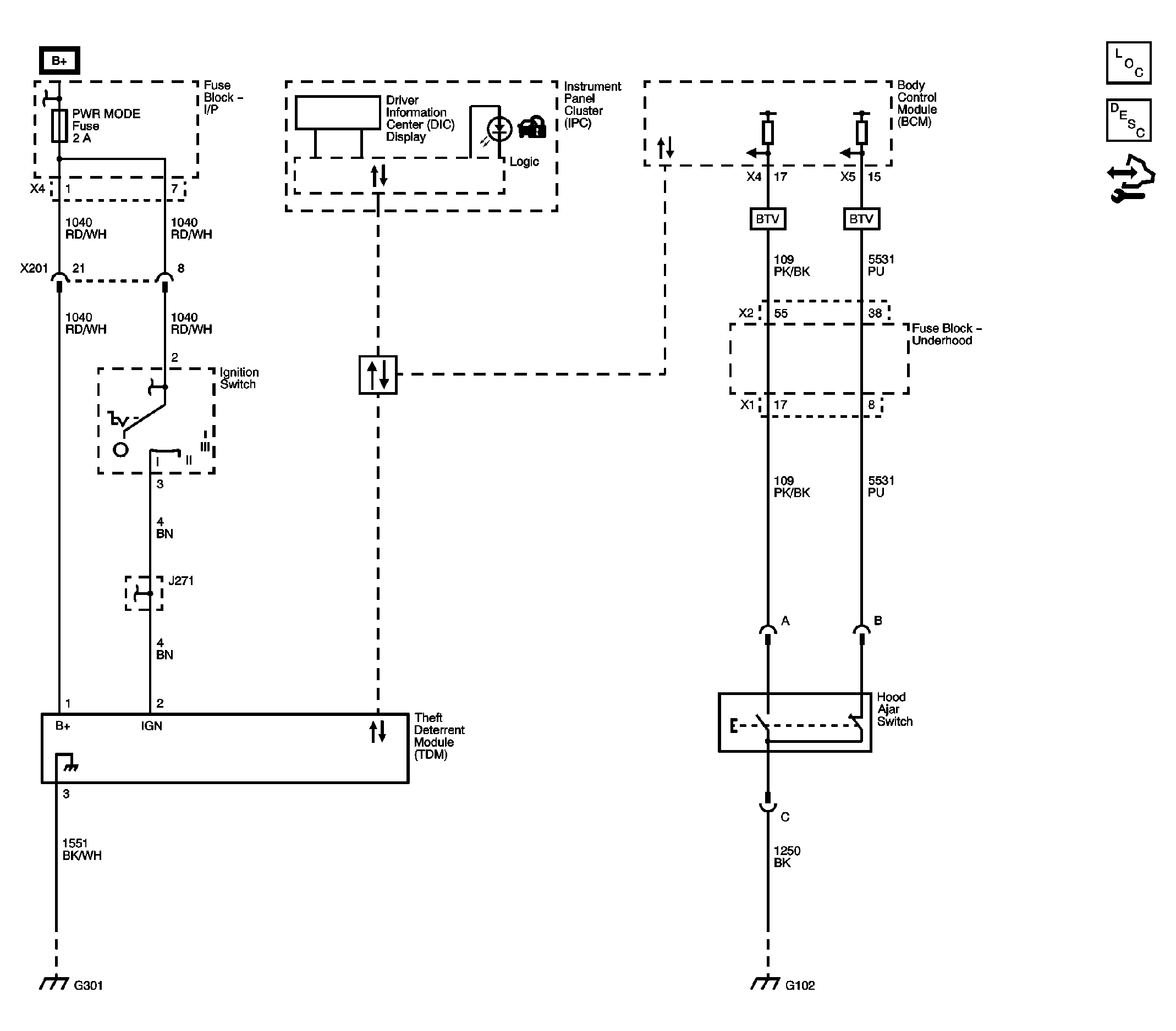

Fig 1: Immobilizer Wiring Schematic

GM2382049

Courtesy of GENERAL MOTORS CORP.
