Installation Procedure

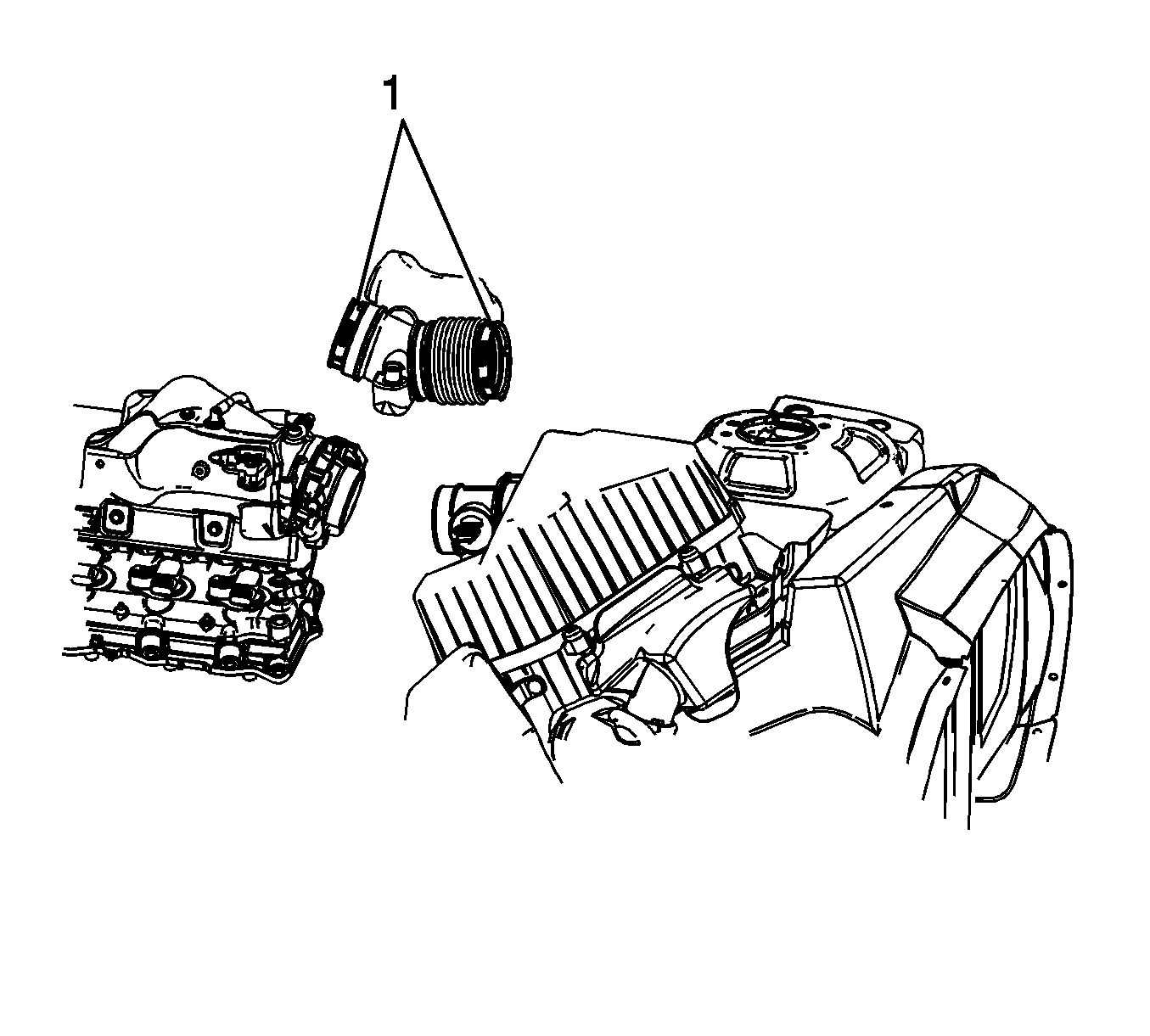

    Fig 1: View Of Air Cleaner Outlet Duct Clamps
    GM1860658Courtesy of GENERAL MOTORS CORP.
  1. Loosely Install the air cleaner outlet duct then install the fuel injector sight shield to ensure proper clearance.
  2. Remove the fuel injector sight shield.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the air cleaner outlet duct clamps (1) to 4 N.m (35 lb in)at the MAF/IAT sensor and throttle body.
    4. Fig 2: Identifying Fresh Air Tube & Related Components
    GM2065375Courtesy of GENERAL MOTORS CORP.
  4. Connect the PCV quick disconnect (2). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
