Moveable Window Wiring Schematics (AXE): Rear

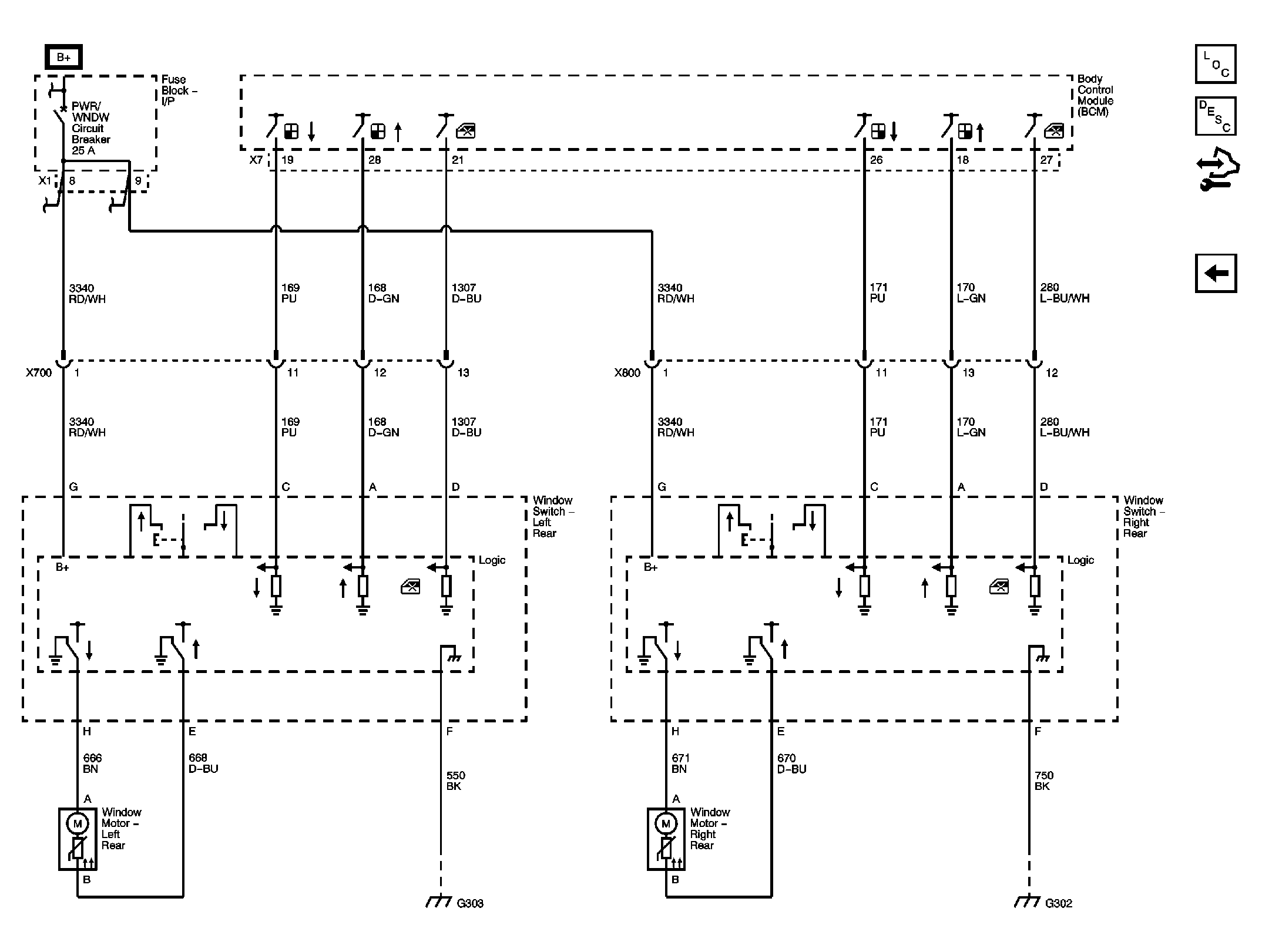

Fig 1: Rear Moveable Window Wiring Schematic (AXE)

GM2381497

Courtesy of GENERAL MOTORS CORP.
