Instrument Panel/Center Console Component Views

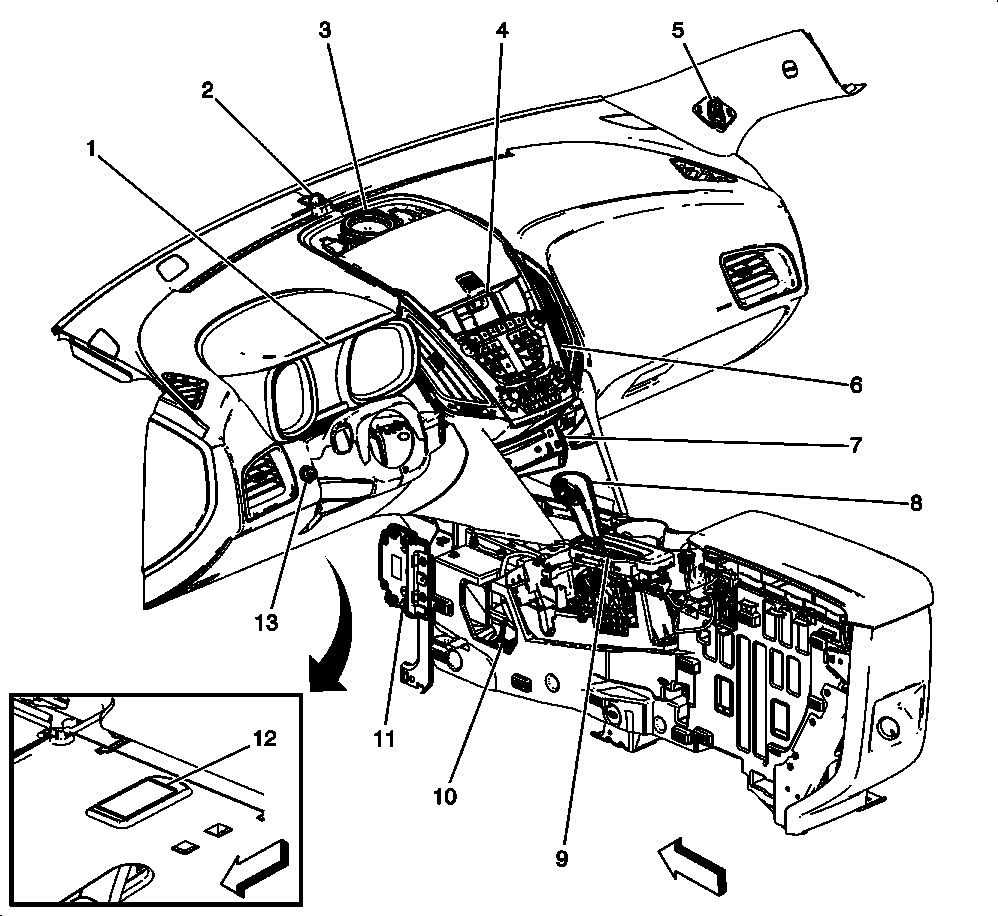

Fig 1: Identifying Left Side of the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P16 Instrument Cluster
2	B10B Ambient Light/Sunload Sensor (C68) or B10 Ambient Light Sensor (C67)
3	P19B Speaker - Center Instrument Panel (UZ8)
4	P17 Info Display Module
5	P19V Speaker - Right Front Tweeter
6	A20 Radio/HVAC Controls
7	A11 Radio
8	S3 Transmission Shift Lever
9	P2 Transmission Shift Lever Position Indicator
10	T11 Multimedia Player Interface Module (KTA)
11	K108 Active Noise Cancellation Module (VQN)
12	E8J Instrument Panel Courtesy Lamp - Left (LTZ or SLT)
13	S36 Instrument Panel Dimmer Switch

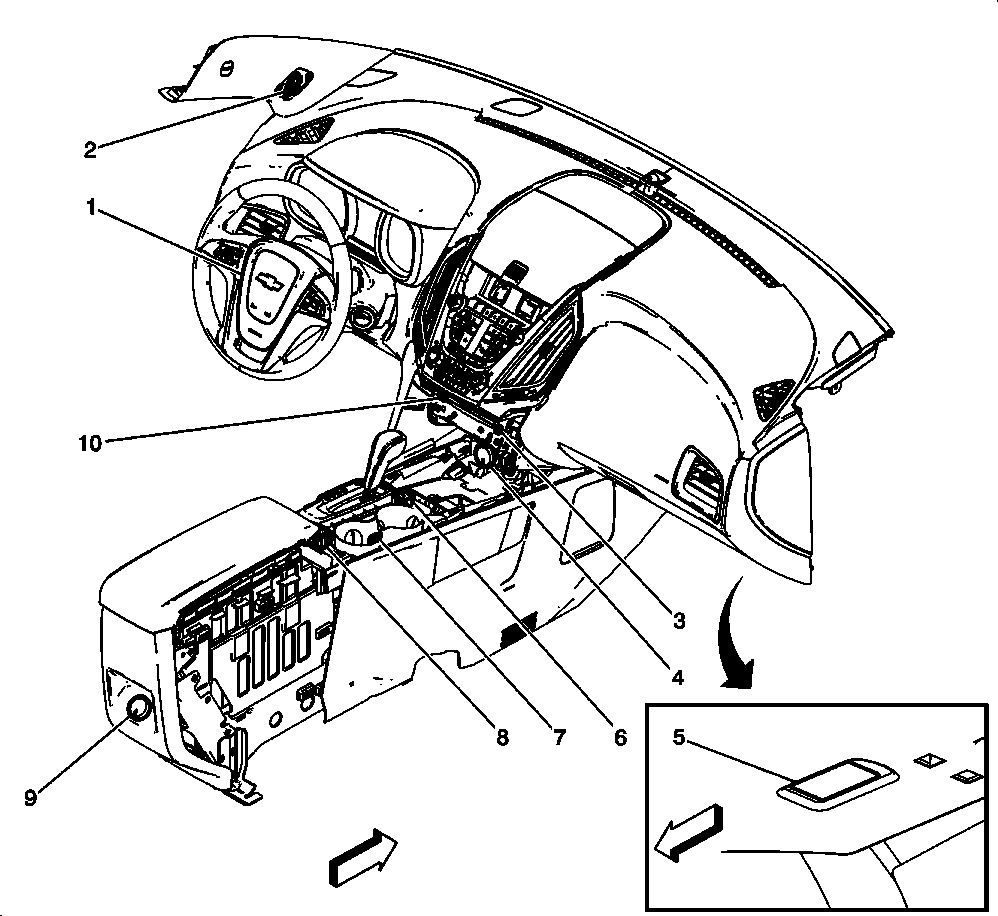

Fig 2: Identifying Right Side of the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	F107 Steering Wheel Air Bag
2	P19H Speaker - Left Front Tweeter
3	E1K Accent Lamp - Right Lower Instrument Panel
4	X80G Accessory Power Receptacle - Instrument Panel
5	E8K Instrument Panel Courtesy Lamp - Right (LTZ or SLT)
6	S112 Fuel Economy Mode Switch
7	E1S Accent Lamp - Console Cupholder Right
8	S75 Traction Control Switch
9	X80B Accessory Power Receptacle - Center Console 2
10	E1J Accent Lamp - Left Lower Instrument Panel

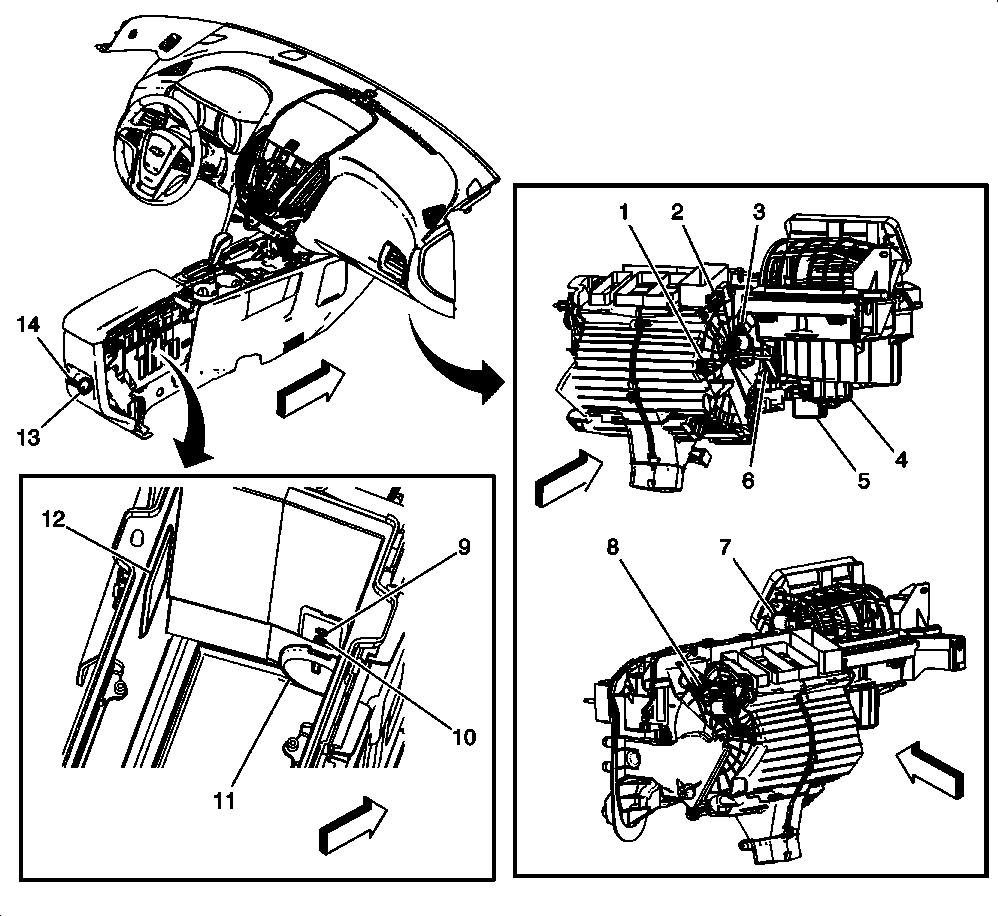

Fig 3: Identifying Right Side of Instrument Panel - Center Console and HVAC System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	B7E Air Temperature Sensor - Duct Right Lower
2	B7J Air Temperature Sensor - Duct Right Upper
3	M6 Air Temperature Door Actuator
4	M8 Blower Motor
5	K8 Blower Motor Control Module
6	B39 A/C Evaporator Temperature Sensor
7	M46 Air Recirculation Door Motor
8	M37 Mode Door Actuator
9	X83 Auxiliary Audio Input X1 (without UWG)
10	X83 Auxiliary Audio Input X2 (without UWG)
11	X80A Accessory Power Receptacle - Center Console 1
12	E28 Center Console Compartment Lamp (LT or LTZ or SLE2 or SLT)
13	X80B Accessory Power Receptacle - Center Console 2
14	X82 Audio/Video Input Adapter (UWG)

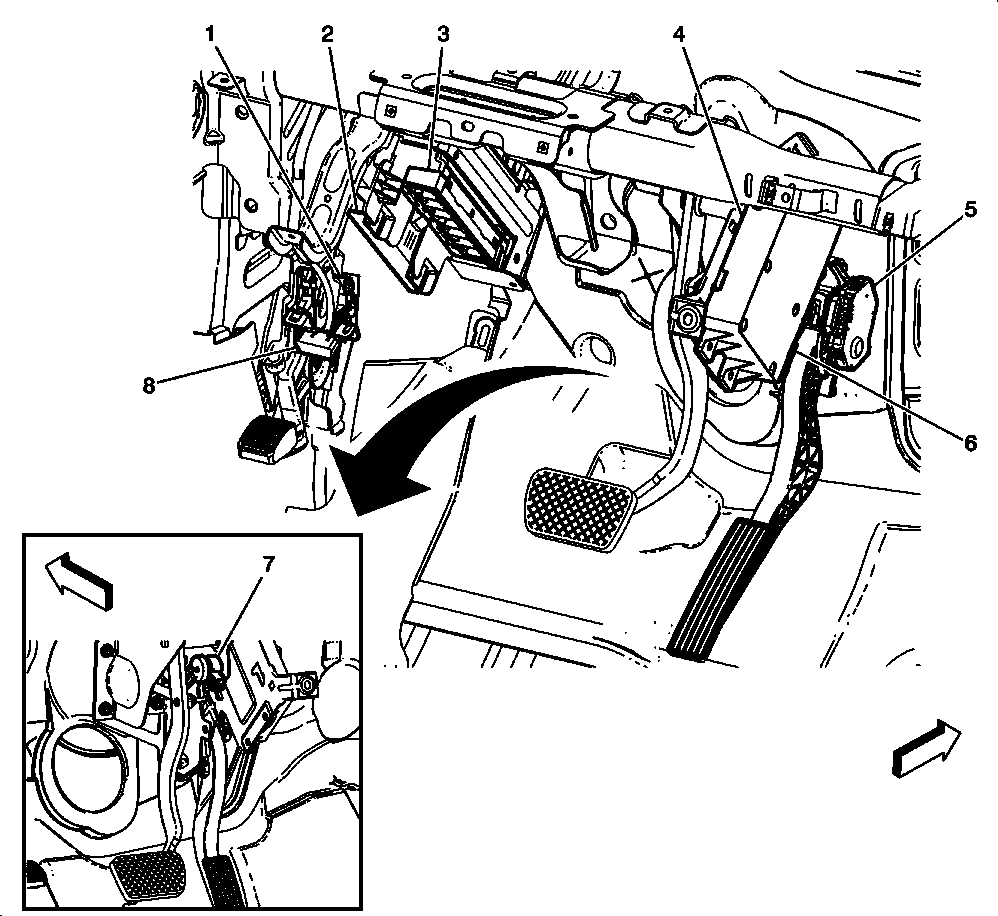

Fig 4: Identifying Lower Left of the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	B80 Park Brake Switch
2	T3 Audio Amplifier
3	K9 Body Control Module
4	K73 Telematics Communication Interface Control Module (UE1)
5	B107 Accelerator Pedal Position Sensor
6	T4S Wireless Communication Antenna - Bluetooth (UE1 with UPF)
7	B22 Brake Pedal Position Sensor
8	X84 Data Link Connector

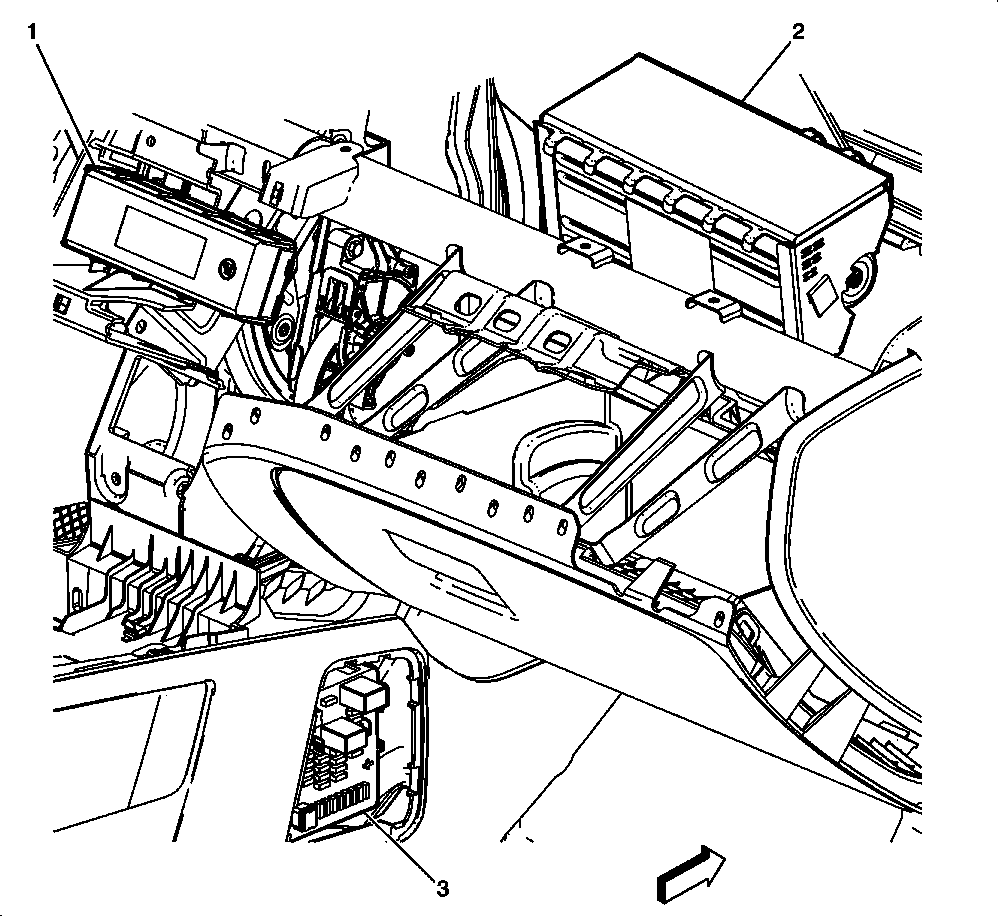

Fig 5: Identifying Lower Right of the Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	K33 HVAC Control Module
2	F105 Passenger Instrument Panel Air Bag
3	X51A Fuse Block - Instrument Panel

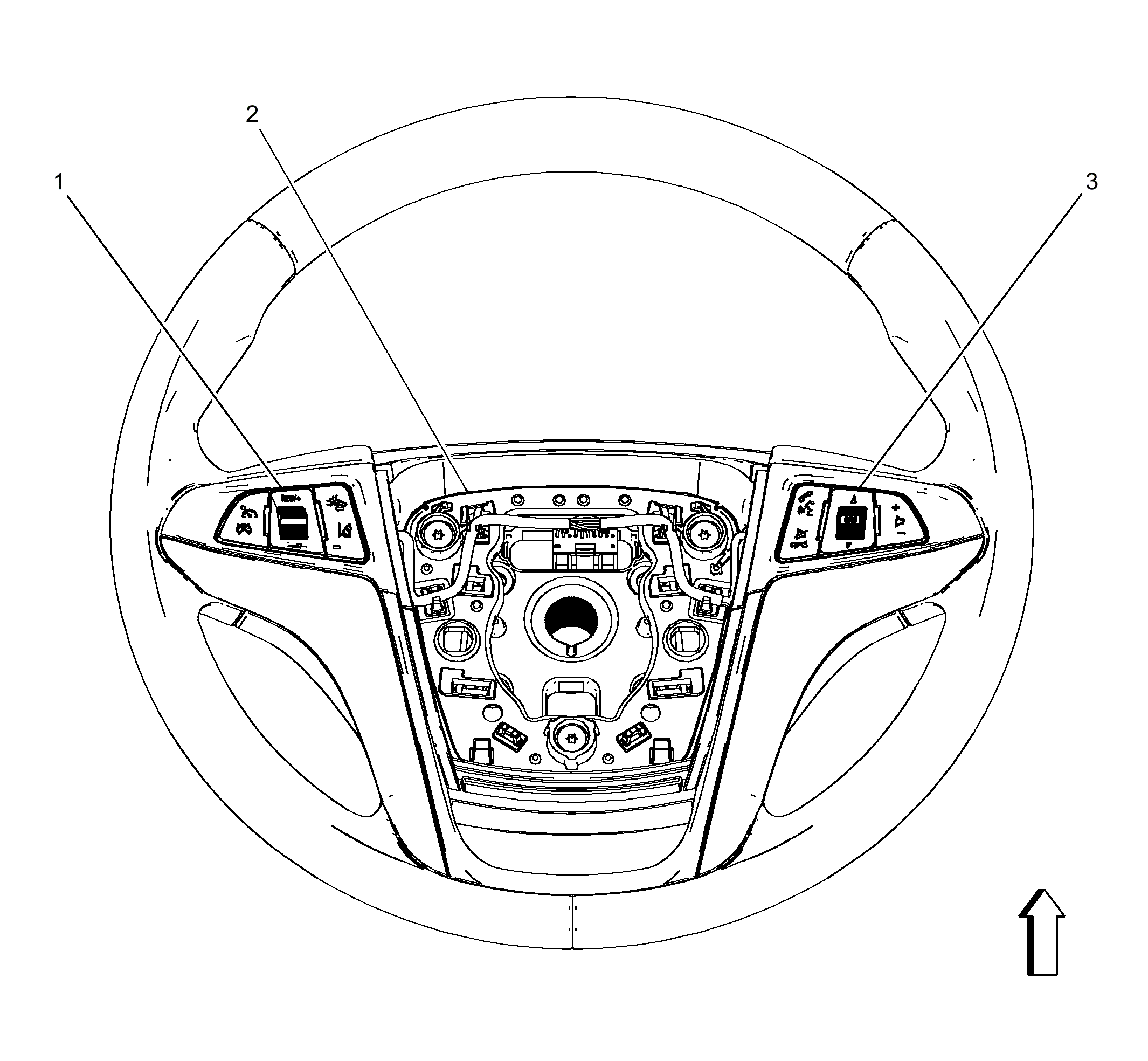

Fig 6: Identifying Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S70L Steering Wheel Controls Switch - Left
2	S33 Horn Switch
3	S70R Steering Wheel Controls Switch - Right

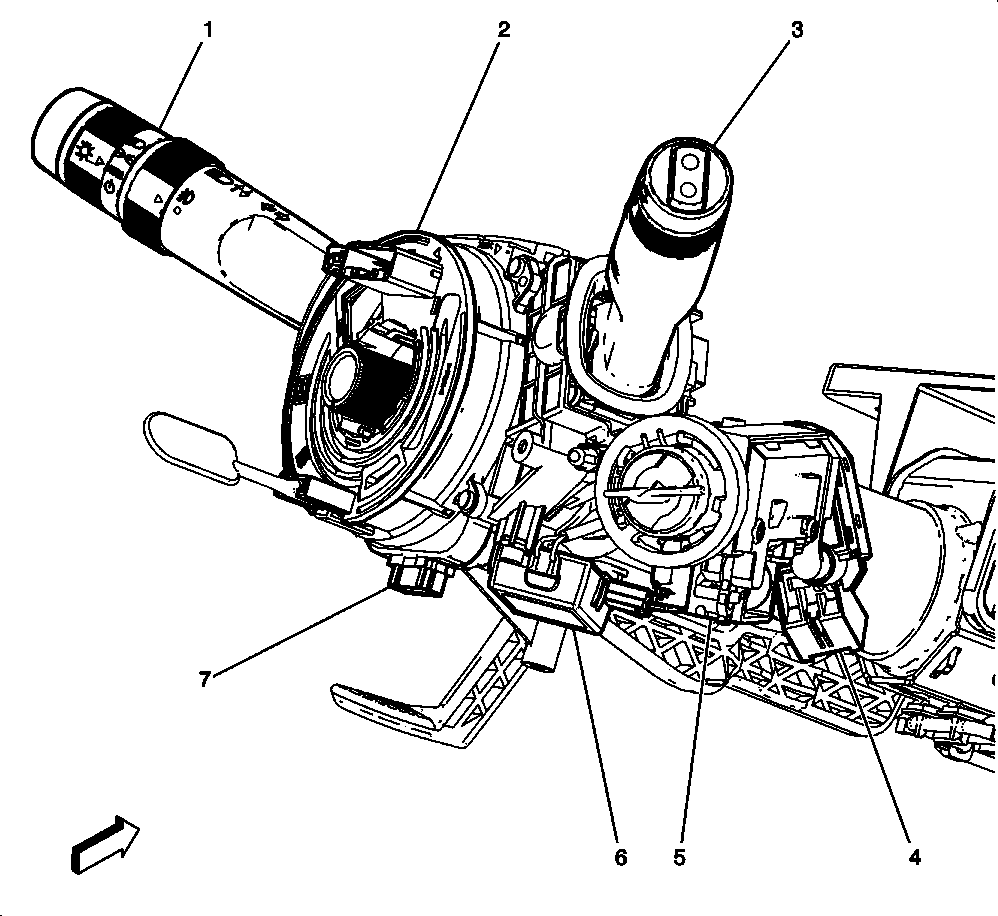

Fig 7: Identifying Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S78 Turn Signal/Multifunction Switch
2	X85 Steering Wheel Air Bag Coil
3	S82 Windshield Wiper/Washer Switch
4	S39 Ignition Switch
5	M93 Ignition Cylinder Lock Control Solenoid Actuator
6	B101 Immobilizer Antenna
7	B99 Steering Wheel Angle Sensor
